| 1 |
Electric parking brake switch, status |
42E |
| 1 |
Electric parking brake switch, status |
23D |
| 1 |
Electric parking brake switch, status |
42E |
| 10 |
Multifunction steering wheel button group, signal |
22J |
| 10 |
Multifunction steering wheel button group, signal |
25F |
| 10 |
Multifunction steering wheel button group, signal |
45C |
| 10 |
Multifunction steering wheel button group, signal |
25F |
| 12 |
Service brake, status |
10F |
| 12 |
Service brake, status |
16F |
| 13 |
Brake light switch, status |
45E |
| 14 |
Dynamometer mode, status |
21H |
| 14 |
Dynamometer mode, status |
40E |
| 15 |
Engine torque, reduce request |
10F |
| 15 |
Engine torque, reduce request |
16F |
| 16 |
Brake fluid level switch, status |
22J |
| 16 |
Brake fluid level switch, status |
40E |
| 16 |
Brake fluid level switch, status |
21D |
| 16 |
Brake fluid level switch, status |
22A |
| 17 |
Drivetrain operational, signal |
12F |
| 17 |
Drivetrain operational, signal |
17F |
| 17 |
Drivetrain operational, signal |
39E |
| 18 |
Seat belt buckle restraint system switch, status |
23G |
| 18 |
Seat belt buckle restraint system switch, status |
39H |
| 18 |
Seat belt buckle restraint system switch, status |
23D |
| 19 |
Steering assistance, request |
44J |
| 2 |
Steering wheel angle, signal |
44E |
| 20 |
Diagnosis, communication |
15H |
| 20 |
Diagnosis, communication |
19G |
| 20 |
Diagnosis, communication |
42F |
| 20 |
Diagnosis, communication |
25F |
| 21 |
Engine running, signal |
12F |
| 21 |
Engine running, signal |
17F |
| 21 |
Engine running, signal |
41F |
| 22 |
Downshift suppression, request |
4F |
| 22 |
Downshift suppression, request |
10F |
| 22 |
Downshift suppression, request |
16F |
| 27 |
Door rotary tumbler switch, status |
20D |
| 27 |
Door rotary tumbler switch, status |
15B |
| 27 |
Door rotary tumbler switch, status |
41F |
| 28 |
Service brake braking torque, request |
42G |
| 29 |
Trailer recognition, status |
20H |
| 29 |
Trailer recognition, status |
40F |
| 3 |
Wheel speed, signal |
21J |
| 3 |
Wheel speed, signal |
45H |
| 3 |
Wheel speed, signal |
24F |
| 31 |
Gear range, status |
6H |
| 31 |
Gear range, status |
11F |
| 31 |
Gear range, status |
16F |
| 31 |
Gear range, status |
40F |
| 32 |
Gear range "P", request |
4H |
| 32 |
Gear range "P", request |
10E |
| 32 |
Gear range "P", request |
17F |
| 32 |
Gear range "P", request |
16E |
| 33 |
Wiper status, signal |
22D |
| 33 |
Wiper status, signal |
40F |
| 34 |
Anti-lock braking system indicator lamp, actuation |
23K |
| 35 |
Electronic Stability Program warning lamp, actuation |
24K |
| 36 |
Brake system warning lamp, actuation |
24L |
| 37 |
Residual distance information, signal |
46G |
| 38 |
Speed, turn rate and lateral acceleration, signal |
42G |
| 39 |
ESP®/ASR OFF warning lamp, actuation |
17L |
| 4 |
Brake vacuum sensor, signal |
46F |
| 40 |
Brake fluid and parking brake indicator lamp, actuation |
18H |
| 42 |
Electric parking brake control unit, status |
23D |
| 42 |
Electric parking brake control unit, status |
39F |
| 43 |
AMG ESP Sport OFF button, status |
23E |
| 43 |
AMG ESP Sport OFF button, status |
38D |
| 43 |
AMG ESP Sport OFF button, status |
36A |
| 43 |
AMG ESP Sport OFF button, status |
33C |
| 43 |
AMG ESP Sport OFF button, status |
39F |
| 44 |
Light-emitting diode actuation |
33E |
| 44 |
Light-emitting diode actuation |
37E |
| 44 |
Light-emitting diode actuation |
38A |
| 44 |
Light-emitting diode actuation |
34A |
| 44 |
Light-emitting diode actuation |
26F |
| 5 |
Gear range, status |
6F |
| 5 |
Gear range, status |
13F |
| 5 |
Gear range, status |
18F |
| 5 |
Gear range, status |
41E |
| 6 |
Variant coding, signal |
41E |
| 6 |
Variant coding, signal |
21D |
| 7 |
Brake lights, request |
7B |
| 7 |
Brake lights, request |
9C |
| 7 |
Brake lights, request |
13D |
| 7 |
Brake lights, request |
6C |
| 7 |
Brake lights, request |
24F |
| 8 |
Accelerator pedal sensor, signal |
13F |
| 8 |
Accelerator pedal sensor, signal |
18F |
| 8 |
Accelerator pedal sensor, signal |
6D |
| 8 |
Accelerator pedal sensor, signal |
40E |
| 9 |
Instrument cluster, message |
22J |
| 9 |
Instrument cluster, message |
24F |

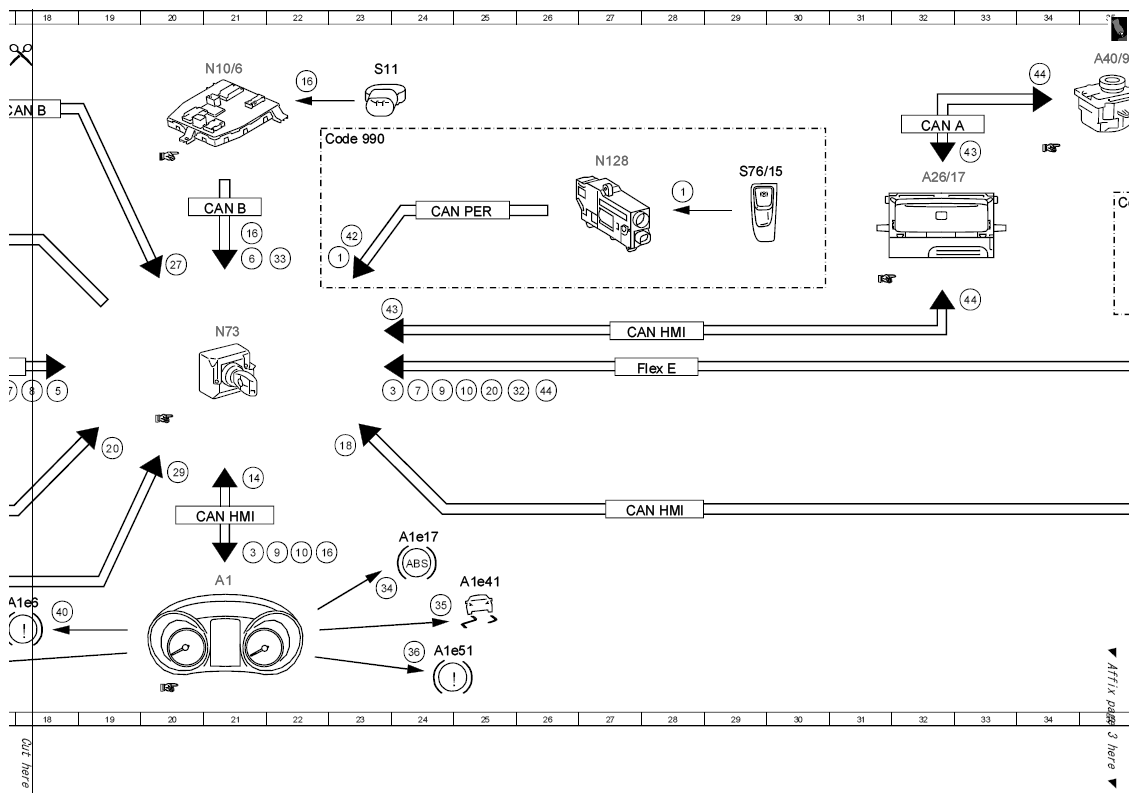

| A1 |
Instrument cluster |
21J |
| A1e17 |
Antilock brake system indicator lamp |
24J |
| A1e32 |
ESP®/ASR OFF warning lamp |
16K |
| A1e41 |
Electronic Stability Program warning lamp |
25J |
| A1e51 |
Brake system warning lamp |
24L |
| A1e6 |
Brake fluid and parking brake indicator lamp |
18K |
| A26/17 |
Head unit |
32C |
| A40/9 |
Audio/COMAND control panel |
35A |
| A7/3 |
Traction system hydraulic unit |
45G |
| A80 |
Intelligent servo module for DIRECT SELECT |
2H |
| A85/1s1 |
Right front door rotary tumbler switch |
12A |
| A85s1 |
Left front door rotary tumbler switch |
13A |
| A91m1 |
Electric power steering actuator motor |
42K |
| B37 |
Accelerator pedal sensor |
2D |
| B64/1 |
Brake vacuum sensor |
47F |
| CAN A |
Telematics CAN |
32B |
| CAN B |
Interior CAN |
21D |
| CAN B |
Interior CAN |
16K |
| CAN B |
Interior CAN |
16D |
| CAN B |
Interior CAN |
18B |
| CAN C |
Engine CAN |
12F |
| CAN C1 |
Drive train CAN |
5H |
| CAN C1 |
Drive train CAN |
5G |
| CAN D |
Diagnostic CAN |
16H |
| CAN H |
Vehicle dynamics CAN |
40G |
| CAN HMI |
User interface CAN |
21H |
| CAN HMI |
User interface CAN |
28H |
| CAN HMI |
User interface CAN |
28F |
| CAN PER |
Peripherals CAN |
17F |
| CAN PER |
Peripherals CAN |
24D |
| Code 235 |
Active Park Assist |
48G |
| Code 23P |
Driver assistance package PLUS |
36J |
| Code 550 |
Trailer hitch |
12J |
| Code 990 |
AMG vehicles |
22B |
| Code 990 |
AMG vehicles |
35C |
| Code 990 |
AMG vehicles |
38A |

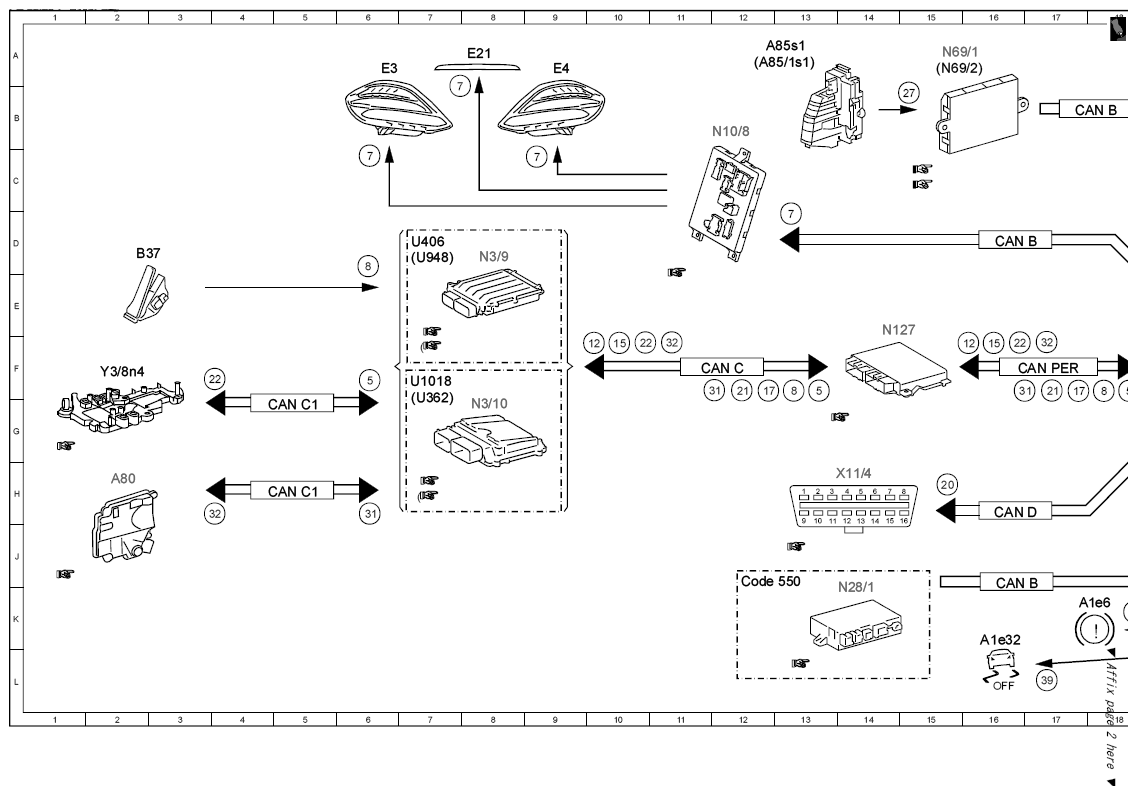

| E21 |
Center stop lamp |
8A |
| E3 |
Left rear lamp unit |
6A |
| E4 |
Right rear lamp unit |
9A |
| Flex E |
Chassis FlexRay |
28F |
| Flex E |
Chassis FlexRay |
43H |
| Flex E |
Chassis FlexRay |
40K |
| Flex E |
Chassis FlexRay |
43D |
| Flex E |
Chassis FlexRay |
46G |
| L6/1 |
Left front axle RPM sensor |
45K |
| L6/2 |
Right front axle RPM sensor |
45K |
| L6/3 |
Left rear axle RPM sensor |
45K |
| L6/4 |
Right rear axle RPM sensor |
45K |
| LIN A3 |
LCP LIN |
37B |
| LIN E1 |
Steering LIN |
46B |
| N10/6 |
Front SAM control unit |
21A |
| N10/8 |
Rear SAM control unit |
12B |
| N127 |
Drivetrain control unit |
14E |
| N128 |
Electric parking brake control unit |
27C |
| N135 |
Steering wheel electronics |
48C |
| N2/10 |
Supplemental restraint system control unit |
38H |
| N28/1 |
Trailer recognition control unit |
14K |
| N3/10 |
ME-SFI [ME] control unit |
8G |
| N3/9 |
CDI control unit |
8D |

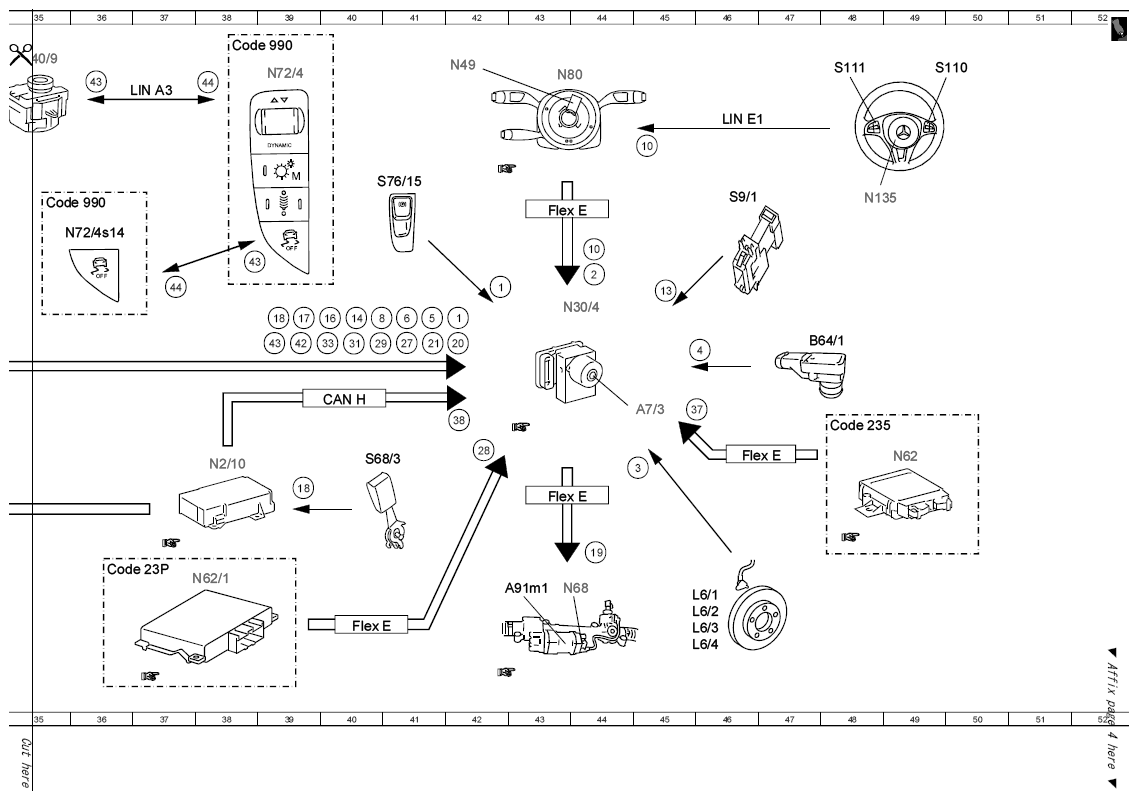

| N30/4 |
Electronic Stability Program control unit |
44E |
| N49 |
Steering wheel angle sensor |
42A |
| N62 |
Parking system control unit |
49G |
| N62/1 |
Radar sensors control unit |
38J |
| N68 |
Electrical power steering control unit |
43K |
| N69/1 |
Left front door control unit |
15A |
| N69/2 |
Right front door control unit |
15A |
| N72/4 |
Left lower control panel |
39A |
| N72/4s14 |
AMG ESP Sport OFF button |
36D |
| N73 |
Electronic ignition switch control unit |
21E |
| N80 |
Steering column module control unit |
43A |
| S11 |
Brake fluid level switch |
23A |
| S110 |
Left multifunction steering wheel button group |
49A |
| S111 |
Right multifunction steering wheel button group |
48A |
| S68/3 |
Driver seat belt buckle switch |
40H |
| S76/15 |
Electric parking brake switch |
41C |
| S76/15 |
Electric parking brake switch |
29C |
| S9/1 |
Stop lamp switch |
46C |
| U1018 |
Valid for gasoline engine 276 |
7F |
| U362 |
Valid for gasoline engine 274 |
7G |
| U406 |
Valid for diesel engine 626 |
7D |
| U948 |
Valid for diesel engine 651 |
7D |
| X11/4 |
Diagnostic connector |
14H |
| Y3/8n4 |
Fully integrated transmission control unit |
2F |
