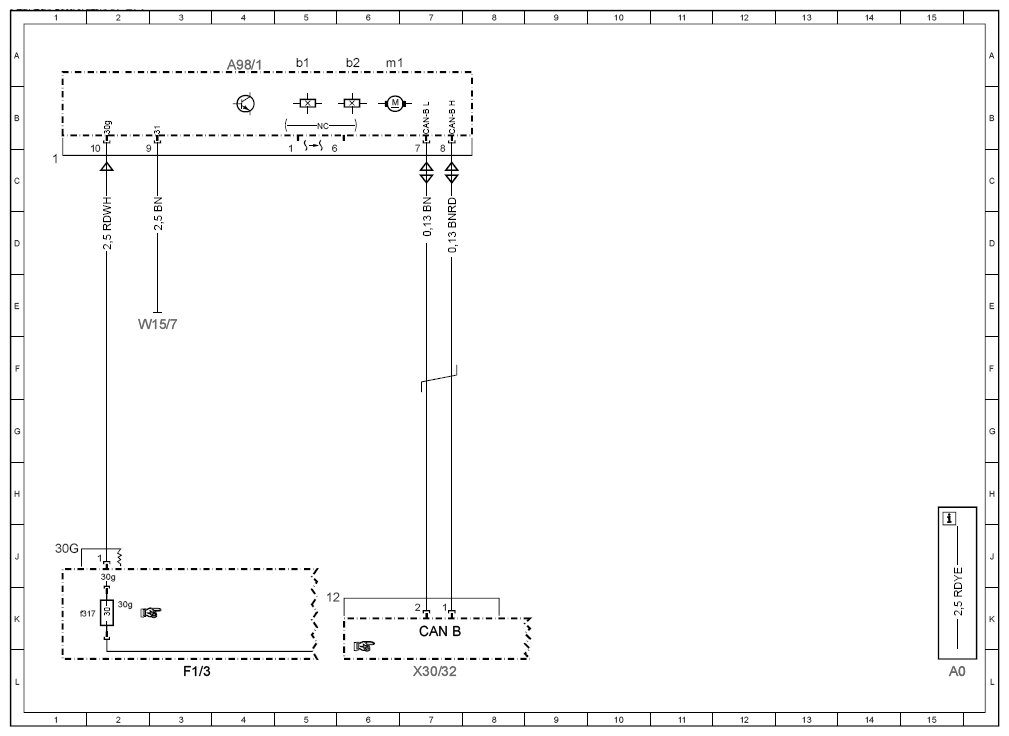

Wiring diagram for sliding roof control module - PE77.20-P-2103-97FBA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A98/1 | Sliding roof control module | 4A |
| A98/1b1 | Hall sensor 1, sliding roof | 5A |
| A98/1b2 | Hall sensor 2, sliding roof | 6A |
| A98/1m1 | Sliding roof motor | 6A |
| CAN B | Interior CAN | 7K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f317 | Fuse 317 | 1K |
| W15/7 | Right front footwell ground point | 2E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 7L |
