Use of wiring diagrams |
15L |
| A98 |

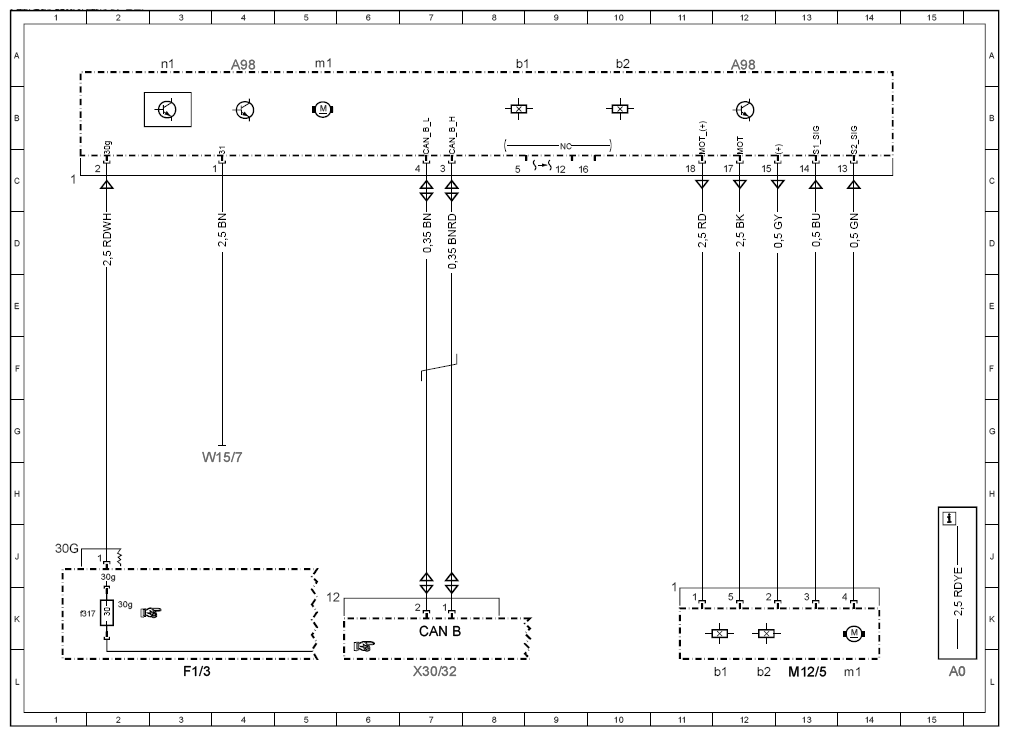

Panoramic sliding roof control module |
4A |
| A98 |
Panoramic sliding roof control module |
12A |
| A98b1 |
Hall sensor 1, panoramic sliding roof |
8A |
| A98b2 |
Hall sensor 2, panoramic sliding roof |
10A |
| A98m1 |
Panoramic sliding roof motor |
5A |
| A98n1 |
Panoramic sliding roof control unit |
3A |
| CAN B |
Interior CAN |
7K |
| F1/3 |
Right A-pillar fuse box |
3L |
| F1/3f317 |
Fuse 317 |
1K |
| M12/5 |
Panoramic sliding roof roller sun blind drive unit |
13L |
| M12/5b1 |
Hall sensor 1, panoramic sliding roof roller sun blind |
12L |
| M12/5b2 |
Hall sensor 2, panoramic sliding roof roller sun blind |
12L |
| M12/5m1 |
Panoramic sliding roof roller sun blind motor |
14L |
| W15/7 |
Right front footwell ground point |
4G |
| X30/32 |
Left interior CAN (CAN B) potential distributor electrical connector |
7L |
