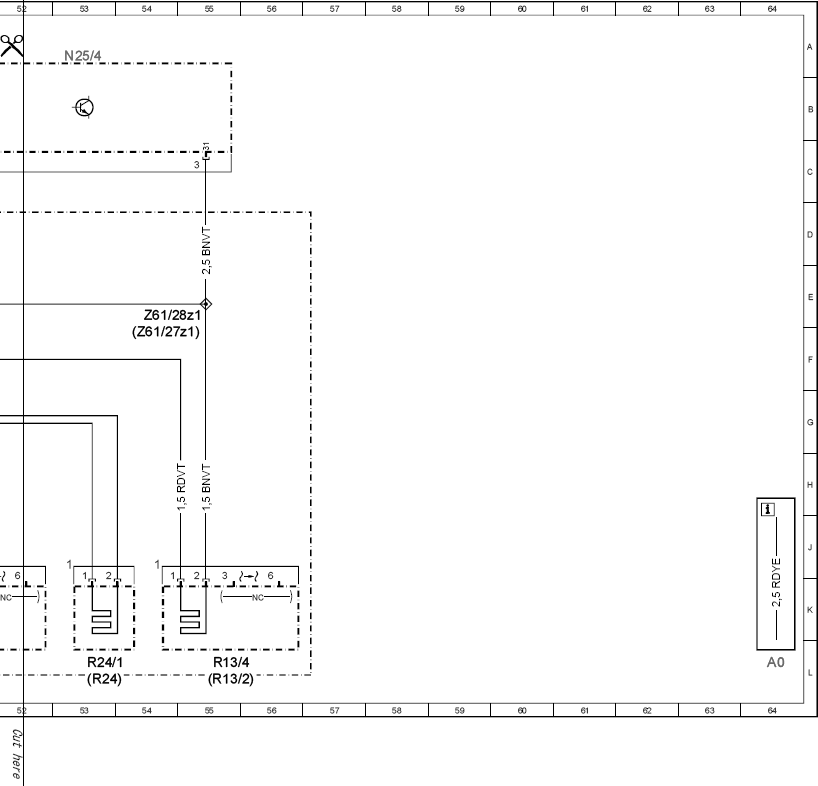

| A0 |
Use of wiring diagrams |
64L |

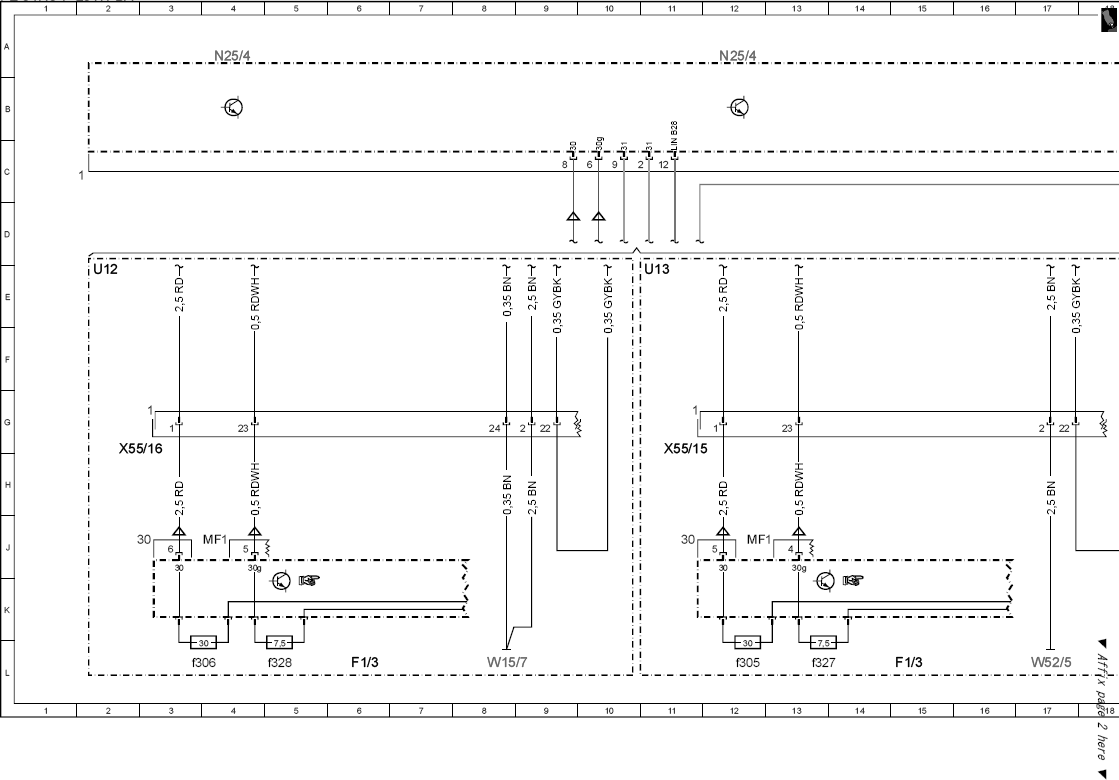

| F1/3 |
Right A-pillar fuse box |
6L |
| F1/3 |
Right A-pillar fuse box |
15L |
| F1/3f305 |
Fuse 305 |
12L |
| F1/3f306 |
Fuse 306 |
3L |
| F1/3f327 |
Fuse 327 |
13L |
| F1/3f328 |
Fuse 328 |
5L |

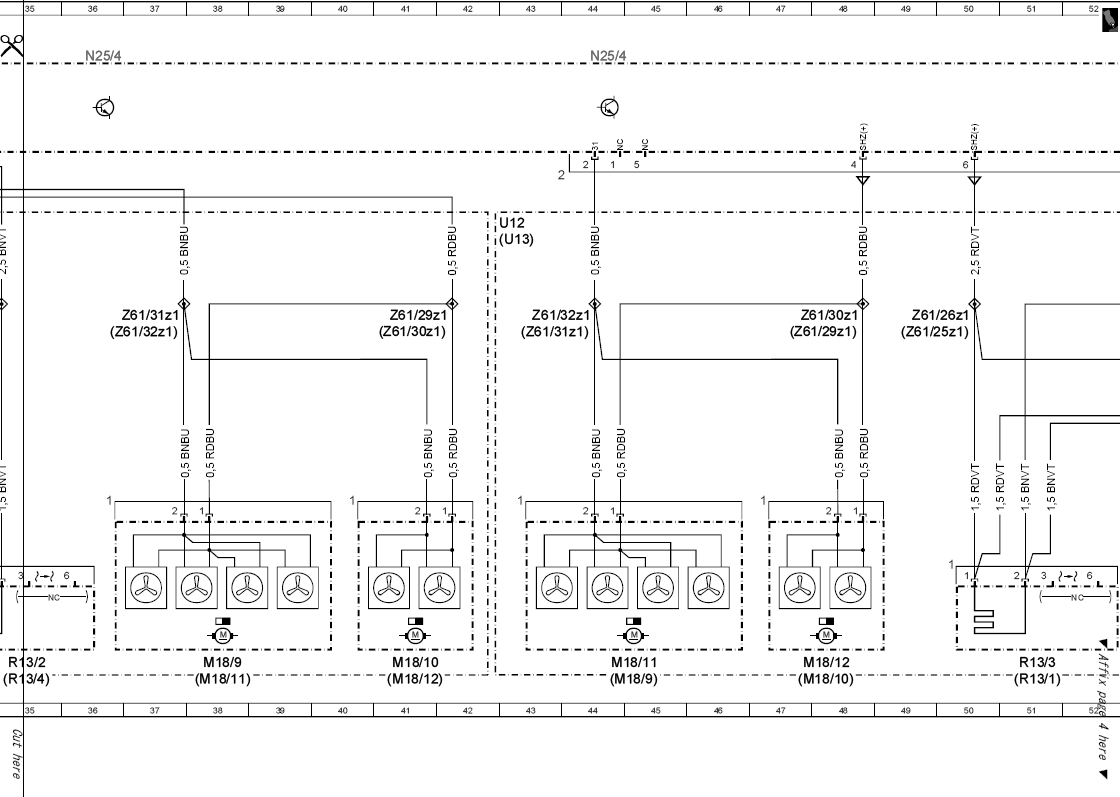

| M18/10 |
Left front backrest seat ventilation motors |
41L |
| M18/10 |
Left front backrest seat ventilation motors |
48L |
| M18/11 |
Right front seat cushion seat ventilation motors |
44L |
| M18/11 |
Right front seat cushion seat ventilation motors |
38L |
| M18/12 |
Right front backrest seat ventilation motors |
48L |
| M18/12 |
Right front backrest seat ventilation motors |
41L |
| M18/9 |
Left front seat cushion seat ventilation motors |
38L |
| M18/9 |
Left front seat cushion seat ventilation motors |
44L |

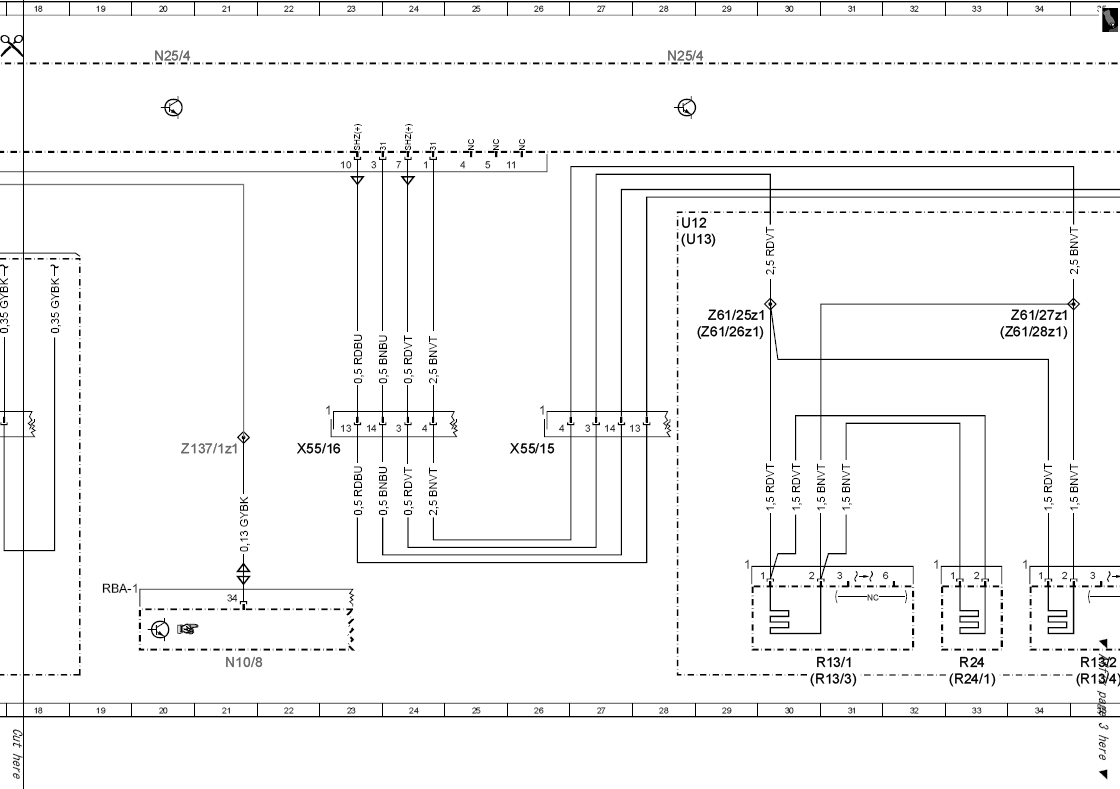

| N10/8 |
Rear SAM control unit |
21L |
| N25/4 |
Front passenger seat heater control unit |
44A |
| N25/4 |
Front passenger seat heater control unit |
4A |
| N25/4 |
Front passenger seat heater control unit |
12A |
| N25/4 |
Front passenger seat heater control unit |
20A |
| N25/4 |
Front passenger seat heater control unit |
28A |
| N25/4 |
Front passenger seat heater control unit |
36A |
| N25/4 |
Front passenger seat heater control unit |
53A |
| R13/1 |
Left front seat cushion heater pad |
31L |
| R13/1 |
Left front seat cushion heater pad |
51L |
| R13/2 |
Left front seat backrest heater pad |
35L |
| R13/2 |
Left front seat backrest heater pad |
55L |
| R13/3 |
Right front seat cushion heater pad |
51L |
| R13/3 |
Right front seat cushion heater pad |
31L |
| R13/4 |
Right front seat backrest heater pad |
55L |
| R13/4 |
Right front seat backrest heater pad |
35L |
| R24 |
Adjustable seat cushion length heater pad, left front seat |
33L |
| R24 |
Adjustable seat cushion length heater pad, left front seat |
53L |
| R24/1 |
Adjustable seat cushion length heater pad, right front seat |
53L |
| R24/1 |
Adjustable seat cushion length heater pad, right front seat |
33L |
| U12 |
Valid for left-hand drive vehicles |
2E |
| U12 |
Valid for left-hand drive vehicles |
28D |
| U12 |
Valid for left-hand drive vehicles |
43D |
| U13 |
Valid for right-hand drive vehicles |
11E |
| U13 |
Valid for right-hand drive vehicles |
28D |
| U13 |
Valid for right-hand drive vehicles |
43D |
| W15/7 |
Right front footwell ground point |
8L |
| W52/5 |
Left center longitudinal member ground point |
17L |
| X55/15 |
Left seat separation point |
26H |
| X55/15 |
Left seat separation point |
11H |
| X55/16 |
Right seat separation point |
23H |
| X55/16 |
Right seat separation point |
3H |
| Z137/1z1 |
Connector sleeve, heater LIN |
21H |
| Z61/25z1 |
Driver seat heater supply connector sleeve |
29E |
| Z61/25z1 |
Driver seat heater supply connector sleeve |
49F |
| Z61/26z1 |
Front passenger seat heater supply connector sleeve |
50E |
| Z61/26z1 |
Front passenger seat heater supply connector sleeve |
29F |
| Z61/27z1 |
Driver seat heater ground connection connector sleeve |
34E |
| Z61/27z1 |
Driver seat heater ground connection connector sleeve |
54F |
| Z61/28z1 |
Front passenger seat heater ground connection connector sleeve |
54E |
| Z61/28z1 |
Front passenger seat heater ground connection connector sleeve |
34F |
| Z61/29z1 |
Driver seat ventilation supply connector sleeve |
41E |
| Z61/29z1 |
Driver seat ventilation supply connector sleeve |
48F |
| Z61/30z1 |
Front passenger seat ventilation supply connector sleeve |
48E |
| Z61/30z1 |
Front passenger seat ventilation supply connector sleeve |
41F |
| Z61/31z1 |
Driver seat ventilation ground connection connector sleeve |
37E |
| Z61/31z1 |
Driver seat ventilation ground connection connector sleeve |
43F |
| Z61/32z1 |
Front passenger seat ventilation ground connection connector sleeve |
43E |
| Z61/32z1 |
Front passenger seat ventilation ground connection connector sleeve |
37F |
