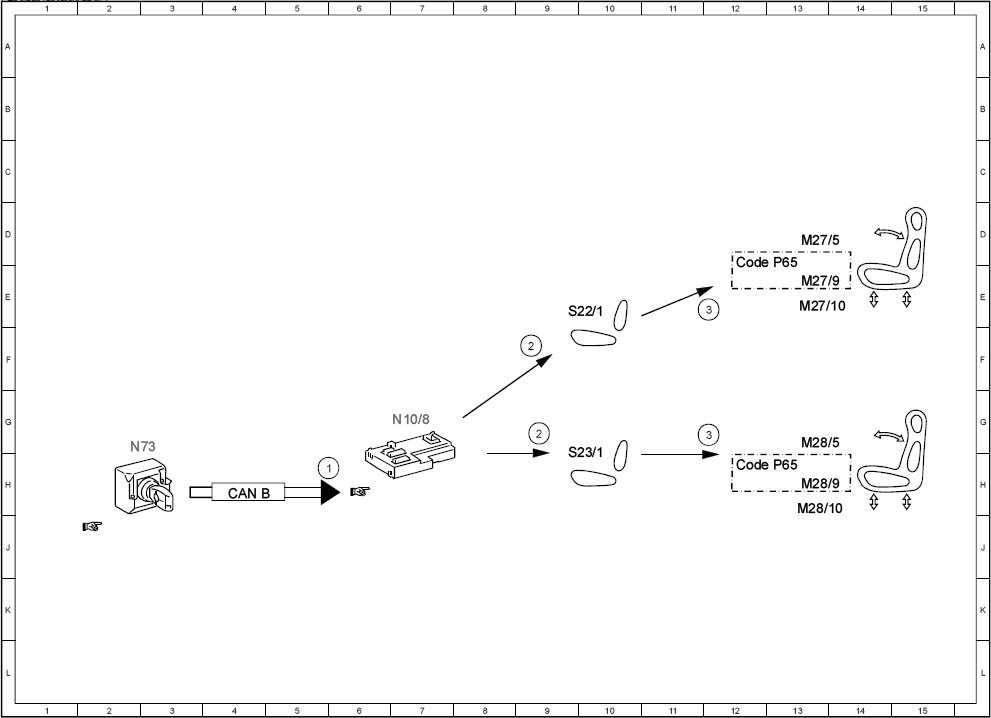

| 1 |
Circuit 15, status |
5H |
| 2 |
Power supply, status ON |
9G |
| 2 |
Power supply, status ON |
9F |
| 3 |
Seat adjustment motor, actuation |
12G |
| 3 |
Seat adjustment motor, actuation |
12E |
| CAN B |
Interior CAN |
4H |
| Code P65 |
Seating comfort package |
12H |
| Code P65 |
Seating comfort package |
12E |
| M27/10 |
Driver seat height adjustment motor |
13E |
| M27/5 |
Driver seat backrest inclination adjustment motor |
13D |
| M27/9 |
Seat inclination adjustment motor, driver seat |
13E |
| M28/10 |
Front passenger seat height adjustment motor |
13H |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
13G |
| M28/9 |
Seat inclination adjustment motor, front passenger seat |
13H |
| N10/8 |
Rear SAM control unit |
7G |
| N73 |
Electronic ignition switch control unit |
2G |
| S22/1 |
Driver seat partially electric seat adjustment switch |
9E |
| S23/1 |
Front passenger seat partially electric seat adjustment switch |
9H |
