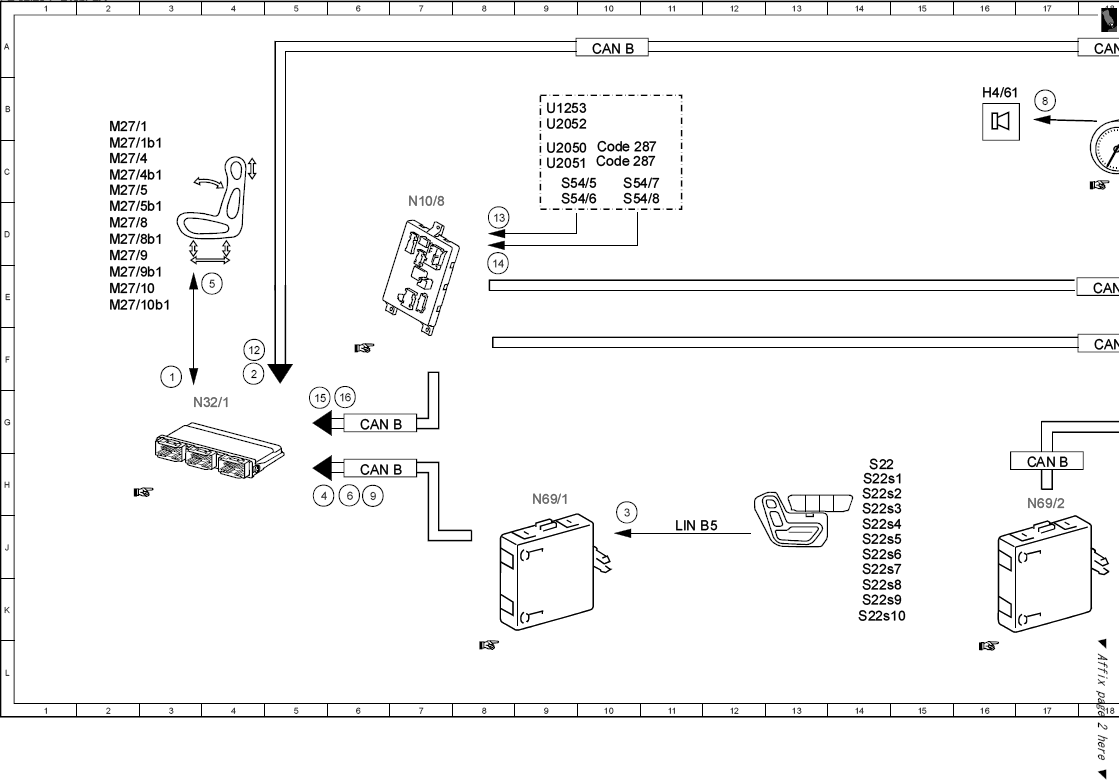

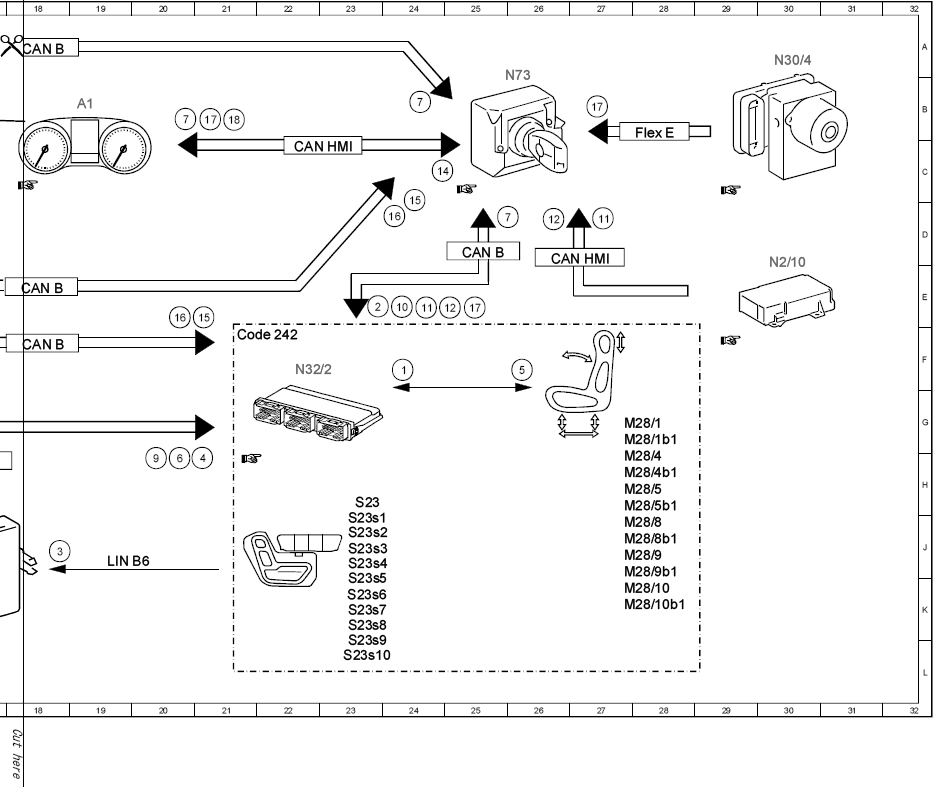

| 1 |
Hall sensors, signal |
3F |
| 1 |
Hall sensors, signal |
24F |
| 10 |
Front passenger seat occupied recognition, status |
24E |
| 11 |
Seat belt buckle switch, status |
27D |
| 11 |
Seat belt buckle switch, status |
24E |
| 12 |
Front passenger seat occupied recognition, status |
4F |
| 13 |
Rear passenger compartment backrest inclination switch, status |
8D |
| 14 |
Rear backrest lock switch, status |
8E |
| 15 |
Rear backrest locking, status |
5G |
| 15 |
Rear backrest locking, status |
24D |
| 15 |
Rear backrest locking, status |
21E |
| 16 |
Backrest inclination in rear, status |
6G |
| 16 |
Backrest inclination in rear, status |
24D |
| 16 |
Backrest inclination in rear, status |
20E |
| 17 |
Adjust PRE-SAFE®, request |
21B |
| 17 |
Adjust PRE-SAFE®, request |
27B |
| 18 |
Backrest inclination in rear, status |
21B |
| 2 |
Circuit 15, status |
4F |
| 2 |
Circuit 15, status |
23E |
| 3 |
Seat adjustment switch group, status |
10J |
| 3 |
Seat adjustment switch group, status |
18J |
| 4 |
Manual adjustment, request |
5H |
| 4 |
Manual adjustment, request |
21H |
| 5 |
Seat adjustment motor, actuation |
4E |
| 5 |
Seat adjustment motor, actuation |
26F |
| 6 |
Store memory position, request |
6H |
| 6 |
Store memory position, request |
20H |
| 7 |
Acknowledgment tone after memory positions stored successfully, request |
20B |
| 7 |
Acknowledgment tone after memory positions stored successfully, request |
25D |
| 7 |
Acknowledgment tone after memory positions stored successfully, request |
24B |
| 8 |
Speaker, actuation |
17B |
| 9 |
Adopt memory position, request |
6H |
| 9 |
Adopt memory position, request |
20H |
| A1 |
Instrument cluster |
19B |
| CAN B |
Interior CAN |
17H |
| CAN B |
Interior CAN |
6H |
| CAN B |
Interior CAN |
25D |
| CAN B |
Interior CAN |
18A |
| CAN B |
Interior CAN |
10A |
| CAN B |
Interior CAN |
6G |
| CAN B |
Interior CAN |
18E |
| CAN B |
Interior CAN |
18F |
| CAN HMI |
User interface CAN |
22C |
| CAN HMI |
User interface CAN |
26D |
| Code 242 |
All-electric front passenger seat with memory (right) |
21F |
| Code 287 |
Through-loading feature |
10C |
| Code 287 |
Through-loading feature |
10C |
| Flex E |
Chassis FlexRay |
28B |
| H4/61 |
Instrument cluster speaker |
16B |
| LIN B5 |
Left front door LIN |
11J |
| LIN B6 |
Right front door LIN |
19J |
| M27/1 |
Driver seat fore/aft adjustment motor |
2B |
| M27/10 |
Driver seat height adjustment motor |
2E |
| M27/10b1 |
Driver seat, seat height adjustment Hall sensor, |
2E |
| M27/1b1 |
Seat fore/aft adjustment Hall sensor, driver seat |
2C |
| M27/4 |
Driver seat head restraint adjustment motor |
2C |
| M27/4b1 |
Head restraint adjustment Hall sensor, driver seat |
2C |
| M27/5 |
Driver seat backrest inclination adjustment motor |
2C |
| M27/5b1 |
Backrest inclination Hall sensor, driver seat |
2D |
| M27/8 |
Seat cushion length adjustment motor, driver seat |
2D |
| M27/8b1 |
Seat cushion length adjustment Hall sensor, driver seat |
2D |
| M27/9 |
Seat inclination adjustment motor, driver seat |
2D |
| M27/9b1 |
Seat inclination adjustment Hall sensor, driver seat |
2E |
| M28/1 |
Front passenger seat fore/aft adjustment motor |
27G |
| M28/10 |
Front passenger seat height adjustment motor |
27K |
| M28/10b1 |
Front passenger seat, seat height adjustment Hall sensor, |
27K |
| M28/1b1 |
Seat fore/aft adjustment Hall sensor, front passenger seat |
27G |
| M28/4 |
Front passenger seat head restraint adjustment motor |
27H |
| M28/4b1 |
Head restraint adjustment Hall sensor, front passenger seat |
27H |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
27H |
| M28/5b1 |
Backrest inclination Hall sensor, front passenger seat |
27H |
| M28/8 |
Seat cushion length adjustment motor, front passenger seat |
27J |
| M28/8b1 |
Seat cushion length adjustment Hall sensor, front passenger seat |
27J |
| M28/9 |
Seat inclination adjustment motor, front passenger seat |
27J |
| M28/9b1 |
Seat inclination adjustment Hall sensor, front passenger seat |
27J |
| N10/8 |
Rear SAM control unit |
7D |
| N2/10 |
Supplemental restraint system control unit |
30E |
| N30/4 |
Electronic Stability Program control unit |
30A |
| N32/1 |
Driver seat control unit |
3G |
| N32/2 |
Front passenger seat control unit |
22F |
| N69/1 |
Left front door control unit |
9H |
| N69/2 |
Right front door control unit |
17H |
| N73 |
Electronic ignition switch control unit |
25B |
| S22 |
Left front seat adjustment switch group |
14H |
| S22s1 |
Left front head restraint adjustment switch |
14H |
| S22s10 |
Left front memory 3 switch |
14K |
| S22s2 |
Left front seat inclination adjustment switch |
14H |
| S22s3 |
Left front seat fore/aft adjustment switch |
14H |
| S22s4 |
Left front seat height adjustment switch |
14J |
| S22s5 |
Left front backrest adjustment switch |
14J |
| S22s6 |
Left front seat cushion length switch |
14J |
| S22s7 |
Left front memory function switch |
14J |
| S22s8 |
Left front memory 1 switch |
14K |
| S22s9 |
Left front memory 2 switch |
14K |
| S23 |
Right front seat adjustment switch group |
23H |
| S23s1 |
Right front head restraint adjustment switch |
23J |
| S23s10 |
Right front memory 3 switch |
23L |
| S23s2 |
Right front seat inclination adjustment switch |
23J |
| S23s3 |
Right front seat fore/aft adjustment switch |
23J |
| S23s4 |
Right front seat height adjustment switch |
23J |
| S23s5 |
Right front backrest adjustment switch |
23K |
| S23s6 |
Right front seat cushion length switch |
23K |
| S23s7 |
Right front memory function switch |
23K |
| S23s8 |
Right front memory 1 switch |
23K |
| S23s9 |
Right front memory 2 switch |
23L |
| S54/5 |
Left rear backrest inclination switch |
9C |
| S54/6 |
Right rear backrest inclination switch |
9D |
| S54/7 |
Left rear backrest lock switch |
10C |
| S54/8 |
Right rear backrest lock switch |
10D |
| U1253 |
Valid for model 253 |
9B |
| U2050 |
Valid for model 205.0 |
9C |
| U2051 |
Valid for model 205.1 |
9C |
| U2052 |
Valid for model 205.2 |
9B |
