| 1 |
Circuit 15, status |
16C |
| 2 |
Seat climate control switch group, status |
9J |
| 2 |
Seat climate control switch group, status |
14F |
| 2 |
Seat climate control switch group, status |
18F |
| 2 |
Seat climate control switch group, status |
23J |
| 3 |
Seat heater, request |
21F |
| 3 |
Seat heater, request |
21D |
| 3 |
Seat heater, request |
11F |
| 3 |
Seat heater, request |
11D |
| 3 |
Seat heater, request |
16J |
| 4 |
Seat heater, actuation |
26E |
| 4 |
Seat heater, actuation |
5E |
| 4 |
Seat heater, actuation |
4G |
| 4 |
Seat heater, actuation |
29G |
| 5 |
Seat heater, status |
18F |
| 5 |
Seat heater, status |
18D |
| 5 |
Seat heater, status |
13F |
| 5 |
Seat heater, status |
13D |
| 5 |
Seat heater, status |
12K |
| 5 |
Seat heater, status |
20K |
| 5 |
Seat heater, status |
7J |
| 5 |
Seat heater, status |
25K |
| 5 |
Seat heater, status |
16G |
| 6 |
Interior temperature, signal |
16C |
| CAN B |
Interior CAN |
20G |
| CAN B |
Interior CAN |
12G |
| CAN B |
Interior CAN |
13J |
| CAN B |
Interior CAN |
19J |
| CAN B |
Interior CAN |
11B |
| CAN B |
Interior CAN |
21B |

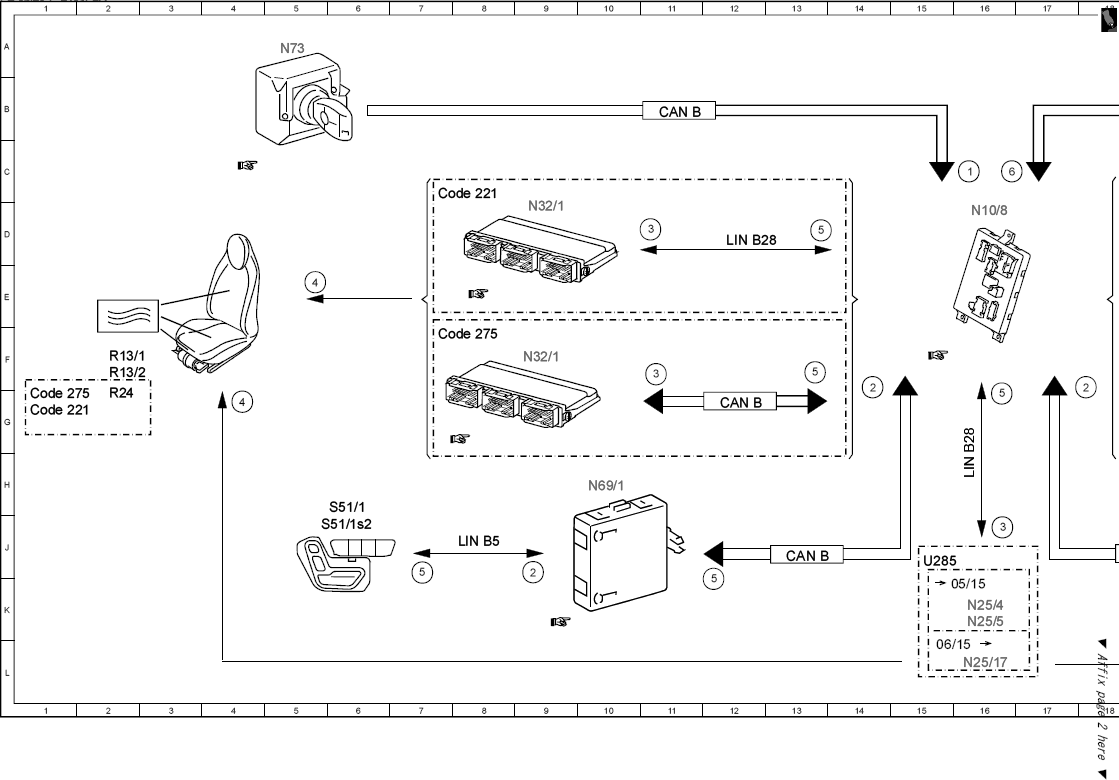

| Code 221 |
Fully electric driver seat adjustment without memory without electric head restraint adjustment |
7C |
| Code 221 |
Fully electric driver seat adjustment without memory without electric head restraint adjustment |
1G |

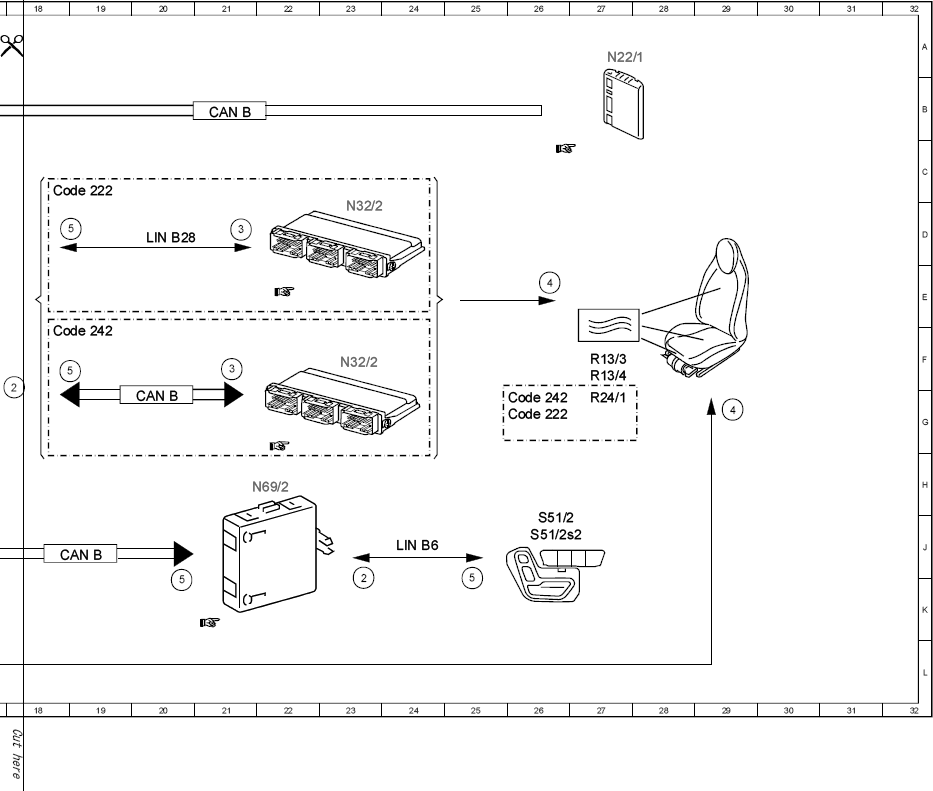

| Code 222 |
Electrically adjustable right front seat |
18C |
| Code 222 |
Electrically adjustable right front seat |
26G |
| Code 242 |
All-electric front passenger seat with memory (right) |
18F |
| Code 242 |
All-electric front passenger seat with memory (right) |
26G |
| Code 275 |
Memory package |
7F |
| Code 275 |
Memory package |
1G |
| LIN B28 |
Heater LIN |
20D |
| LIN B28 |
Heater LIN |
12D |
| LIN B28 |
Heater LIN |
16G |
| LIN B5 |
Left front door LIN |
8J |
| LIN B6 |
Right front door LIN |
24J |
| N10/8 |
Rear SAM control unit |
16D |
| N22/1 |
Climate control unit |
27A |
| N25/17 |
Front seat heater control unit |
16L |
| N25/4 |
Front passenger seat heater control unit |
16K |
| N25/5 |
Driver seat heater control unit |
16K |
| N32/1 |
Driver seat control unit |
9F |
| N32/1 |
Driver seat control unit |
9D |
| N32/2 |
Front passenger seat control unit |
23D |
| N32/2 |
Front passenger seat control unit |
23F |
| N69/1 |
Left front door control unit |
10H |
| N69/2 |
Right front door control unit |
22H |
| N73 |
Electronic ignition switch control unit |
5A |
| R13/1 |
Left front seat cushion heater pad |
2F |
| R13/2 |
Left front seat backrest heater pad |
2F |
| R13/3 |
Right front seat cushion heater pad |
27F |
| R13/4 |
Right front seat backrest heater pad |
27F |
| R24 |
Adjustable seat cushion length heater pad, left front seat |
2G |
| R24/1 |
Adjustable seat cushion length heater pad, right front seat |
27G |
| S51/1 |
Driver seat climate control switch group |
6H |
| S51/1s2 |
Left front seat heater switch |
6J |
| S51/2 |
Front passenger seat climate control switch group |
26J |
| S51/2s2 |
Right front seat heater switch |
26J |
| U285 |
Valid for partially electric seat adjustment unit |
15J |
