Remove/install door frame seal on rear door - AR72.12-P-1015LW

Model 205.0/1/2

Model 253

Shown on model 205.0

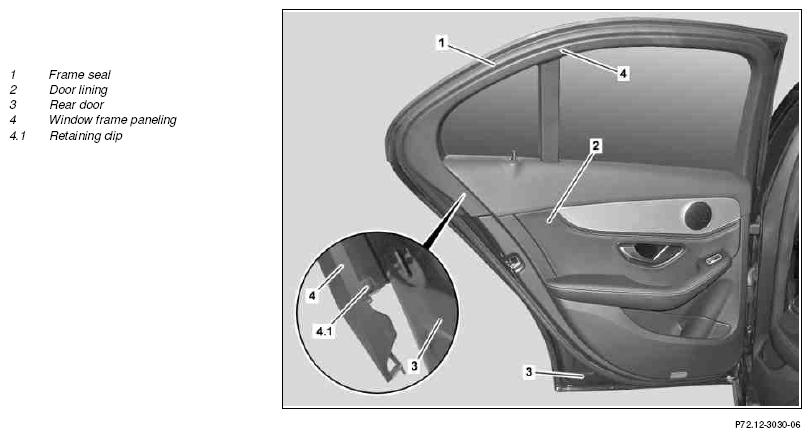

Fig 1: Identifying Rear Door Frame Seal Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove
1	Remove door lining (2) from rear door (3)		AR72.12-P-1010LW
2	Remove window frame paneling (4)	The window frame paneling (4) is fastened positively to the window frame and additionally clipped into the window frame with a retaining clip (4.1).
3	Remove sealing frame (1) from rear door (3)
4	Remove glue residues from rear door (3) using adhesive removal disc and clean bonding surface
	Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks		AH00.00-P-0013-01AK
		Bonding surface must be free of grease and dust. Use commercially available ø 100 mm adhesive removal disc.
		Cleaner	*BR00.45-Z-1025-04A
	Install
5	Glue sealing frame (1) to rear door (3)	Model 205.0 except code 700 (Technology Local Content China) Model 205.2	AR72.12-P-1015-01LW
		Model 205.0 with code 700 (Technology Local Content China) Model 205.1 Model 253	AR72.12-P-1015-01LWA
		Model 205.0 except code 700 (Technology Local Content China) Model 205.2 Template	Fig 3
		Roller	Figure
6	Install window frame paneling (4) on window frame
7	Install door lining (2) on rear door (3)		AR72.12-P-1010LW

Fig 2: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Template (205 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
