Remove/install front seat heat restraint motor - AR91.29-P-1432LW
Model 205.0/1/2/3, 253 with code 275 (Driver's seat, electrically adjustable with memory function) except code 555 (AMG Performance seats)
Model 205.0/2/3, 253 with code 241 (Memory switch for electrically adjustable driver seat, left) except code 555 (AMG Performance seats)
Model 205.0/2/3, 253 with code 242 (Front passenger seat, electrically adjustable with memory function) except code 555 (AMG Performance seats)
Shown on MODEL 205.0
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left or right head restraint at front seat | AR91.16-P-0040LW | |

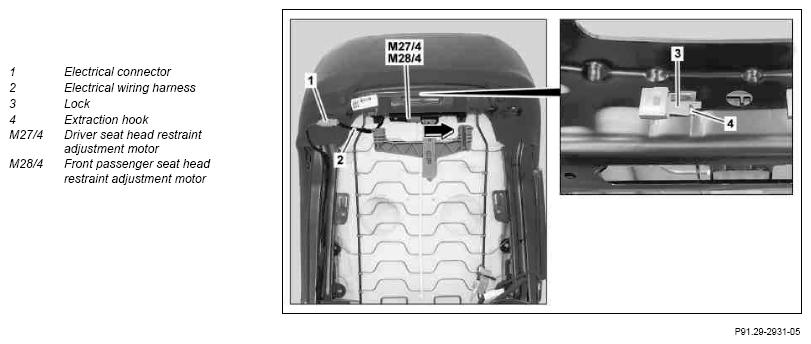

| 2 | Disconnect electrical connector (1) | ||
| 3 | Expose electrical wiring harness (2) | ||
| 4 | Release lock (3) with extraction hook (4), slide seat adjustment motor for head restraint adjustment on driver seat (M27/4) or seat adjustment motor for head restraint adjustment on front passenger seat (M28/4) in direction of arrow and remove | Fig 2 | |
| 5 | Install in the reverse order |
