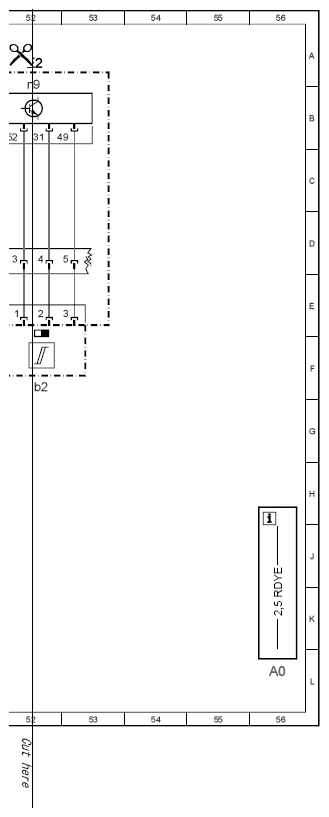

| A0 |
Use of wiring diagrams |
56L |
| CAN PER |
Peripherals CAN |
26K |

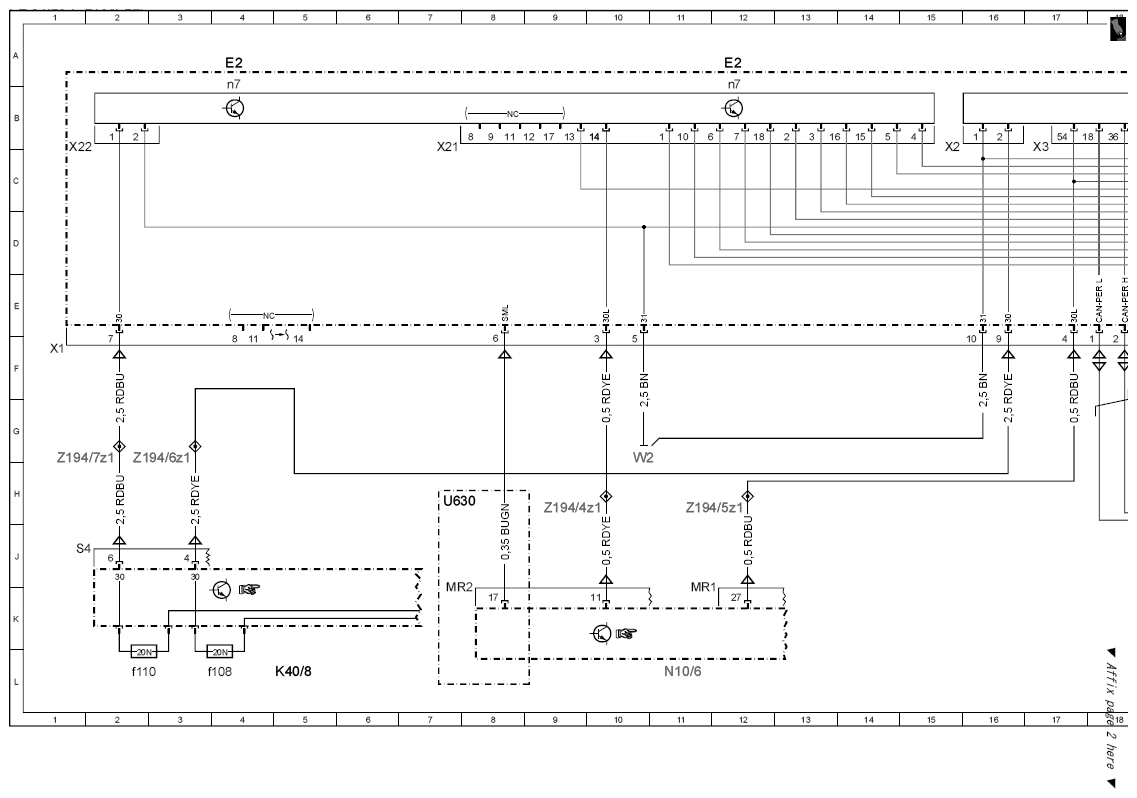

| E2 |
Right front lamp unit |
4A |
| E2 |
Right front lamp unit |
20A |

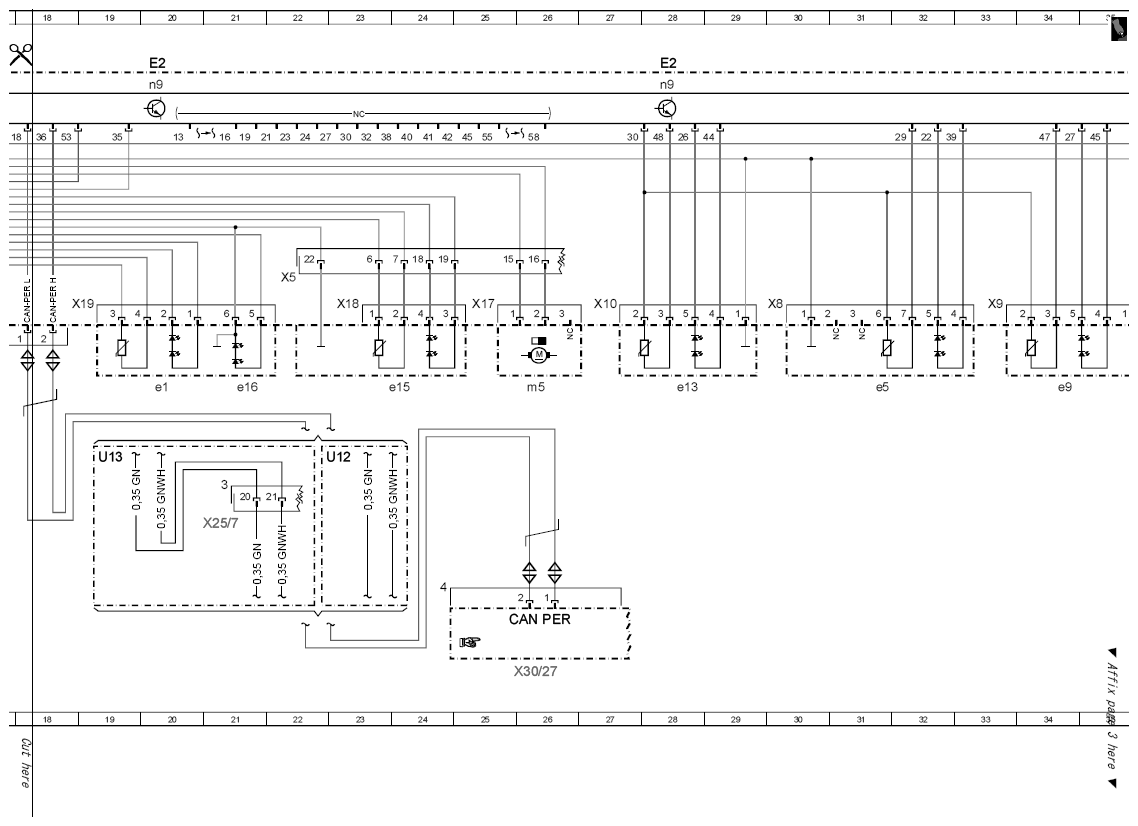

| E2 |
Right front lamp unit |
12A |
| E2 |
Right front lamp unit |
28A |

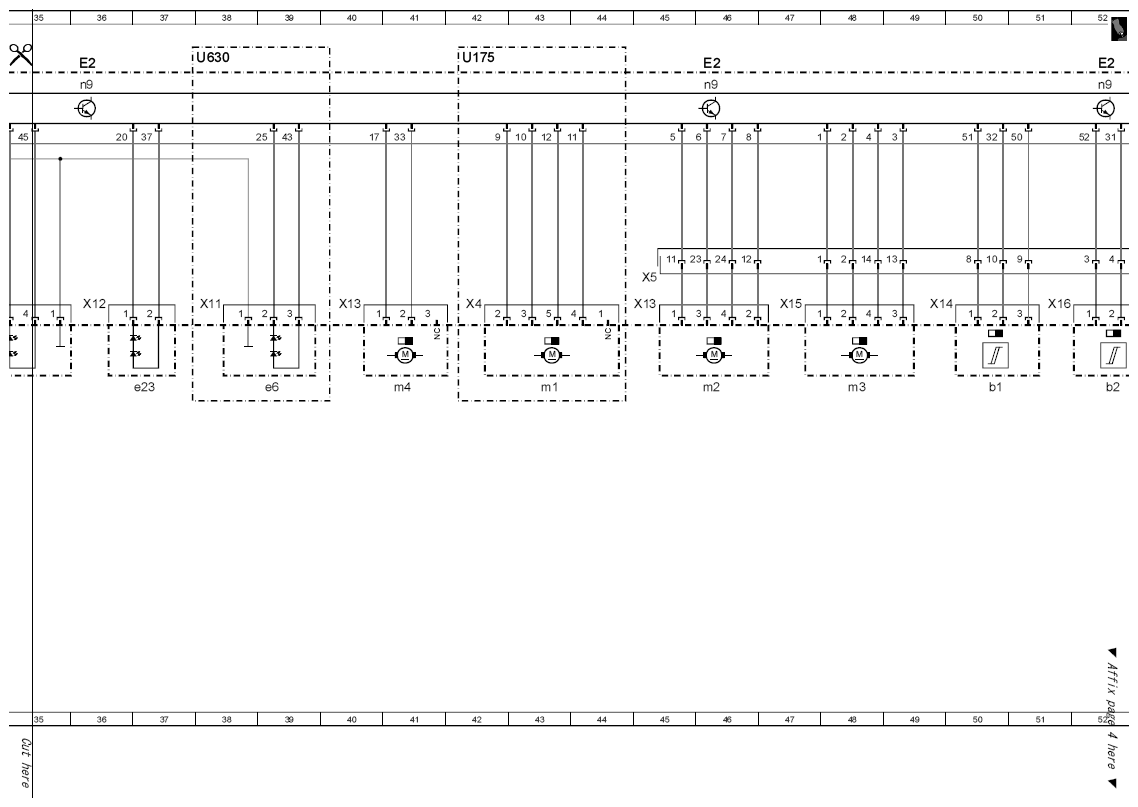

| E2 |
Right front lamp unit |
36A |
| E2 |
Right front lamp unit |
46A |
| E2 |
Right front lamp unit |
52A |
| E2b1 |
Right active curve illumination position sensor |
50F |
| E2b2 |
Right light distribution position sensor |
52F |
| E2e1 |
Right high beam |
20F |
| E2e13 |
Right parking light, standing light and daytime running light |
28F |
| E2e15 |
Right low beam (short range) |
24F |
| E2e16 |
Right low beam (long range) |
21F |
| E2e23 |
Right front ambient light |
37F |
| E2e5 |
Right front turn signal lamp |
31F |
| E2e6 |
Right front side-marker lamp |
39F |
| E2e9 |
Right cornering illumination |
34F |
| E2m1 |
Right headlamp range adjustment actuator motor |
43F |
| E2m2 |
Right active curve illumination actuator motor |
46F |
| E2m3 |
Right light distribution actuator motor |
48F |
| E2m4 |
Right LED signaling lights actuation module fan motor |
41F |
| E2m5 |
Right LED driving lights actuation module fan motor |
26F |
| E2n7 |
Actuation module for right front exterior lights LED |
4B |
| E2n7 |
Actuation module for right front exterior lights LED |
12B |
| E2n9 |
Right headlamp control unit |
20B |
| E2n9 |
Right headlamp control unit |
28B |
| E2n9 |
Right headlamp control unit |
36B |
| E2n9 |
Right headlamp control unit |
46B |
| E2n9 |
Right headlamp control unit |
52B |
| K40/8 |
Engine fuse and relay module |
5L |
| K40/8f108 |
Fuse 108 |
4L |
| K40/8f110 |
Fuse 110 |
2L |
| N10/6 |
Front SAM control unit |
11L |
| U12 |
Valid for left-hand drive vehicles |
22G |
| U13 |
Valid for right-hand drive vehicles |
19G |
| U175 |
Not valid for USA and Canada |
42A |
| U630 |
Valid for USA and Canada |
7H |
| U630 |
Valid for USA and Canada |
38A |
| W2 |
Right front ground point (at lamp unit) |
10H |
| X25/7 |
Engine compartment/frame floor assembly electrical connector |
21J |
| X30/27 |
Peripherals CAN (CAN PER) potential distributor electrical connector |
26L |
| Z194/4z1 |
Left front lamp unit circuit 30 connector sleeve |
9H |
| Z194/5z1 |
Right front lamp unit circuit 30 connector sleeve |
12H |
| Z194/6z1 |
Left position lamp connector sleeve |
3H |
| Z194/7z1 |
Right position lamp connector sleeve |
2H |
