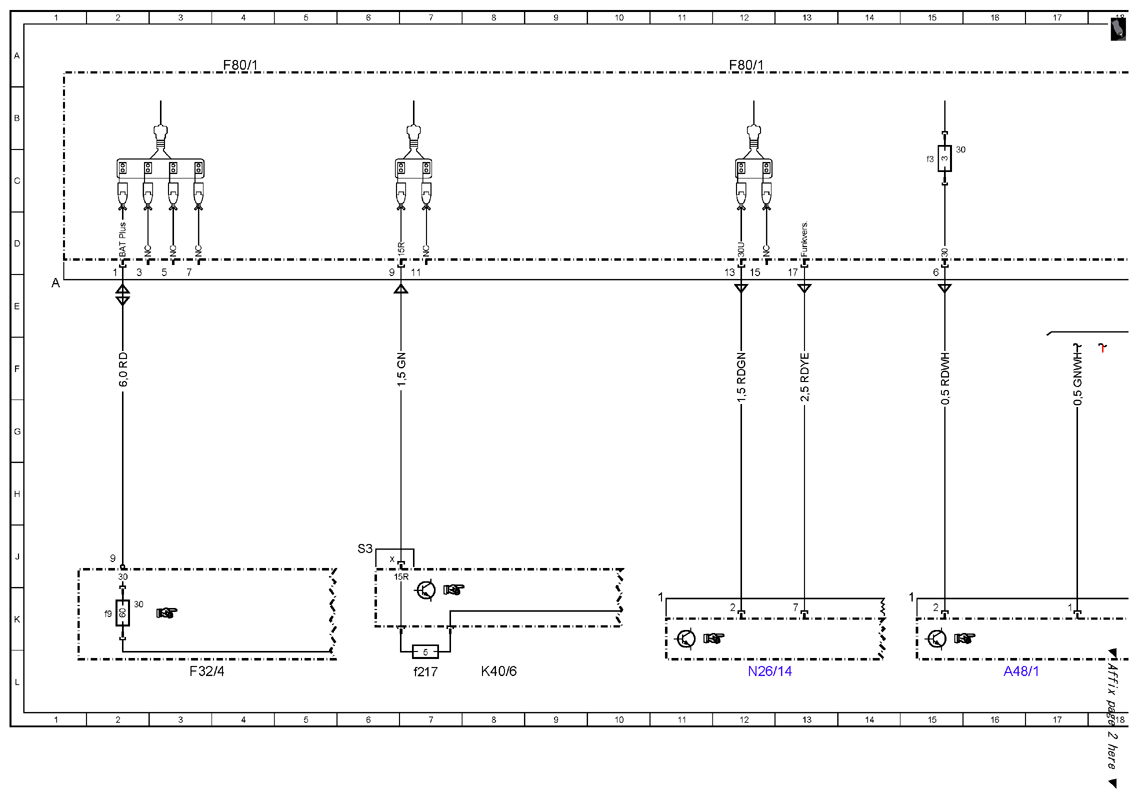

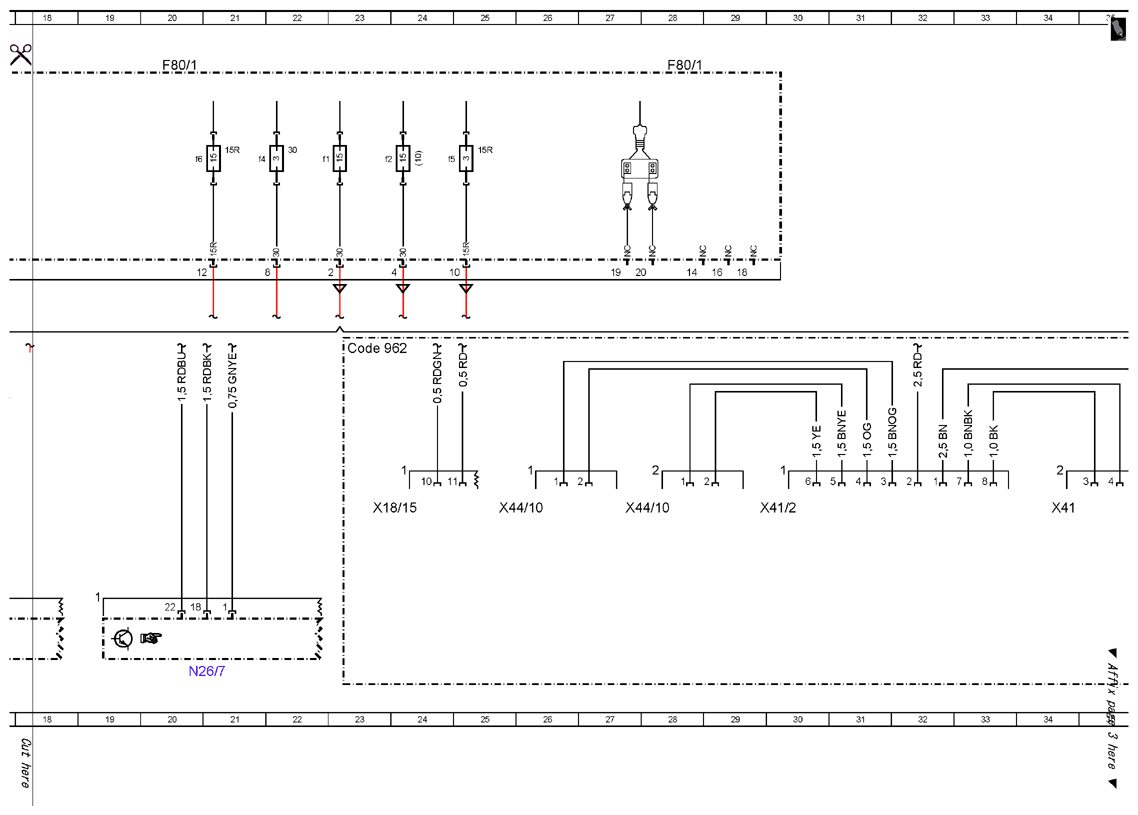

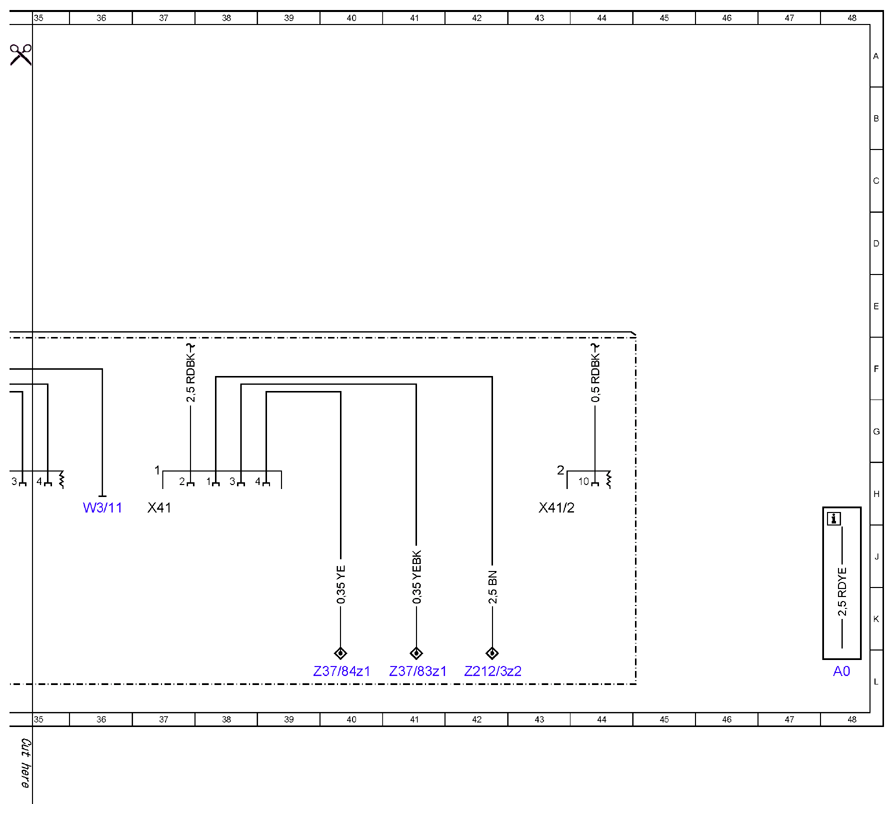

| A0 |
Use of wiring diagrams |
48L |
| A48/1 |
Special signal system operating unit |
16L |
| Code 962 |
Hella roof attachment |
23F |
| F32/4 |
Vehicle interior prefuse box |
3L |
| F32/4f9 |
Fuse 9 |
2K |
| F80/1 |
Special-purpose vehicle fuse block 1 |
4A |
| F80/1 |
Special-purpose vehicle fuse block 1 |
12A |
| F80/1 |
Special-purpose vehicle fuse block 1 |
20A |
| F80/1 |
Special-purpose vehicle fuse block 1 |
28A |
| F80/1f1 |
Fuse 1 |
22C |
| F80/1f2 |
Fuse 2 |
23C |
| F80/1f3 |
Fuse 3 |
15C |
| F80/1f4 |
Fuse 4 |
21C |
| F80/1f5 |
Fuse 5 |
24C |
| F80/1f6 |
Fuse 6 |
20C |
| K40/6 |
Left fuse and relay module |
8L |
| K40/6f217 |
Fuse 217 |
7L |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
12L |
| N26/7 |
Special signal system control unit |
20L |
| W3/11 |
Left rear wheel well ground point |
36H |
| X18/15 |
German Association of the Automotive Industry connecting point |
24H |
| X41 |
Roof light bar separation point |
37H |
| X41 |
Roof light bar separation point |
34H |
| X41/2 |
Roof light bar separation point |
43H |
| X41/2 |
Roof light bar separation point |
30H |
| X44/10 |
|
26H |
| X44/10 |
|
28H |
| Z212/3z2 |
Circuit 31 connector sleeve |
42L |
| Z37/83z1 |
Multifunction CAN high connector sleeve |
41L |
| Z37/84z1 |
Multifunction CAN low connector sleeve |
40L |
