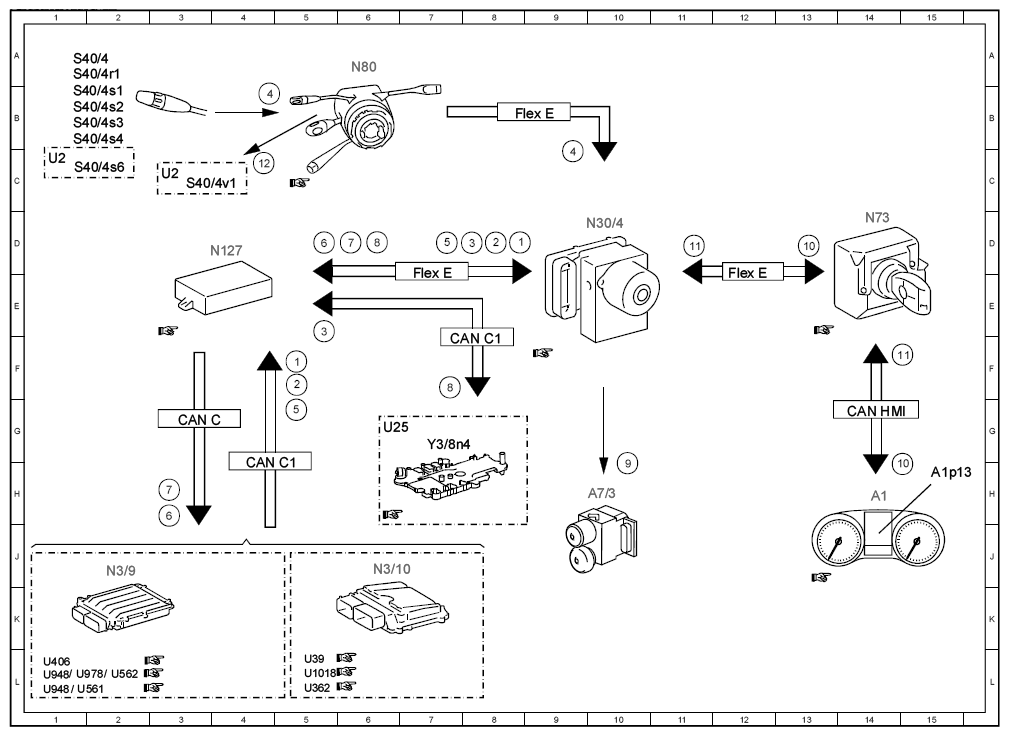

| 1 |
Engine running, signal |
5F |
| 1 |
Engine running, signal |
8D |
| 10 |
Speed setting, status |
13D |
| 10 |
Speed setting, status |
14H |
| 11 |
Set maximum design speed, status |
11D |
| 11 |
Set maximum design speed, status |
14F |
| 12 |
Light-emitting diode actuation |
4C |
| 2 |
Drivetrain operational, signal |
5F |
| 2 |
Drivetrain operational, signal |
8D |
| 3 |
Gear range, status |
5E |
| 3 |
Gear range, status |
8D |
| 4 |
CRUISE CONTROL lever, signal |
9C |
| 4 |
CRUISE CONTROL lever, signal |
4B |
| 5 |
Accelerator pedal position, signal |
5G |
| 5 |
Accelerator pedal position, signal |
7D |
| 6 |
Engine torque, reduce request |
3H |
| 6 |
Engine torque, reduce request |
5D |
| 7 |
Engine torque, increase request |
3H |
| 7 |
Engine torque, increase request |
6D |
| 8 |
Engage targeted gear, request |
6D |
| 8 |
Engage targeted gear, request |
8F |
| 9 |
Traction system hydraulic unit, actuation |
10H |
| A1 |
Instrument cluster |
14H |
| A1p13 |
Multifunction display |
15H |
| A7/3 |
Traction system hydraulic unit |
10H |
| CAN C |
Engine CAN |
3G |
| CAN C1 |
Drive train CAN |
8F |
| CAN C1 |
Drive train CAN |
4H |
| CAN HMI |
User interface CAN |
14G |
| Flex E |
Chassis FlexRay |
8B |
| Flex E |
Chassis FlexRay |
12E |
| Flex E |
Chassis FlexRay |
7E |
| N127 |
Drivetrain control unit |
3D |
| N3/10 |
ME-SFI [ME] control unit |
6J |
| N3/9 |
CDI control unit |
2J |
| N30/4 |
Electronic Stability Program control unit |
10D |
| N73 |
Electronic ignition switch control unit |
14D |
| N80 |
Steering column module control unit |
6A |
| S40/4 |
Cruise control lever |
1A |
| S40/4r1 |
DISTRONIC control |
1A |
| S40/4s1 |
Resume from memory switch |
1B |
| S40/4s2 |
Decelerate and set switch |
1B |
| S40/4s3 |
Accelerate and set switch |
1B |
| S40/4s4 |
OFF switch |
1B |
| S40/4s6 |
SPEEDTRONIC switch |
2C |
| S40/4v1 |
SPEEDTRONIC light emitting diode |
3C |
| U1018 |
Valid for gasoline engine 276 |
5L |
| U2 |
Not valid for USA |
1C |
| U2 |
Not valid for USA |
3C |
| U25 |
Valid for automatic transmission |
6G |
| U362 |
Valid for gasoline engine 274 |
5L |
| U39 |
Valid for gasoline engine 177 |
5L |
| U406 |
Valid for diesel engine 626 |
1L |
| U561 |
Valid for Delphi system |
1L |
| U562 |
Valid for Bosch system |
2L |
| U948 |
Valid for diesel engine 651 |
1L |
| U948 |
Valid for diesel engine 651 |
1L |
| U978 |
Valid for hybrid drive |
1L |
| Y3/8n4 |
Fully integrated transmission control control unit |
7G |
