Outside temperature sensor, component description - GF83.57-P-4006CW

MODEL 204.0/2 up to Model Year 2008

Illustrated on model 204.0

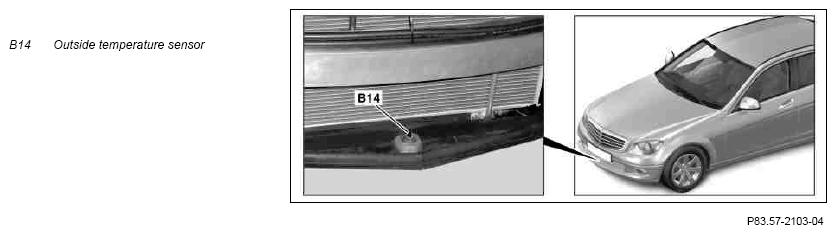

Fig 1: Identifying Outside Temperature Sensor Component - Illustrated On Model 204.0

Courtesy of MERCEDES-BENZ USA

Location

The outside temperature sensor is located in the center behind the front bumper in front of the radiator.

Task

The outside temperature sensor records the outside temperature. The outside temperature sensor is read in by the front SAM control unit with fuse and relay module (N10/1).
