Instrument cluster, component description - GF54.30-P-6000CWB
MODEL 204.0/2 with CODE (442) Comfort multifunction steering wheel up to Model Year 8

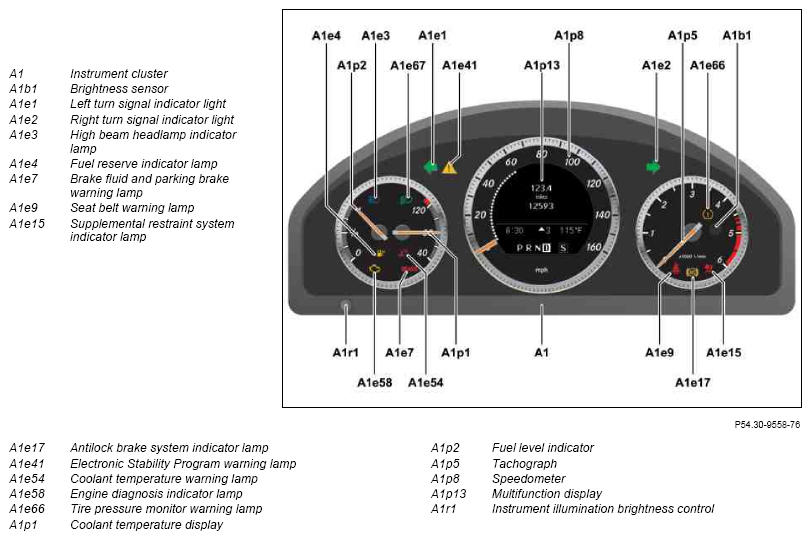

Shown on model 204.0 without code (494) USA version with transmission 722 and gasoline engine

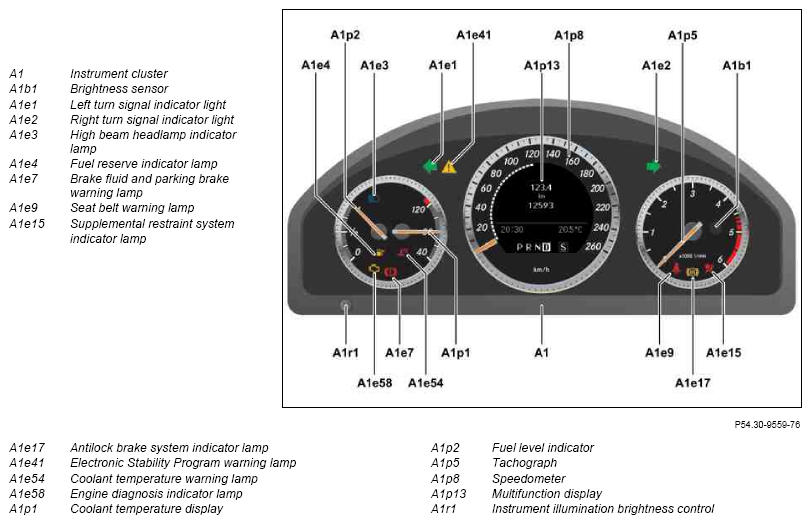

Shown on model 204.0 with code (494) USA version with transmission 722 and gasoline engine
Location
The instrument cluster is located in the instrument panel on the driver side.
Tasks
- Receive, evaluate and transmit signals via chassis CAN and interior CAN for various operating requests, displays and warning messages
- Actuate instrument illumination (A1e8) depending on:
- light sensor (B38/1) (without code (345) Rain sensor) or rain/light sensor (B38/2) (with code (345) Rain sensor)
- brightness sensor
- instrument illumination brightness control
- Output of status indications and fault messages via multifunction display
- Output acoustic warnings
The acoustic signals are generated as follows:
- Actuation of internal speaker: "Gong" at a frequency of f = 1 Hz
- Actuation of internal warning buzzer (A1h1): warning tone at a frequency of f = 2.5 Hz
- Actuation of turn signal lights function check, acoustic (A1h2): clicking sound
- Actuation of following stepper motors:
- coolant temperature gauge
- fuel level indicator
- tachometer
- speedometer
