Light sensor component description - GF54.21-P-6001CW
MODEL 204.0/2 except CODE (345) Rain sensor up to Model Year 2008
Illustrated on model 204.0

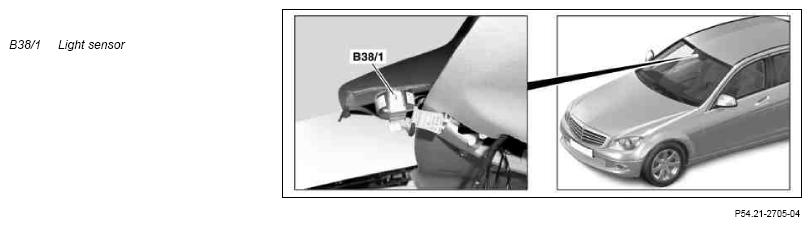

Location
The light sensor is located on the inside of the windshield near the inside rearview mirror.
Task
It records the light intensity impacting on the windshield. Various functions of the interior illumination and exterior lights are controlled automatically via the light intensity.
The information is forwarded over the
- overhead control panel control unit (N70) (with code (414) Power glass tilting/sliding sunroof) or over the
- overhead control panel electronics (N70/3) (without code (414) Power glass tilting/sliding sunroof)
wiper/inside rearview mirror LIN to the front SAM control unit with fuse and relay module (N10/1).
