| 1 |
Outside temperature, signal |
13 F |
| 1 |
Outside temperature, signal |
21 D |
| 2 |
Wheel speed, signal |
8 B |
| 2 |
Wheel speed, signal |
10 F |
| 3 |
Fuel pump, specified pressure request |
3 F |
| 3 |
Fuel pump, specified pressure request |
10 F |
| 4 |
Exterior lights switch, status |
14 F |
| 4 |
Exterior lights switch, status |
22 H |
| 5 |
"Night", signal |
14 F |
| 5 |
"Night", signal |
20 J |
| 6 |
Multifunction steering wheel button group, signal |
9 J |
| 6 |
Multifunction steering wheel button group, signal |
9 F |
| 7 |
Time synchronization, signal |
15 F |
| 8 |
Circuit 15, status |
15 F |
| A1 |
Instrument cluster |
12 E |
| A40/3 |
COMAND control unit |
16 C |
| A8/1 |
Transmitter key |
18 K |
| B11/4 |
Coolant temperature sensor |
1 G |
| B14 |
Outside temperature sensor |
21 C |
| B38/2 |
Rain/light sensor |
20 J |

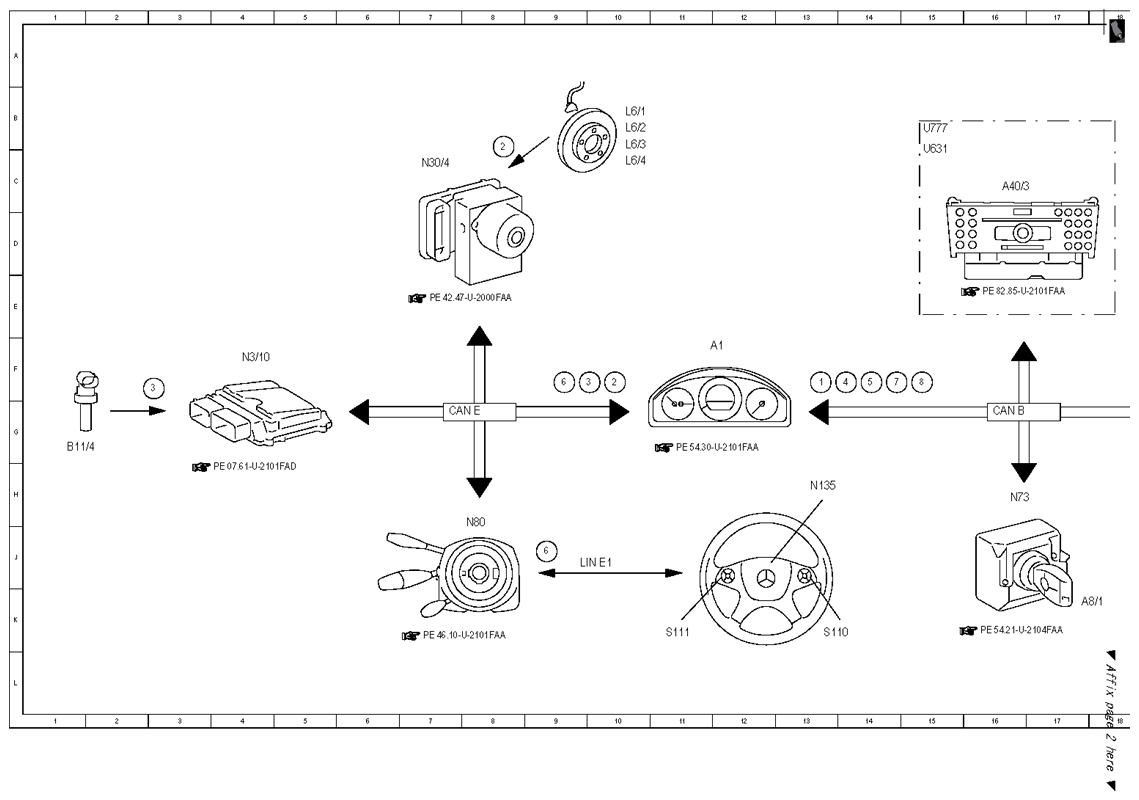

| CAN B |
Interior CAN |
16 G |
| CAN E |
Chassis CAN |
7 G |
| L6/1 |
Left front axle rpm sensor |
10 B |
| L6/2 |
Right front axle rpm sensor |
10 B |
| L6/3 |
Left rear axle rpm sensor |
10 B |
| L6/4 |
Right rear axle rpm sensor |
10 C |

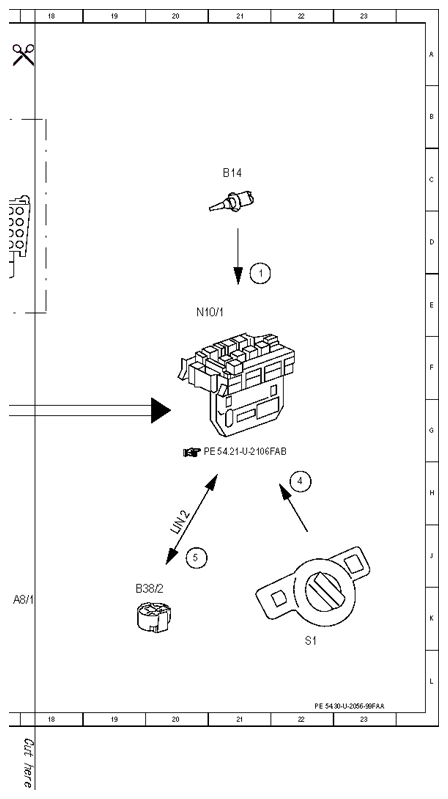

| LIN 2 |
Wiper/inside rearview mirror LIN |
20 H |
| LIN E1 |
Steering LIN |
10 J |
| N10/1 |
Front SAM control module with fuse and relay module |
21 E |
| N135 |
Steering wheel gear shift signal processing module |
13 H |
| N3/10 |
ME-SFI [ME] control module |
4 F |
| N30/4 |
Electronic Stability Program control unit |
7 C |
| N73 |
Electronic ignition switch control unit |
16 H |
| N80 |
Steering column module control unit |
8 H |
| S1 |
Exterior lights switch |
22 K |
| S110 |
Left multifunction steering wheel button group |
13 K |
| S111 |
Right multifunction steering wheel button group |
11 K |
| U631 |
Valid for COMAND |
15 B |
| U777 |
Valid for navigation |
15 B |
