Wiring diagram for connector separation points - PE54.18-U-2300-99FAB

Code: Designation: Position:
CAN B Interior CAN 30 B
L6/1 Left front axle rpm sensor 51 L
L6/2 Right front axle rpm sensor 47 L
N10/1 Front SAM control module with fuse and relay module 44 A
N10/2 Rear SAM control module with fuse and relay module 4 A
N10/2 Rear SAM control module with fuse and relay module 12 A
N10/2 Rear SAM control module with fuse and relay module 20 A
N10/2 Rear SAM control module with fuse and relay module 27 A
N10/2 Rear SAM control module with fuse and relay module 39 A
N110 Weight Sensing System (WSS) control unit 28 L
N2/10 Supplemental restraint system control unit 20 L
N30/4 Electronic Stability Program control unit 49 A
R12/10 Right side airbag ignition squib 25 L
R12/9 Driver side airbag squib 14 L
R13/1 Left front seat sitting surface heated cushion 41 L
R13/2 Left front backrest heated cushion 40 L
R13/3 Right front seat sitting surface heated cushion 36 L
R13/4 Right front backrest heated cushion 38 L
S10/2 Right front brake wear sensor 45 L
S10/2x1 Right front brake wear sensor electrical connector 44 K
S22 Left front seat adjustment switch group 2 L
S23 Right front seat adjustment switch group 6 L
S68/3 Driver seat belt buckle restraint system switch 16 L
S68/4 Front passenger seat belt buckle restraint system switch 23 L
U21 Valid for seat heaters 35 D
U916 Valid for weight sensing system (WSS) 26 H
V24 Driver overvoltage protection diode 9 L
V25 Front passenger overvoltage protection diode 32 L
W18 Left front seat crossmember ground point 4 E
W18 Left front seat crossmember ground point 14 E
W18 Left front seat crossmember ground point 41 E
W19 Right front seat crossmember ground point 7 E
W19 Right front seat crossmember ground point 26 E
W19 Right front seat crossmember ground point 37 E
W19 Right front seat crossmember ground point 45 E
X150/1 Driver NECK-PRO head restraint electrical connector 8 H
X150/1 Driver NECK-PRO head restraint electrical connector 10 H
X150/2 Front passenger NECK-PRO head restraint electrical connector 31 H
X150/2 Front passenger NECK-PRO head restraint electrical connector 34 H
X30/33 Right vehicle floor interior CAN voltage distributor electrical connector 30 A
X55/3 Driver seat contacting strip 1 E
X55/3 Driver seat contacting strip 12 H
X55/3 Driver seat contacting strip 39 G
X55/4 Front passenger seat contacting strip 4 E
X55/4 Front passenger seat contacting strip 23 H
X55/4 Front passenger seat contacting strip 36 G
X62/6 Front axle electrical connector, right distributor 44 H
X62/7 Front axle electrical connector, left distributor 50 H
Y24/12 Driver seat NECK-PRO head restraint solenoid 8 L
Y24/13 Front passenger seat NECK-PRO head restraint solenoid 34 L
Z6/15 Right seat belt buckle circuit 31 connector sleeve 20 E
Z6/94 Driver seat circuit 31 connector sleeve 2 H
Z6/95 Front passenger seat circuit 31 connector sleeve 6 H
Z61/18 Left seat circuit 15R connector sleeve 1 H
Z61/19 Right seat circuit 15R connector sleeve 4 H

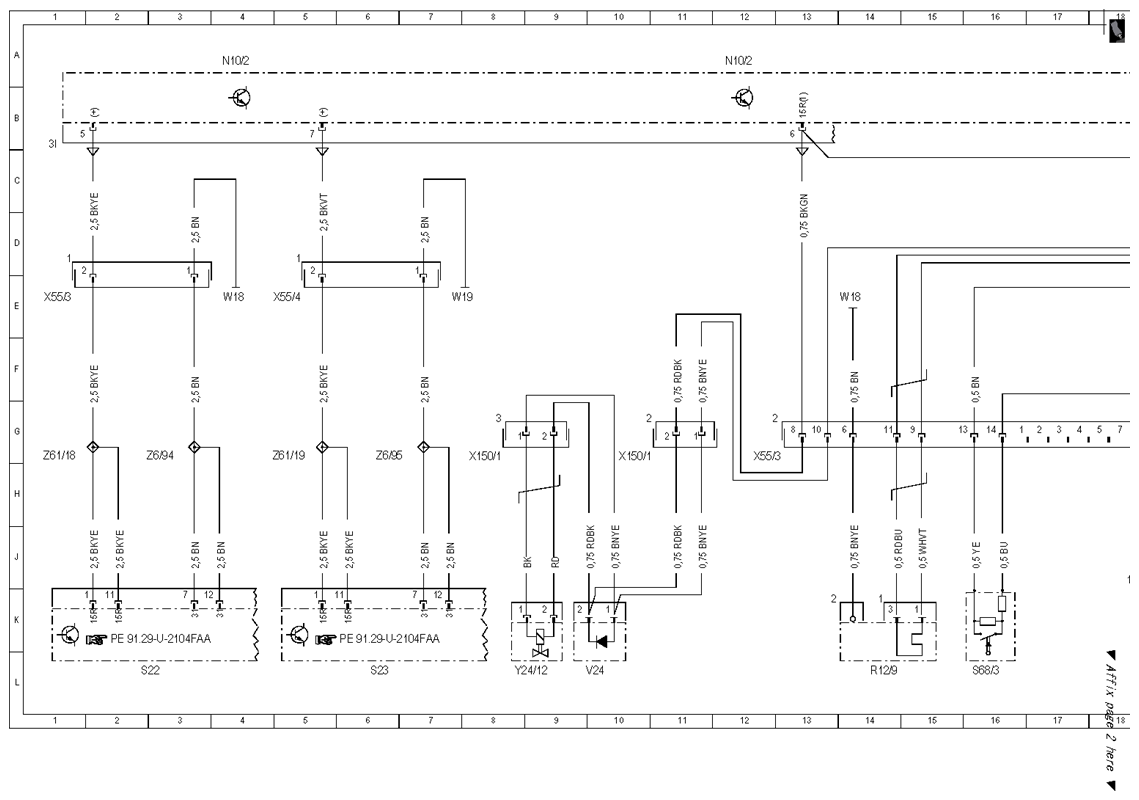

Fig 1: Connector Separation Points Wiring Diagram (1 Of 4)
G10107313Courtesy of MERCEDES-BENZ USA

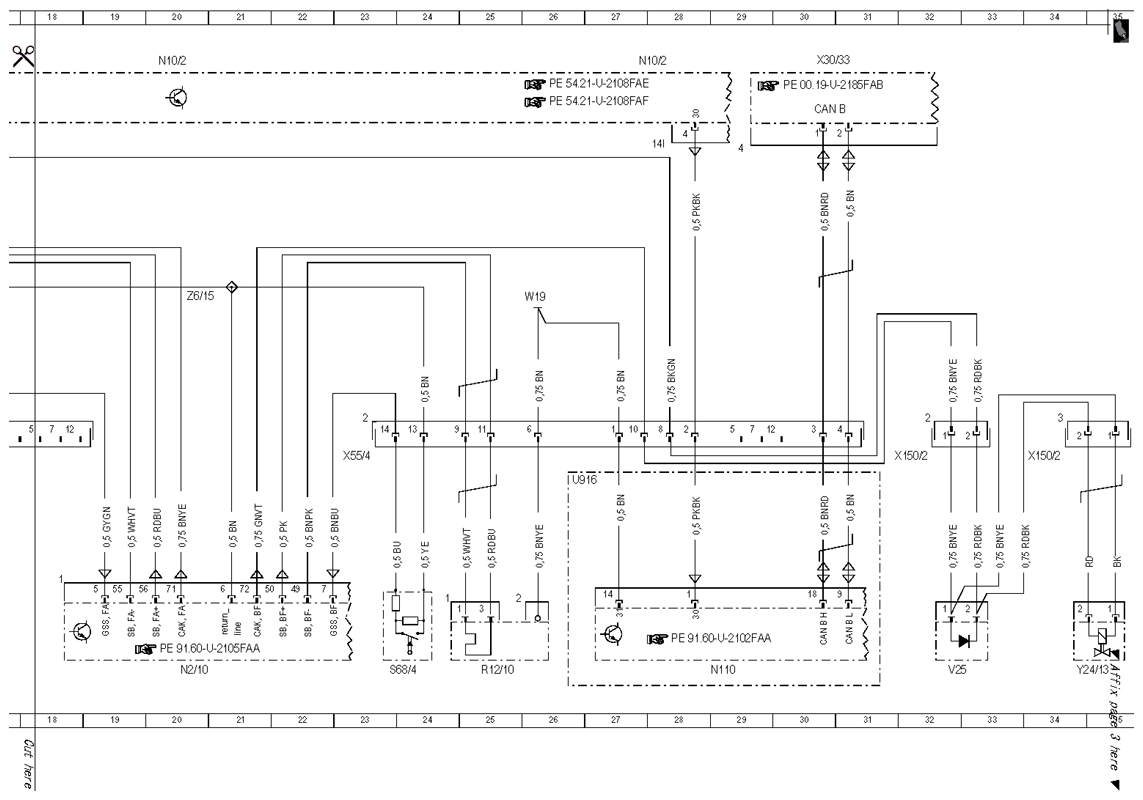

Fig 2: Connector Separation Points Wiring Diagram (2 Of 4)
G10107314Courtesy of MERCEDES-BENZ USA

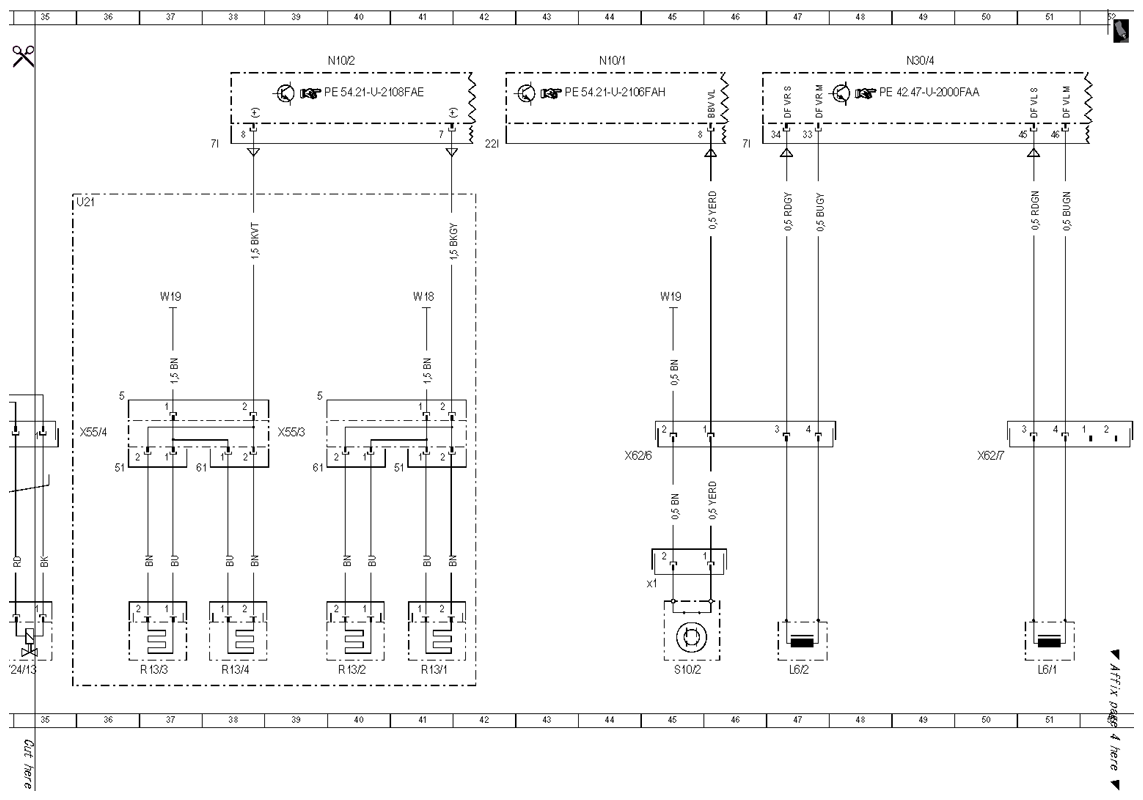

Fig 3: Connector Separation Points Wiring Diagram (3 Of 4)
G10107315Courtesy of MERCEDES-BENZ USA

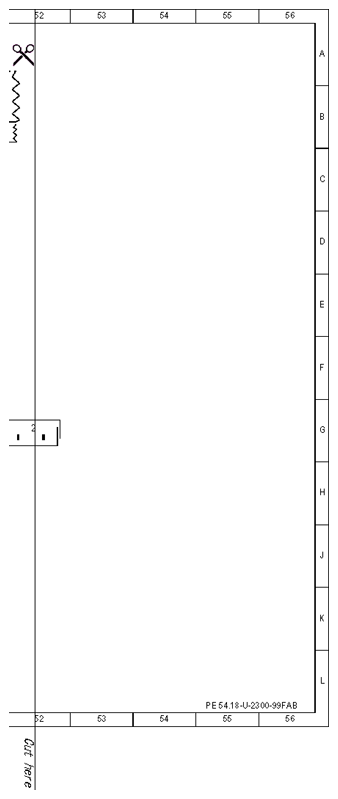

Fig 4: Connector Separation Points Wiring Diagram (4 Of 4)
G10107316Courtesy of MERCEDES-BENZ USA
