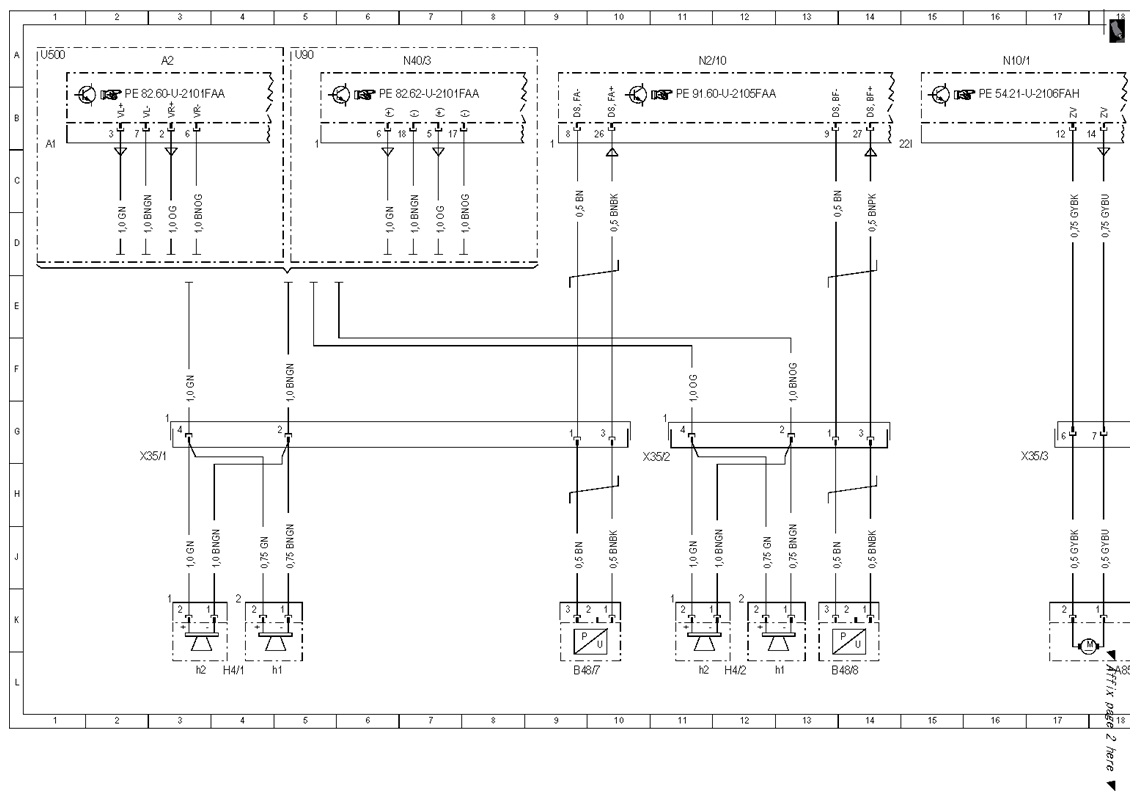

| A2 |
Radio |
3 A |
| A2 |
Radio |
28 A |
| A2 |
Radio |
47 A |
| A85/3 |
Left rear door lock |
18 L |
| A85/4 |
Right rear door lock |
37 L |
| B48/7 |
Left front door pressure sensor |
9 L |
| B48/8 |
Right front door pressure sensor |
13 L |
| CAN B |
Interior CAN |
24 B |
| CAN B |
Interior CAN |
43 B |
| H4/1 |
Left front door speaker |
4 L |
| H4/1h1 |
Left front door tweeter |
4 L |
| H4/1h2 |
Left front door bass speaker |
3 L |
| H4/2 |
Right front door speaker |
12 L |
| H4/2h1 |
Right front door tweeter |
12 L |
| H4/2h2 |
Right front door bass speaker |
11 L |
| H4/3 |
Left rear door speaker |
29 L |
| H4/4 |
Right rear door speaker |
49 L |
| N10/1 |
Front SAM control module with fuse and relay module |
16 A |
| N10/1 |
Front SAM control module with fuse and relay module |
35 A |

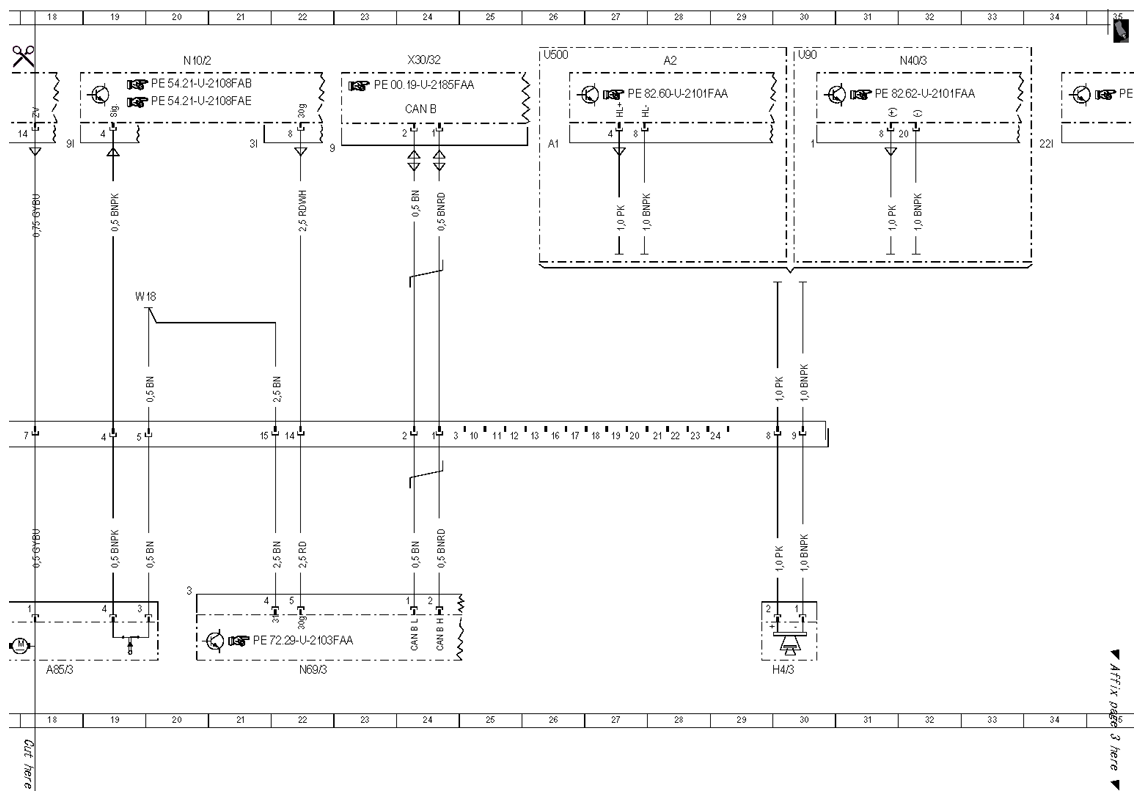

| N10/2 |
Rear SAM control module with fuse and relay module |
20 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
39 A |
| N2/10 |
Supplemental restraint system control unit |
11 A |
| N40/3 |
Sound system amplifier control unit |
7 A |
| N40/3 |
Sound system amplifier control unit |
31 A |
| N40/3 |
Sound system amplifier control unit |
51 A |
| N69/3 |
Left rear door control unit |
22 L |
| N69/4 |
Right rear door control unit |
41 L |
| U500 |
Not valid for sound system |
1 A |
| U500 |
Not valid for sound system |
26 A |
| U500 |
Not valid for sound system |
45 A |
| U90 |
Valid for sound system |
5 A |
| U90 |
Valid for sound system |
30 A |
| U90 |
Valid for sound system |
49 A |
| W18 |
Left front seat crossmember ground point |
19 E |

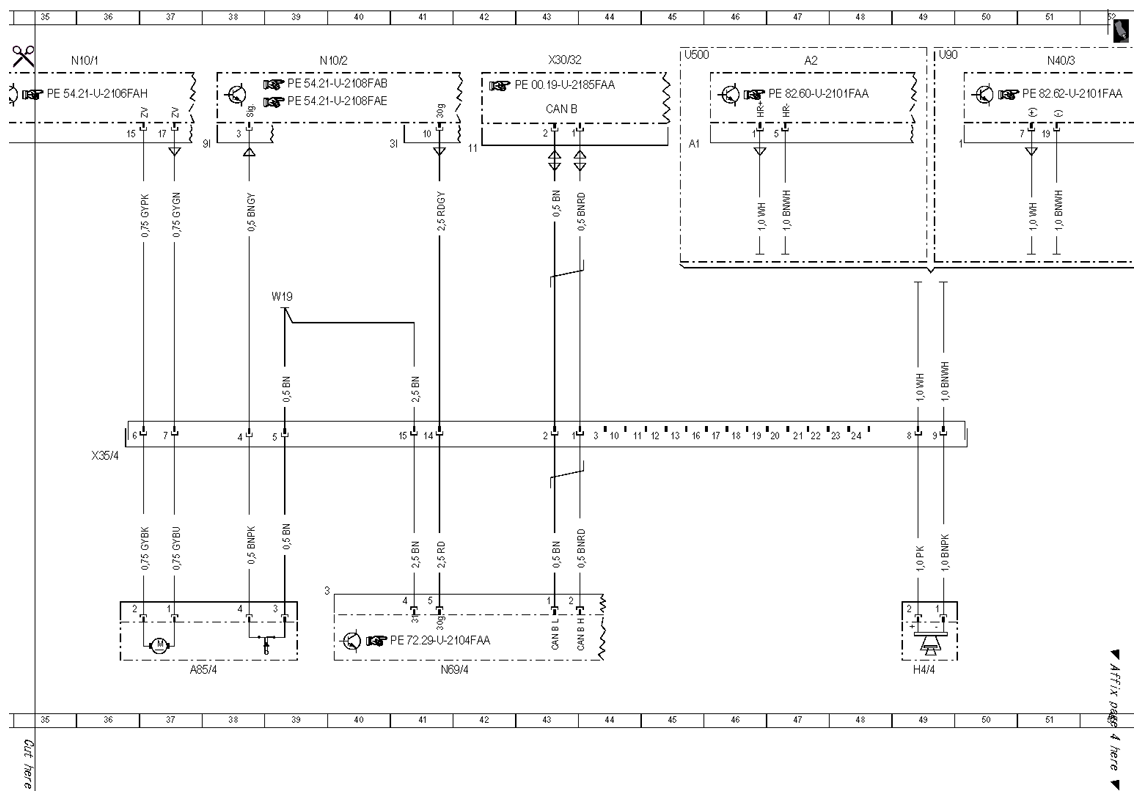

| W19 |
Right front seat crossmember ground point |
39 E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
24 A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
43 A |
| X35/1 |
Left front door electrical connector |
2 H |
| X35/2 |
Right front door electrical connector |
10 H |
| X35/3 |
Left rear door electrical connector |
16 H |
| X35/4 |
Right rear door electrical connector |
36 H |
