Cockpit central display, component description - GF54.30-P-6100CW

MODEL 204.0/2 with CODE (523) MB Audio 20 radio up to Model Year 2008 Entry

MODEL 204.0 with CODE (494) USA version up to Model Year 2008 Entry

MODEL 204.0/2 with CODE (510) Audio 20 with CD changer up to Model Year 2008 Entry

MODEL 204.0/2 with CODE (525) MB Audio 50 APS radio up to Model Year 2008 Entry

MODEL 204.0/2 with CODE (511) Audio 50 APS with DVD changer up to Model Year 2008 Entry

Illustrated on model 204.0

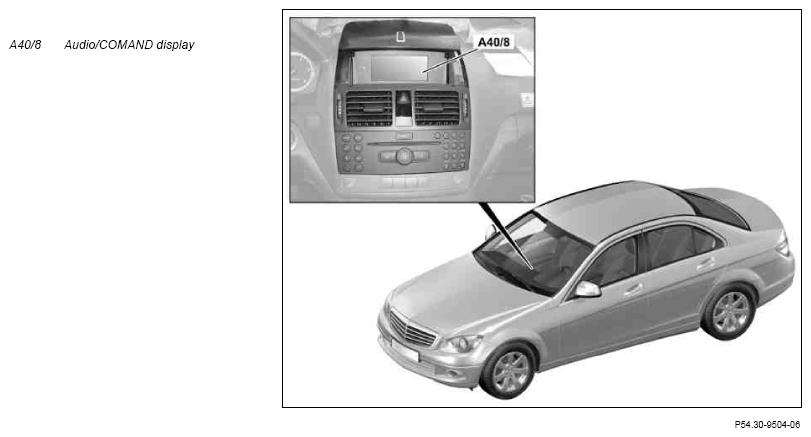

Fig 1: Identifying Cockpit Audio/COMAND Display - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

Location

The Audio/COMAND display is fitted centrally on top of the dashboard.

Task

The main task of the audio/COMAND display is the uniform presentation of user-relevant navigation/operating/information windows.

Design

The Audio/COMAND display is a fixed 5"-TFT color screen with a resolution of 277 x 124 x 3 (RGB) pixels

Function

The display and menu presentation is transmitted digitally by the following components via a Low Voltage Differential Signaling (LVDS) line and shown in the Audio/COMAND display:

Radio (A2), with code (523) MB Audio 20 radio or with code (510) Audio 20 with CD changer
Radio with auto pilot system (A2/56), with code (525) MB Audio 50 APS radio or with code (511) Audio 50 APS with DVD changer

A connection to the telematics CAN exists for the control and diagnosis of the Audio/COMAND display.
