Remove/install charge air manifold - AR09.41-P-1310MT
ENGINE 270 in MODEL 117, 156, 176, 242, 246.2

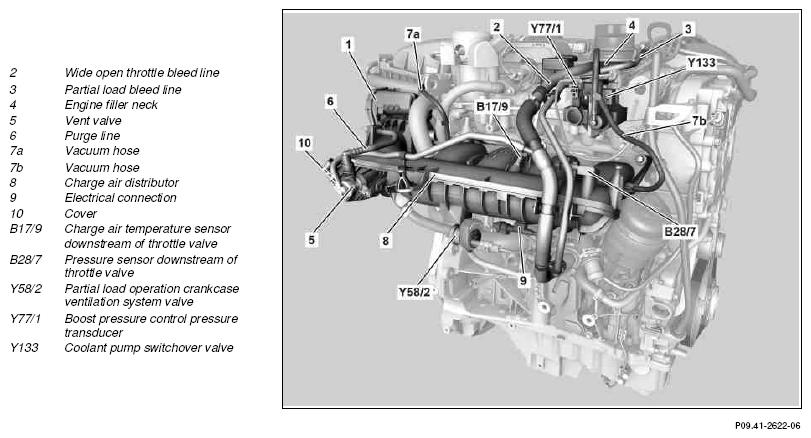

Shown: engine model 246.2
| Remove/install | |||
| 1 | Remove throttle valve actuator | AR07.61-P-1401MT | |
| 2 | Depressurize gas system | Engine 270 in model 242 with code 924 (Bivalent natural gas drive) |
|
| AR47.10-P-0028NKB | |||
| 3 | Remove gas distribution rail | Engine 270 in model 242 with code 924 (Bivalent natural gas drive) |
|
| AR07.03-P-0001NKB | |||
| 4 | Detach wide open throttle bleed line (2) at air intake pipe | ||
| 5 | Detach partial load throttle bleed line (3) at air intake pipe | ||
| 6 | Unclip spacer at partial load bleed line (3) and wide open throttle vent line (2) | ||
| 7 | Unclip partial load bleed line (3) on engine filler neck (4) | ||
| 8 | Unclip vacuum line at engine filler neck (4) | ||
| 9 | Unclip coolant pump switchover valve (Y133) at bracket | ||
| 10 | Detach boost pressure control pressure transducer (Y77/1) at bulkhead | ||
| 11 | Disconnect electrical connection at pressure sensor downstream of throttle valve (B28/7) | ||
| 12 | Disconnect electrical connection at temperature sensor downstream of throttle valve (B17/9) | ||
| 13 | Place all supply lines and vacuum lines to one side | ||
| 14 | Detach partial load bleed line (3) at charge air distributor (8) | ||
| 15 | Detach wide open throttle bleed line (2) at charge air distributor (8) | ||
| 16 | Detach bleed valve (5) at charge air distributor (8) | ||
| 17 | Unclip purge line (6) at charge air distributor (8) | ||
| 18 | Detach vacuum hoses (7a, 7b) at vacuum reservoir on charge air distributor (8) | ||
| 19 | Unfasten screw/bolt for charge air distributor (8) in reverse order of the tightening procedure and remove | AR09.41-P-1312-01MT | |
| *BA09.20-P-1001-01U | |||
| 20 | Turn charge air distributor (8) and detach partial load vent line (3) at charge air distributor (8) | ||
| 21 | Unhook partial load operation crankcase ventilation system valve (Y58/2) at bracket for the charge air distributor (8) | ||
| 22 | Unclip electrical connection (9) for knock sensor at charge air distributor (8) | ||
| 23 | Remove charge air distributor (8) | ||
| 24 | Remove cover (10) on blind flange/connecting housing | When installing a new charge air manifold (8). |
|
| 25 | Install in the reverse order | ||
| 26 | Read out and clear fault memory using the diagnostic system | ||
| AD00.00-P-2000-04A | |||
| 27 | With engine running, check natural gas system for leaktightness | Engine 270 in model 242 with code 924 (Bivalent natural gas drive) |
AR07.54-P-0001NKB |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 28 | Carry out an engine test run and check engine and fuel system for leaktightness |
INTAKE MANIFOLD
| Number | Designation | Engine 270 | |
|---|---|---|---|
| BA09.20-P-1001-01U | Bolt, charge air distributor to cylinder head | Nm | 14 |
