Remove/install fanfare horns - AR54.35-P-1555NKB

MODEL 117, 156, 176 (except 176.052), 242, 246

Shown on MODEL 246, on left side of vehicle

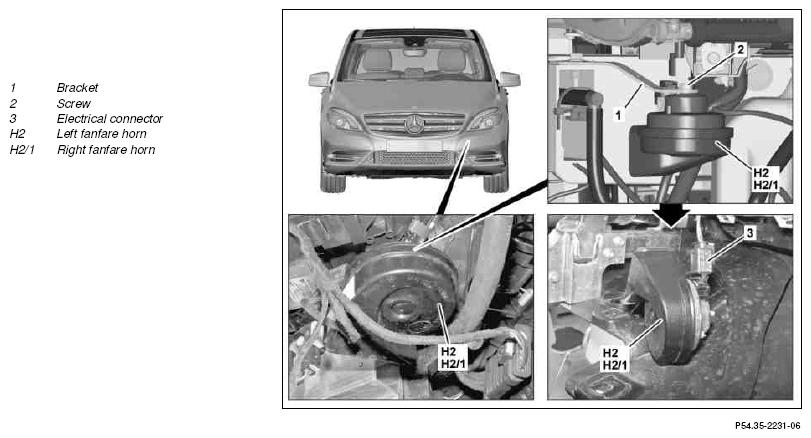

Fig 1: Identifying Fanfare Horns Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

Installation position for MODEL 117, 176, 242, 246

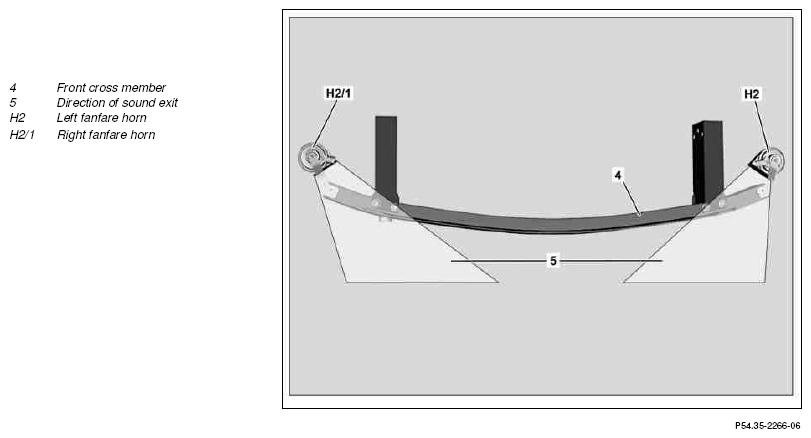

Fig 2: Identifying Fanfare Horn Installation Position - Model 117, 176, 242, 246

Courtesy of MERCEDES-BENZ USA

Installation position for MODEL 156

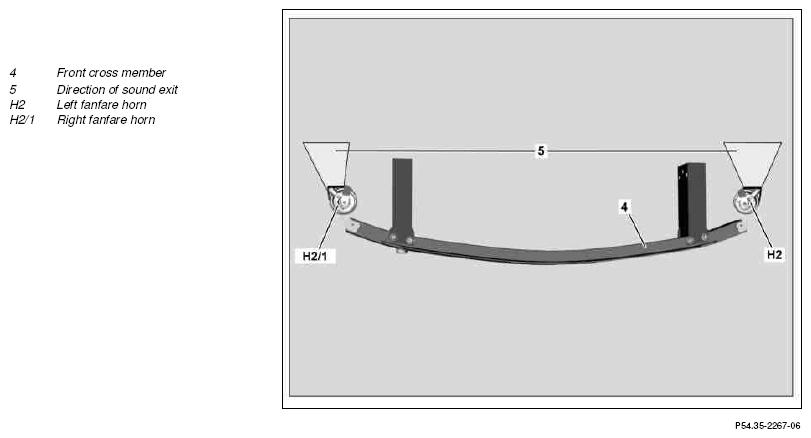

Fig 3: Identifying Fanfare Horn Installation Position - Model 156

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Release right front fender liner in front area far enough to gain access to the right horn (H2/1)	When removing right fanfare horn (H2/1).
			AR88.10-P-1300NKB
2	Release left front fender liner in front area far enough to gain access to the left horn (H2)	When removing left fanfare horn (H2).
			AR88.10-P-1300NKB
3.1	Unscrew bolt (2) and remove left horn (H2) or right horn (H2/1) from bracket (1)	Model 117, 156, 242, 246 Position left horn (H2) r right horn (H2/1) in original position on bracket (1). When doing this, note the direction of sound exit (5).
		Nut/bolt, horn to bracket	*BA54.35-P-1004-01E
3.2	Unscrew nut and remove left horn (H2) or right horn (H2/1) from bracket (1)	Model 176 (except 176.052) Position left horn (H2) r right horn (H2/1) in original position on bracket (1). When doing this, note the direction of sound exit (5).
		Nut/bolt, horn to bracket	*BA54.35-P-1004-01E
4	Detach electrical connection (3) and remove left horn (H2) or right horn (H2/1)
5	Install in the reverse order	When replacing the left horn (H2) or the right horn (H2/1) the bracket (1) included in the package contents must be detached from the new left horn (H2) or right horn (H2/1).
