Remove/install Parktronic system (PTS) control unit - AR54.65-P-0006NKB
MODEL 117, 156, 176, 242, 246 with CODE 220 (PARKTRONIC)
MODEL 117, 156, 176, 242, 246 with CODE 235 (Active Parking Assist with PARKTRONIC)
Shown on MODEL 246
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Switch off ignition | MODEL 117, 156, 176, 242, 246 with ENGINE 133, 270 | |
| 1.2 | Disconnect ground line from battery | MODEL 117, 156, 176, 246 with ENGINE 607, 651 | |
| AR54.10-P-0003NKB | |||

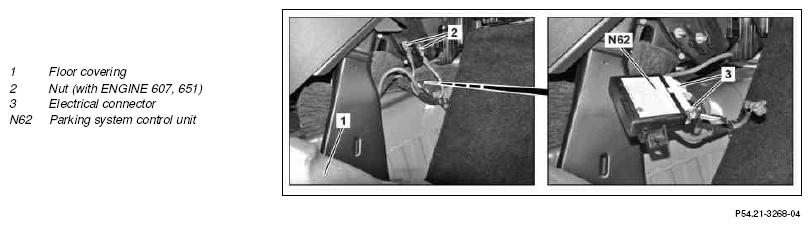

| 2 | Fold back floor covering (1) in passenger footwell | ||
| 3 | Unscrew nuts (2) and place lines to one side | MODEL 117, 156, 176, 246 with ENGINE 607, 651 | |
| 4 | Take parking system control unit (N62) out of the protective sleeve | ||
| 5 | Disconnect electrical connectors (3) and remove parking system control unit (N62) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform initial startup of parking system control unit (N62) using Star Diagnosis | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-04A |
