Remove/install panoramic roof wind deflector - AR77.21-P-0100NKB

MODEL 246 with CODE 413 (Panoramic glass roof with top sliding roof)

MODEL 242 with CODE 413 (Panoramic glass roof with top sliding roof)

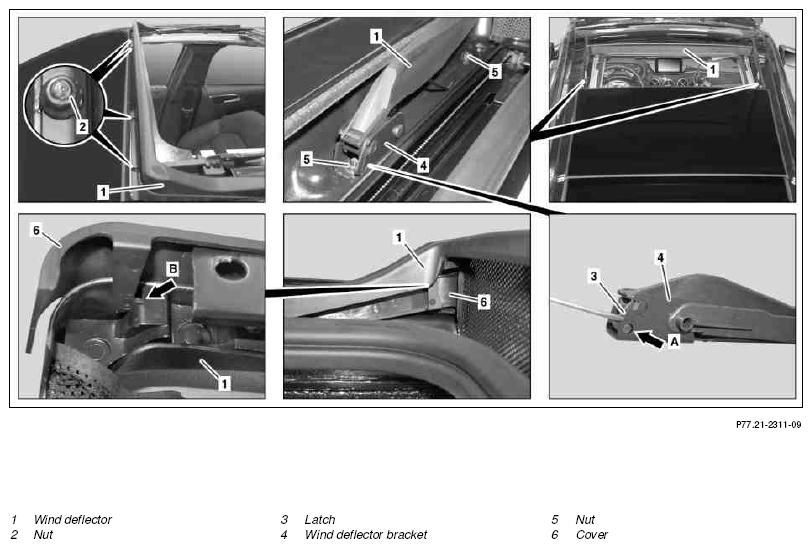

Fig 1: Identifying Panoramic Roof Wind Deflector Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

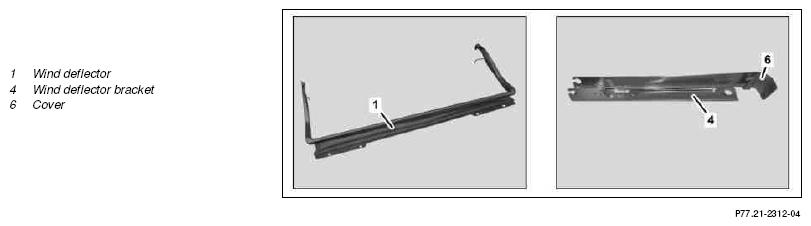

Fig 2: Identifying Panoramic Roof Wind Deflector Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Completely open front glass roof
2	Unscrew nuts (2)
3	Disengage lock (3) on button (arrows A) with screwdriver and position horizontally	On left and right side of panoramic roof.
4	Remove wind deflector (1) from wind deflector bracket (4) toward rear	Catch hook on cover (6) should reach into wind deflector (1) (arrow B). For this purpose push catch hook toward front when connecting wind deflector (1) and cover (6).
5	Remove lock (3) from wind deflector bracket (4)	On left and right side of panoramic roof.
6	Unscrew nuts (5) and remove wind deflector bracket (4)	On left and right side of panoramic roof.
7	Install in the reverse order
8	Connect Star Diagnosis, synchronize panoramic roof and perform teach-in run for anti-pinch protection for panoramic roof
			AD00.00-P-2000-04A
