Remove/install lower liftgate trim - AR72.20-P-6617NKA
MODEL 156, 176, 246
MODIFICATION NOTES
| 14.10.15 | Method adapted | Operation step 7 and 8 | |
| 7.8.15 | Method adapted | Operation step 1 to 3 |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||

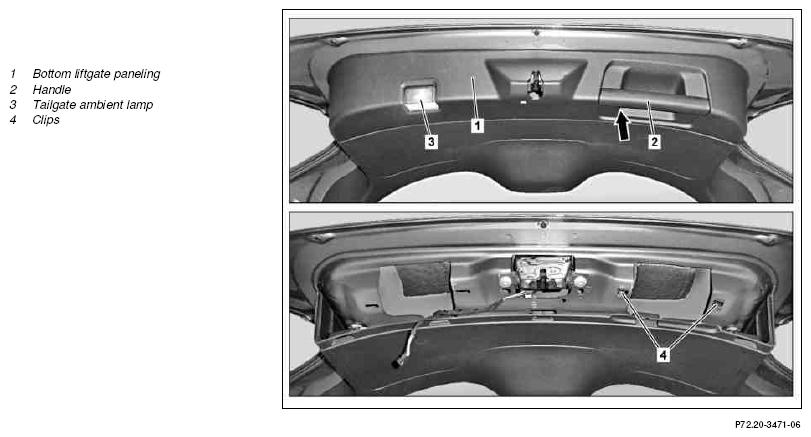

| 1 | Remove upper part of handle (2) at removal opening (arrow) from bottom part of handle (2) | ||
| 2 | Remove clips (4) with suitable tool | ||
| 3 | Unclip bottom liftgate paneling (1) | Fig 2 | |
| 4 | Disconnect electrical connector from liftgate ambient lamp (3) | ||
| 5 | Remove bottom liftgate paneling (1) | ||
| Install | |||
| 6 | Position clips (4) on handle (2) | ||
| 7 | Assemble handle (2) | ||
| 8 | Connect electrical connector to liftgate ambient lamp (3) | ||
| 9 | Position lower liftgate paneling (1) with handle (2) starting at liftgate | ||
| 10 | Clip in lower liftgate paneling (1) with handle (2) starting at liftgate |
