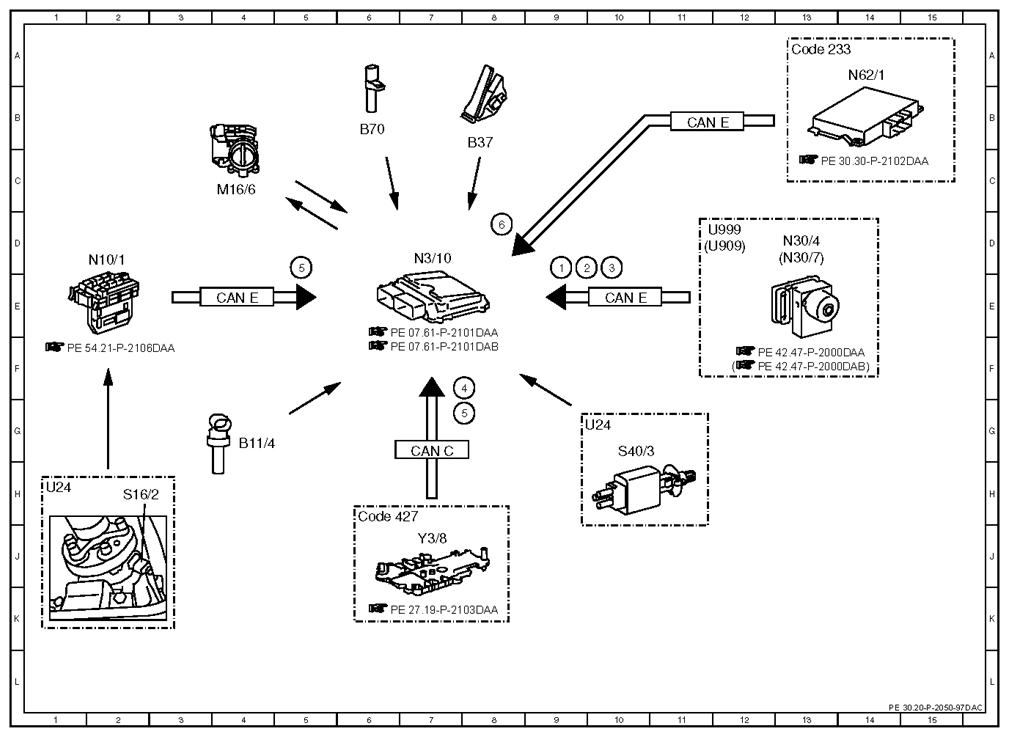

Electrical function schematic for electronic accelerator - PE30.20-P-2050-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212 except ENGINE 272.98
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Service brake, status | 9D |
| 2 | Engine torque, reduce request | 9D |
| 3 | Cruise control, request | 10D |
| 4 | Shift stage, status | 8F |
| 5 | Reverse gear, status | 8G |
| 5 | Reverse gear, status | 5D |
| 6 | DISTRONIC, request | 8D |
| B11/4 | Coolant temperature sensor | 4G |
| B37 | Accelerator pedal sensor | 8B |
| B70 | Crankshaft Hall sensor | 6B |
| CAN C | Drive train CAN | 7G |
| CAN E | Chassis CAN | 10E |
| CAN E | Chassis CAN | 11B |
| CAN E | Chassis CAN | 4E |
| Code 233 | DISTRONIC PLUS | 13A |
| Code 427 | 7-speed automatic transmission | 6H |
| M16/6 | Throttle valve actuator | 4C |
| N10/1 | Front SAM control unit with fuse and relay module | 2D |
| N3/10 | ME-SFI [ME] control unit | 7D |
| N30/4 | Electronic Stability Program control unit | 13D |
| N30/7 | Premium Electronic Stability Program control unit | 13D |
| N62/1 | Radar sensors control unit | 14A |
| S16/2 | Backup lamp switch | 2H |
| S40/3 | Clutch pedal switch | 10G |
| U24 | Valid for manual transmission | 9G |
| U24 | Valid for manual transmission | 1H |
| U909 | Valid for DISTRONIC PLUS | 11D |
| U999 | Not valid with DISTRONIC PLUS | 11D |
| Y3/8 | Fully integrated transmission control unit | 7J |
