Overview of system components, Active Body Control (ABC) - GF32.50-P-9997RK

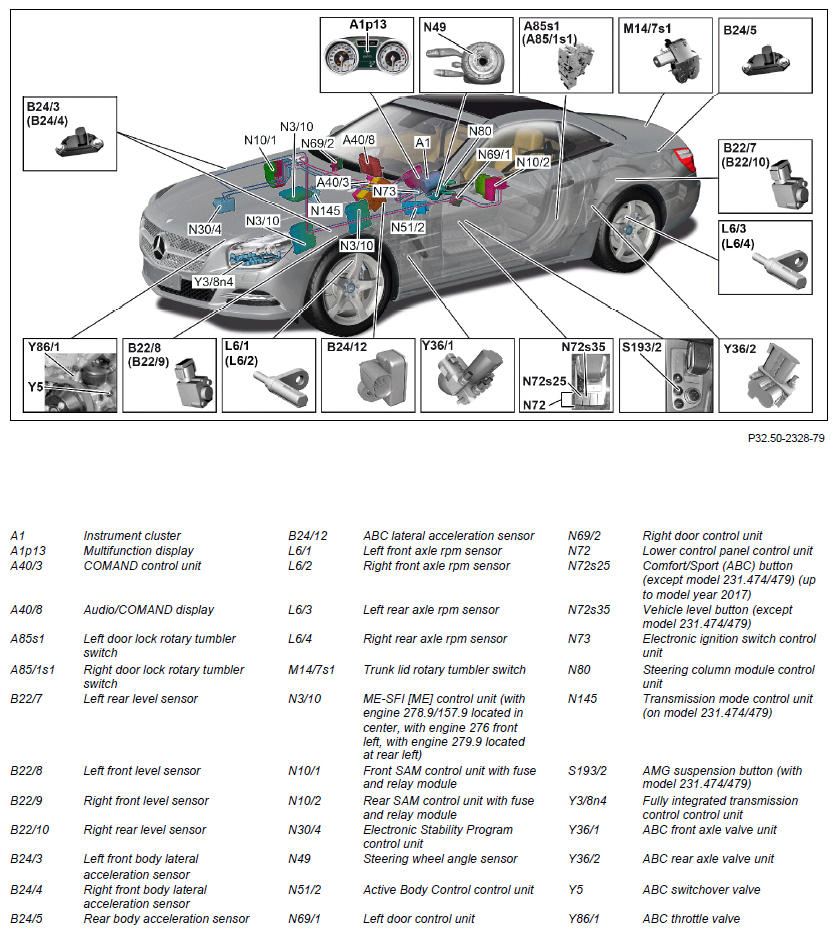

MODEL 231 with CODE 487 (Active Body Control (ABC))
Shown on model 231
Shown on model 231 as of model year 2017 (except model 231.474/231.479)

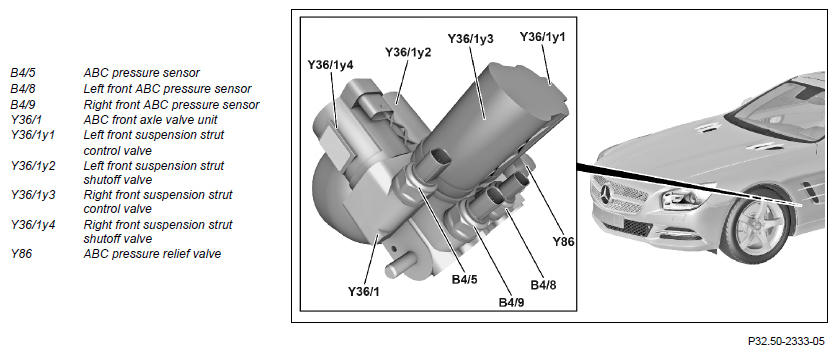

Shown on front axle ABC valve unit

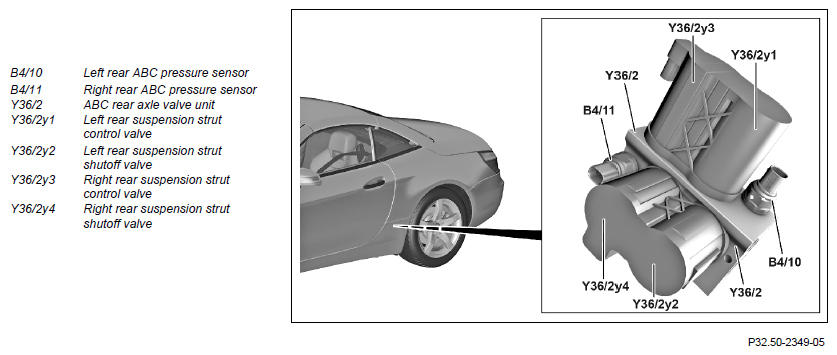

Shown on rear axle ABC valve unit
| Component description for instrument cluster | A1, A1p13 | GF54.30-P-6000RK | |
| Component description for COMAND controller unit | Model 231 up to model year 2017 with code 487 (Active Body Control (ABC)) |
GF82.85-P-3136RK | |
| Model 231 as of model year 2017 with code 487 (Active Body Control (ABC)) A40/3 |
GF82.85-P-3136RKM | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RK | |
| Component description for ME-SFI (ME) control unit | Model 231.4 with engine 276.8 with code 487 (Active Body Control (ABC)) | GF07.61-P-6000MMZ | |
| Model 231.4 with engine 276.9 with code 487 (Active Body Control (ABC)) | GF07.61-P-6000MME | ||
| Model 231 with engine 157.9 with code 487 (Active Body Control (ABC)) | GF07.61-P-6000MMF | ||
| Model 231.4 with engine 279.9 with code 487 (Active Body Control (ABC)) N3/10 | GF07.61-P-6000MUA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RK | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RK | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RK | |
| ABC control unit, component description | N51/2 | GF32.50-P-4501RK | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RK | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RK | |

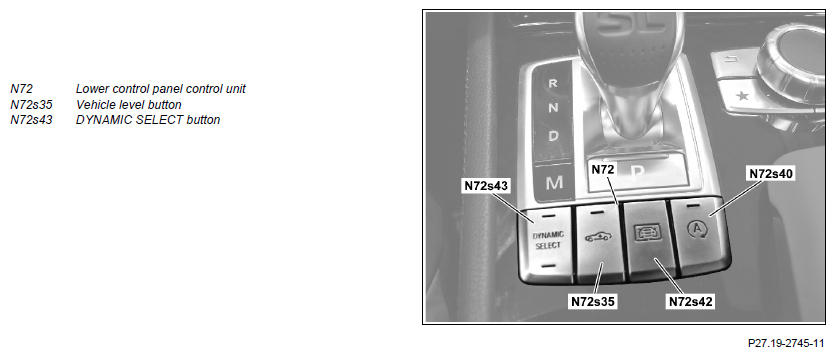

| Lower control panel control unit, component description | Model 231 (except 231.474/479) with code 487 (Active Body Control (ABC)) N72, N72s25, N72s35, N72s43 |
GF54.21-P-6060RK | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RK | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RK | |
| Component description for transmission mode control unit | N145, S193/2 | GF27.19-P-1350AHJ | |
| Component description for fully integrated transmission control unit | Model 231.4 with transmission 722.931 with code 487 (Active Body Control (ABC)) | GF27.60-P-5165AHJ | |
| Model 231 with transmission 722.9 (except 722.931) with code 487 (Active Body Control (ABC)) Y38n4 |
GF27.60-P-5165AHP | ||
| Table of contents for function description of Active Body Control (ABC) | GF32.50-P-0999RK |
