Remove/install upper control arm - AR33.20-P-0500RK
MODEL 231
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on Active Body Control suspension | AH32.50-P-0001-01LF | ||
| Notes on Active Body Control suspension | AH32.50-P-0001-01N | ||
| Remove/install | |||
| 1 | Remove front wheel | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050EW | ||
| 2.1 | Relieve pressure in front axle ABC system | MODEL 231.### ## up to 021273 with CODE 487 (Active Body Control (ABC)) |
AR32.50-P-0001-01N |
| *BA32.50-P-1001-02B | |||
| 2.2 | Release pressure in ABC system using Star Diagnosis | MODEL 231.### ## as of 021274 with CODE 487 (Active Body Control (ABC)) |
AD00.00-P-2000-04A |
| AR32.50-P-0001-01LF | |||

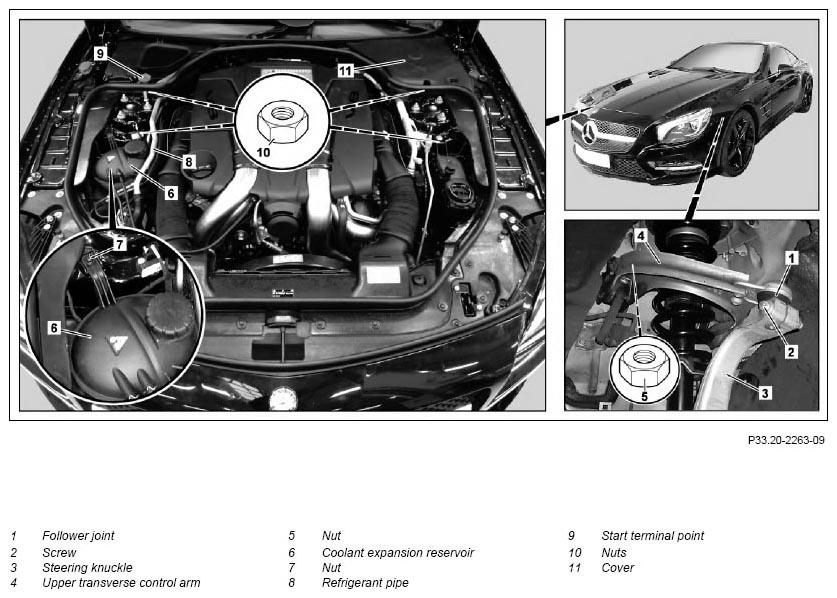

| 3 | Unscrew nut (5) and remove level sensor connecting rod from upper transverse control arm (4) | When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the of the parts will be reduced. |
*BA82.10-P-1001-01A |
| 4 | Unscrew nut, pull out bolt (2) and remove upper ball joint (1) from steering knuckle (3) | *BA33.20-P-1006-01S | |
| 5 | Secure steering knuckle (3) using cable tie to prevent it from tilting away | Do not stretch the brake hose and cables. Otherwise they could be damaged. |
|
| Left transverse control arm | |||
| 6 | Remove cover (11) | ||
| 7 | Detach upper transverse control arm (4) from front end | *BA33.20-P-1005-01S | |
| 8 | Check upper ball joint (1) | Remove/install follower joint of steering knuckle bearing |
AR33.20-P-0427RK |
| Right transverse control arm | |||
| 9 | Detach start terminal point (9) and place to one side with lines still connected | ||
| 10 | Unhook A/C line (8) from coolant expansion reservoir (6) | ||
| 11 | Remove nut (7) and place coolant expansion reservoir (6) to one side with lines still connected | ||
| 12 | Detach upper transverse control arm (4) from front end | *BA33.20-P-1005-01S | |
| 13 | Check upper ball joint (1) | Remove/install follower joint of steering knuckle bearing |
AR33.20-P-0427RK |
| 14 | Check rubber mount of upper transverse control arm (4) | ||
| 15 | Install in the reverse order | ||
| 16 | Fill and bleed ABC system | MODEL 231 with CODE 487 (Active Body Control (ABC)) |
AR32.50-P-0021SX |
ACTIVE BODY CONTROL, LINES
| Number | Designation | MODEL 231 with CODE 487 | ||
|---|---|---|---|---|
| BA32.50-P-1001-02B | Bleed screw on soldered fitting in hydraulic line | M10 x 1 | Nm | 20 |
WHEEL CONTROL, HUB
| Number | Designation | Model 231 | ||
|---|---|---|---|---|
| BA33.20-P-1005-01S |
Nut, upper transverse control arm to body |
Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | ||
WHEEL CONTROL, HUB
| Number | Designation | Model 231 | |
|---|---|---|---|
| BA33.20-P-1006-01S | Nut, upper ball joint for upper transverse control arm to steering knuckle | Nm | 65 |
FRONT AXLE LEVEL SENSOR
| Number | Designation | MODEL 231 | |
|---|---|---|---|
| BA82.10-P-1001-01A | Nut, level sensor link rod to upper control arm | Nm | 10 |
