Remove/install oil lines of oil cooling for automatic transmission - AR27.55-P-0600LFC
TRANSMISSION 722.93 in MODEL 217 with ENGINE 279
TRANSMISSION 722.93 in MODEL 222 with ENGINE 277, 279
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove lower engine compartment paneling | AR61.20-P-1105LF | |
| 2 | Remove front exhaust system | AR49.10-P-7100LF | |
| 3 | Remove air filter | ||

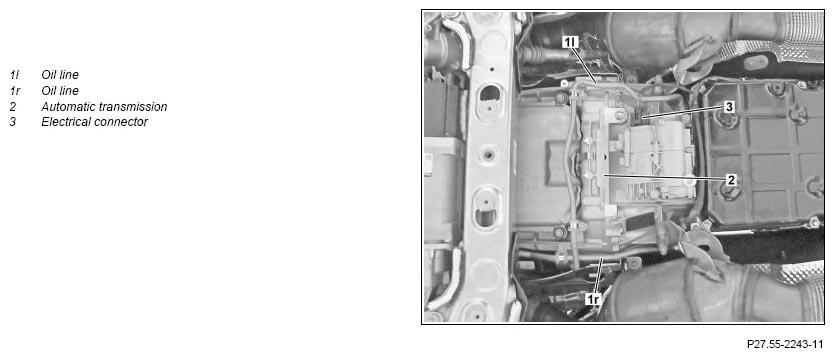

| 4 | Clean area around oil lines (1l, 1r) at automatic transmission (2) | ||
| 5 | Detach oil lines (1l, 1r) from the automatic transmission (2) and seal using suitable stop plugs | *BA27.55-P-1007-01D | |
| Figure | |||
| 6 | Unscrew clamps of oil lines (1l, 1r) | *BA27.55-P-1006-01D | |
| *BA27.55-P-1004-01D | |||
| 7 | Clean area around oil lines (1l, 1r) at oil cooler | ||
| 8 | Detach oil lines (1l, 1r) from oil cooler and seal using suitable stop plugs | AR27.10-P-0501-03LF | |
| Figure | |||
| 9 | Remove oil lines (1l, 1r) | ||
| 10 | Install in the reverse order | ||
| 11 | Check oil level in automatic transmission (2) and correct if necessary | AR27.00-P-0270W | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run and check automatic transmission (2) for function and leaks |
OIL COOLING
| Number | Designation | Transmission 722.9 | |
|---|---|---|---|
| BA27.55-P-1004-01D | Bolt, clamp to oil line | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 722.9 | |
|---|---|---|---|
| BA27.55-P-1006-01D | Bolt, clamp of oil cooler oil line to engine oil pan | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 722.9 | |
|---|---|---|---|
| BA27.55-P-1007-01D | Oil cooler oil line/oil supply line to transfer case | Nm | 12 |
