Remove/install automatic transmission fluid cooler - AR27.55-P-1000LF

TRANSMISSION 722.9 in MODEL 217 with ENGINE 157

TRANSMISSION 722.9 in MODEL 217 with ENGINE 276.8

TRANSMISSION 722.9 in MODEL 217 with ENGINE 278

TRANSMISSION 722.9 in MODEL 217 with ENGINE 279

TRANSMISSION 722.9 in MODEL 222 with ENGINE 157

TRANSMISSION 722.9 in MODEL 222 with ENGINE 276.8

TRANSMISSION 722.9 in MODEL 222 with ENGINE 277, 279

TRANSMISSION 722.9 in MODEL 222 with ENGINE 278

TRANSMISSION 722.9 in MODEL 222 with ENGINE 642

TRANSMISSION 724.2 in MODEL 222 with ENGINE 276

TRANSMISSION 725.0 in MODEL 217, 222 with ENGINE 278

TRANSMISSION 725.0 in MODEL 222 with ENGINE 276

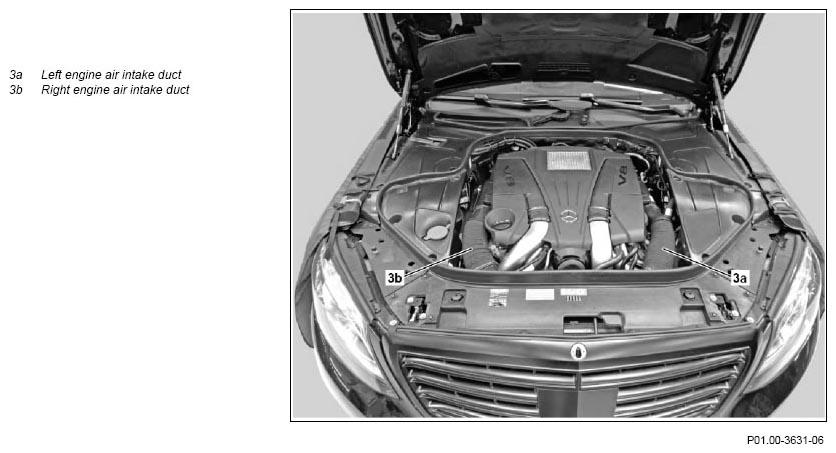

Shown on engine 278

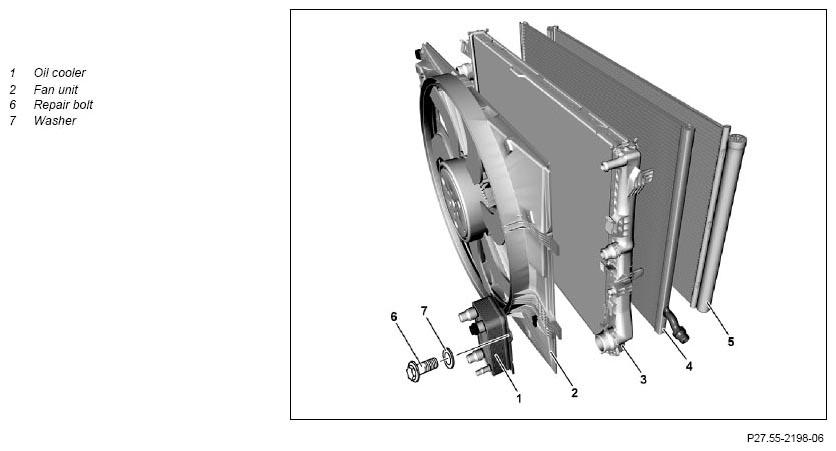

Shown: radiator package on engine 278

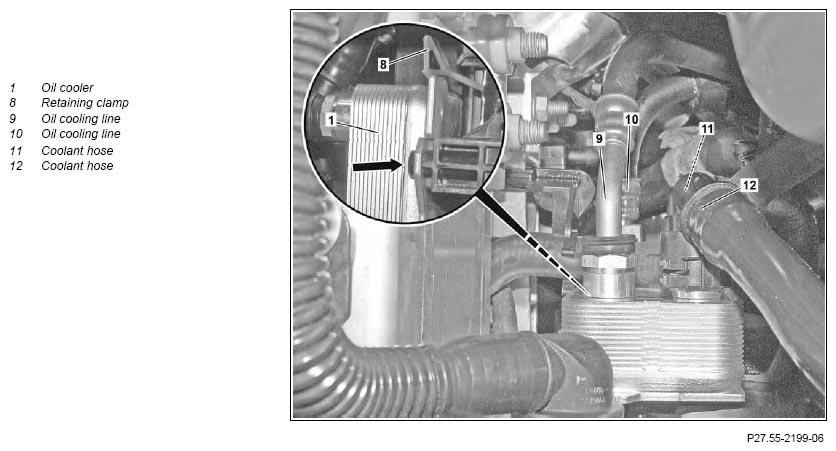

Shown: right front engine compartment on engine 278

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove left engine air intake duct (3a)	Transmission 722.9 in model 217 with engine 276.8 Transmission 722.9 in model 222 with engine 276.8 Transmission 725.0 in model 222 with engine 276
2	Remove right engine air intake duct (3b)	Transmission 722.9 in model 217 with engine 157 Transmission 722.9 in model 222 with engine 157 Transmission 722.9 in model 222 with engine 277, 279 Transmission 725.0 in model 217, 222 with engine 278
3	Drain coolant		AR20.00-P-1142LF
4	Detach oil cooling lines (9, 10) from oil cooler (1) and seal with suitable stop plugs	Transmission 722.9 in model 217, 222 with engine 276.8 Transmission 722.9 in model 222 with engine 642 Transmission 724.2 in model 222 with engine 276.9 Transmission 725.0 in model 222 with engine 276 The oil cooler (1) is located on the left side of the fan unit (2). Transmission 722.9 in model 217, 222 with engine 157 Transmission 722.9 in model 217, 222 with engine 278 Transmission 722.9 in model 222 with engine 277, 279 Transmission 722.93 in model 217 with engine 279 Transmission 725.0 in model 217, 222 with engine 278 The oil cooler (1) is located on the right side of the fan unit (2).	AR27.10-P-0501-03LF
		Record plug	Figure
5	Detach coolant hoses (11, 12) from oil cooler (1) and seal using suitable stop plugs		AR20.20-P-7441-01RQ
		Record plug	Figure
6	Push retaining clip (8) up and remove oil cooler (1)	Carefully push up the retaining clip (8). The retaining clip (8) will otherwise be damaged. If retaining clamp (8) is damaged ↓ Secure oil cooler (1) to fan unit (2) at indicated position (arrow) using repair bolt (6) and washer (7).
7	Install in the reverse order
8	Pour in coolant and bleed cooling system		AR20.00-P-1142LF
	Check
9	Check fluid level in automatic transmission and adjust to correct level	Transmission 725.0 in model 217, 222 with engine 278 as of model year 2015 Transmission 725.0 in model 222 with engine 276 as of model year 2015	AR27.00-P-0270EWN
		Transmission 725.0 in model 217, 222 with engine 278 up to model year 2015 Transmission 725.0 in model 222 with engine 276 up to model year 2015	AR27.00-P-0270EWM
		Transmission 722.96 in model 217, 222 with engine 276.8 Transmission 722.96 in model 217, 222 with engine 278	AR27.00-P-0270SYZ
		Transmission 722.9 (except 722.96) in model 217, 222 with engine 157 Transmission 722.9 (except 722.96) in model 217, 222 with engine 276.8 Transmission 722.9 (except 722.96) in model 217, 222 with engine 278 Transmission 722.9 (except 722.96) in model 222 with engine 642 Transmission 722.93 in model 217 with engine 279	AR27.00-P-0270W
		Transmission 724.2 in model 222 with engine 276.9	AR27.00-P-0270EH
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Perform engine test run, and check oil cooling lines (9, 10) and engine cooling system for leaktightness
