Remove/install wheel bearing - AR33.20-P-0302LF
MODEL 217
MODEL 222
Shown on MODEL 222 without CODE M005 (4MATIC)
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Detach front wheel-and-tire assembly | ||
| AP40.10-P-4050HA | |||
| 2 | Remove bolt of front axle shaft | Model 217 Model 222 with code M005 (4MATIC) |
*BA33.30-P-1001-02H |
| 3 | Remove brake disk | AR42.10-P-0220LF | |

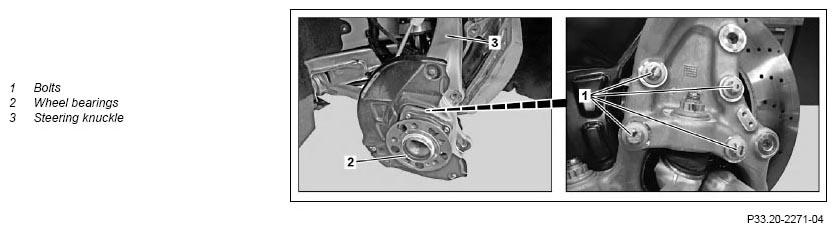

| 4 | Unscrew bolts (1) and remove wheel bearing (2) from steering knuckle (3) | *BA33.20-P-1007-01T | |
| Clean | |||
| 5 | Clean water drain and tread | AR35.20-P-0115-03CW | |
| 6 | Install in the reverse order |
WHEEL CONTROL, HUB
| Number | Designation | Model 217 | MODEL 222 except CODEZ07 | ||
|---|---|---|---|---|---|
| BA33.20-P-1007-01T | Bolt, wheel bearing to steering knuckle | Stage 1 | Nm | 80 | 80 |
| Stage 2 | ∠° | 45 | 45 | ||
WHEEL CONTROL, HUB
| Number | Designation | MODEL 222 with CODE Z07 | ||
|---|---|---|---|---|
| BA33.20-P-1007-01T | Bolt, wheel bearing to steering knuckle | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 45 | ||
FRONT AXLE SHAFT
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA33.30-P-1001-02H | Bolt, front axle shaft to wheel hub | Stage 1 | Nm | 160 | 160 |
| Stage 2 | losen ca. 90° | losen ca. 90° | |||
| Stage 3 | Nm | 220 | 220 | ||
| Stage 4 | ∠° | 45 | 45 | ||
