Remove/install track rod - AR46.40-P-0200LF

MODEL 217

MODEL 222

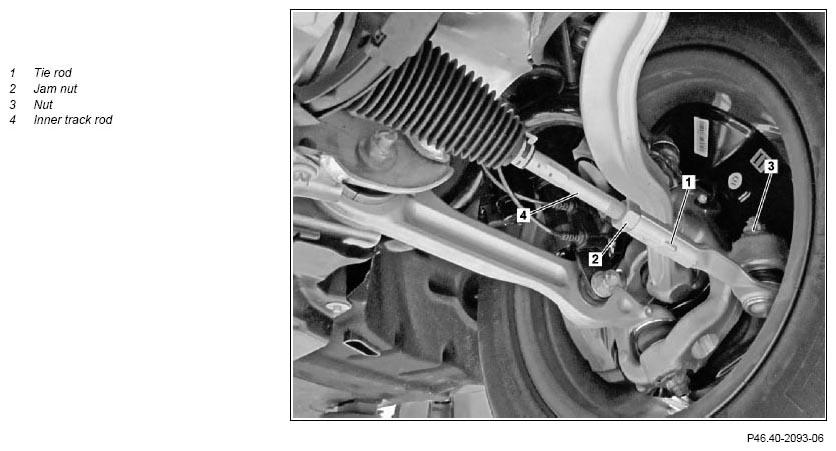

Fig 1: Track Rod Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Detach corresponding complete wheel
			AP40.10-P-4050HA
2	Counterhold tie rod (1) and release jam nut (2)	It is essential to counterhold the tie rod (1). Otherwise the tie rod (1) will be damaged. Once slackened, do not twist the jam nut (2) on the tie rod (4) any more. Jam nut, tie rod to inner tie rod	*BA46.40-P-1002-01M
3	Unscrew nut (3) and remove tie rod (1) from steering knuckle	The ball head must be counterheld and a impact wrench/driver must not be used. Otherwise the ball head or steering knuckle may be damaged. nut, tie rod to steering knuckle	*BA46.40-P-1001-01M
4	Unscrew tie rod (1) from inner tie rod (4)
5	Install in the reverse order
6	Perform wheel alignment check		AR40.20-P-0200LF

TIE ROD

Number	Designation			MODEL 217	MODEL 222
BA46.40-P-1001-01M	Nut, tie rod to steering knuckle	Stage 1	Nm	90	90
		Stage 2	∠°	90	90

TIE ROD

Number	Designation		MODEL 217	MODEL 222
BA46.40-P-1002-01M	Jam nut, tie rod to inner tie rod	Nm	65	65
