Remove/install camshaft Hall sensor - AR15.10-P-2000LFB
ENGINE 157, 278 in MODEL 217, 222
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

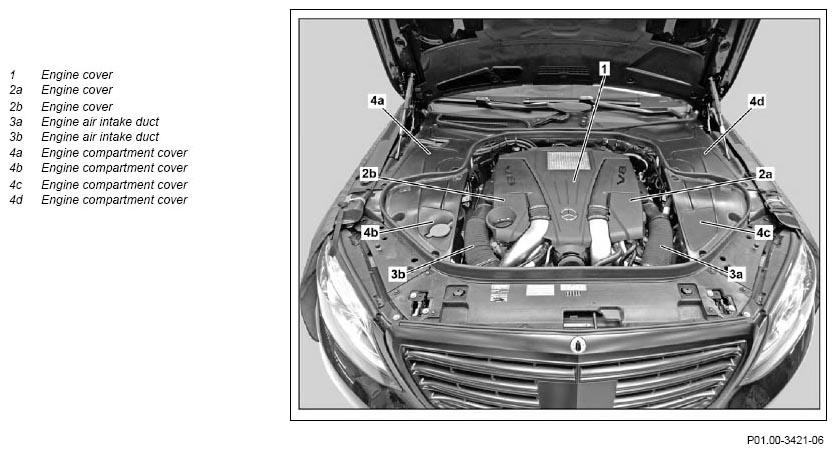

| 1.1 | Remove the respective engine cover (2a, 2b) | When removing intake camshaft Hall sensors (B6/4, B6/5) | |
| 1.2 | Remove respective engine air intake duct (3a, 3b) | When removing exhaust camshaft Hall sensors (B6/6, B6/7) | |
| 2 | Disconnect electrical connection from the respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) | ||

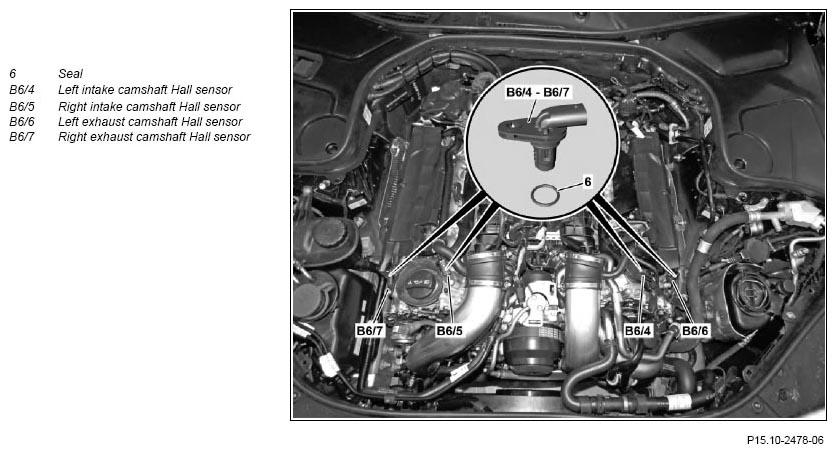

| 3 | Remove screw/bolt and pull respective camshaft Hall sensor (B6/4, B6/5, B6/6, B6/7) out of the cylinder head cover | *BA15.10-P-1006-03E | |
| 4 | Install in the reverse order | ||
| 5 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
POSITION SENSOR
| Number | Designation | ENGINE 157 | ENGINE 278 | |
|---|---|---|---|---|
| BA15.10-P-1006-03E | Bolt, camshaft Hall sensor to cylinder head cover | Nm | 8 | 8 |
