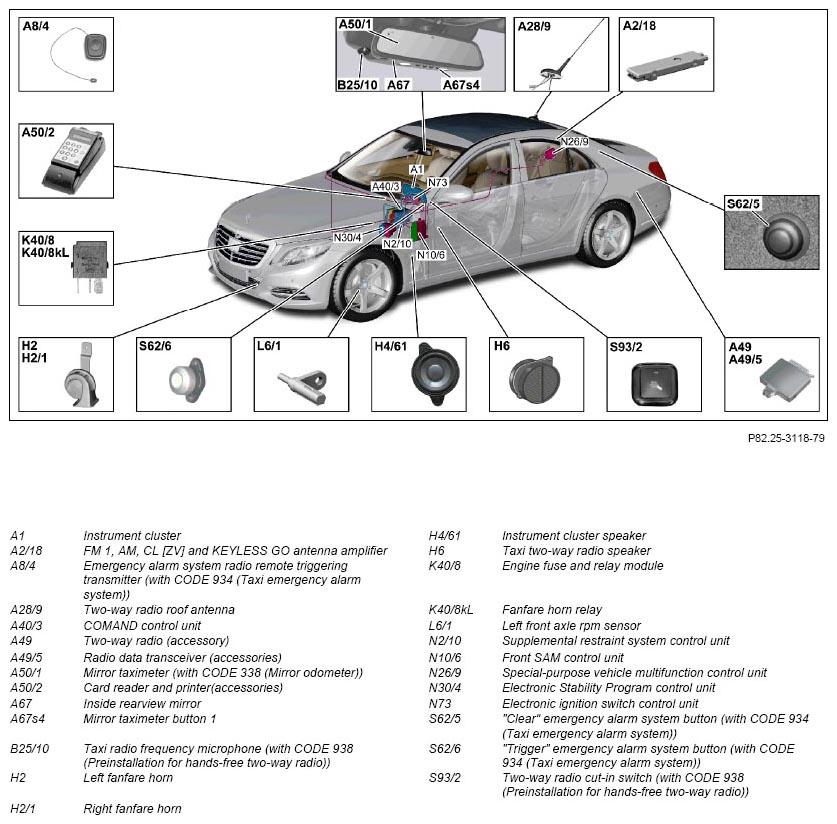

Overview of system components for taxi/rental vehicle - GF82.25-P-9890LF
MODEL 222
with CODE 965 (Electrical preinstallation, rental vehicles)
| Component description for instrument cluster | A1 | GF54.30-P-6000LF | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | MODEL 222 with CODE 965 (Electrical preinstallation, rental vehicles) without CODE Z07 (Top protection) N26/9 |
GF54.21-P-4010LF | |
| Component description for Electronic Stability Program control unit | MODEL 222 (except 222.004/057/104/157/163) with CODE 965 (Electrical preinstallation, rental vehicles) N30/4 | GF42.45-P-5119LF | |
| MODEL 222.004/057/104/157/163 with CODE 965 (Electrical preinstallation, rental vehicles) N30/4 |
GF42.45-P-5119LFH | ||
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Table of contents for function description for taxi/rental vehicle | GF82.25-P-0890LF |
