Notes on foam-protected insulation in body - AH60.00-P-0041-01A

MODEL 205

Foam items in area of sidewall (shown on left side of vehicle)

Foam part replacements are inserted using sealant at all the body contact surfaces.

The foam part contact surfaces on the body must be cleaned before insertion.

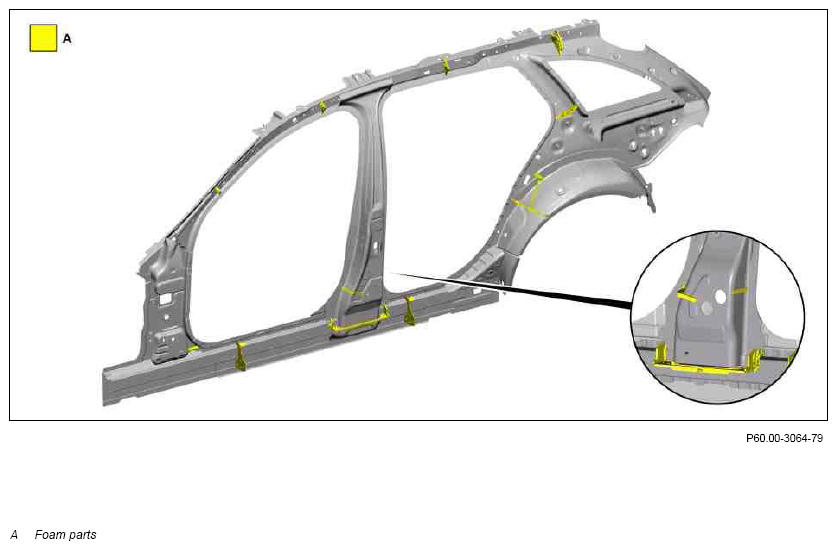

Fig 1: Identifying Sidewall Foam Area (Shown On Model 205.0)

Courtesy of MERCEDES-BENZ USA

MODEL 205.0

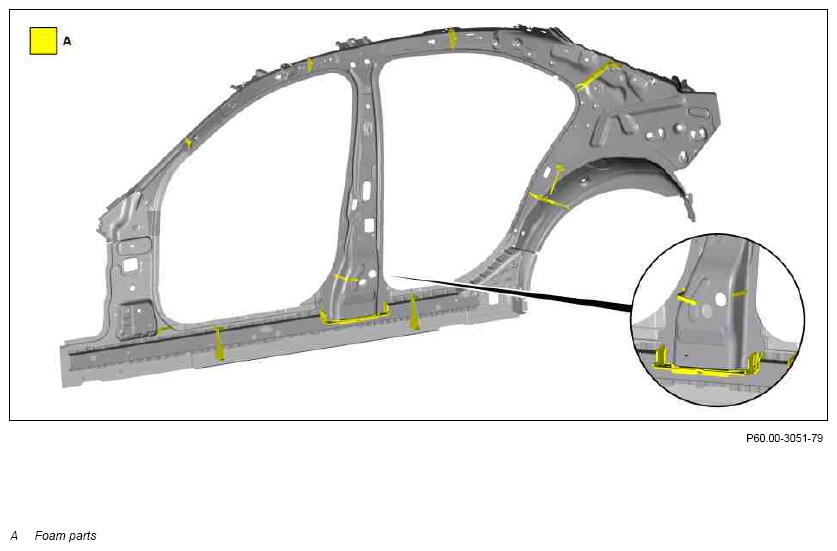

Fig 2: Identifying Sidewall Foam Area (Shown On Model 205.2)

Courtesy of MERCEDES-BENZ USA

MODEL 205.2
