Remove/install rear passenger compartment handset cradle - AR82.70-P-8972LF
MODEL 222
with CODE 855 (Telephone with handset in rear)
without CODE 224 (First-Class rear compartment)
MODEL 222
with CODE 856 (Business Telephony in the rear)
without CODE 224 (First-Class rear compartment)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Open stowage compartment in armrest | ||
| 2 | Remove rear handset (A34/16) | ||

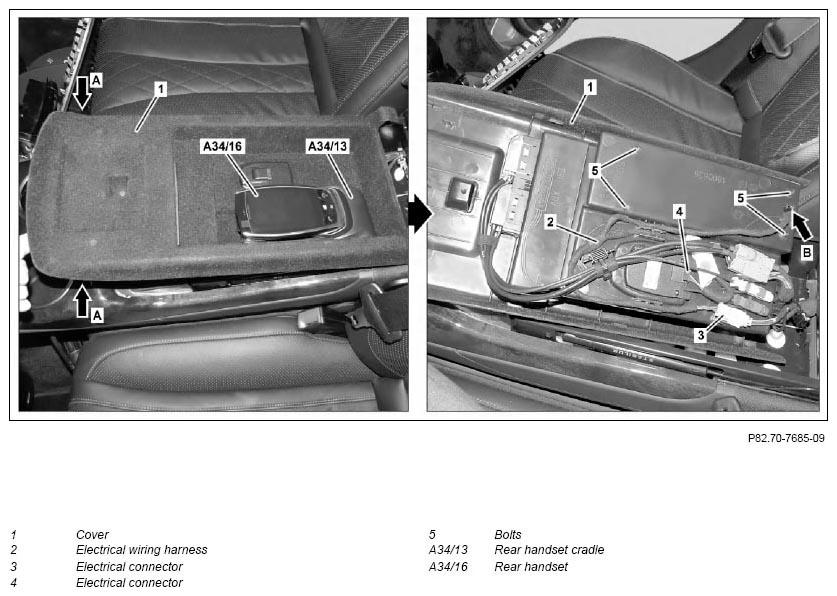

| 3 | Unclip cover (1) in area of arrows (A) with a long wedge, remove and turn around | Figure | |
| 4 | Remove electrical connector (3) from guide and disconnect | ||
| 5 | Disconnect electrical connector (4) | ||
| 6 | Expose wiring harness | ||
| 7 | Remove connector housing of electrical connector (3) at electrical wiring harness (2) | Fig 3 | |
| Fig 4 | |||
| 8 | Remove bolts (5) | ||
| 9 | Guide electrical wiring harness (2) through opening (arrow B) in cover (1) | ||
| 10 | Remove rear handset bracket (A34/13) | ||
| 11 | Install in the reverse order |
