Remove/install display in rear - AR82.60-P-7720LF
MODEL 222
with CODE P46 (Individual Entertainment in the rear)
Shown on left side of vehicle
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||

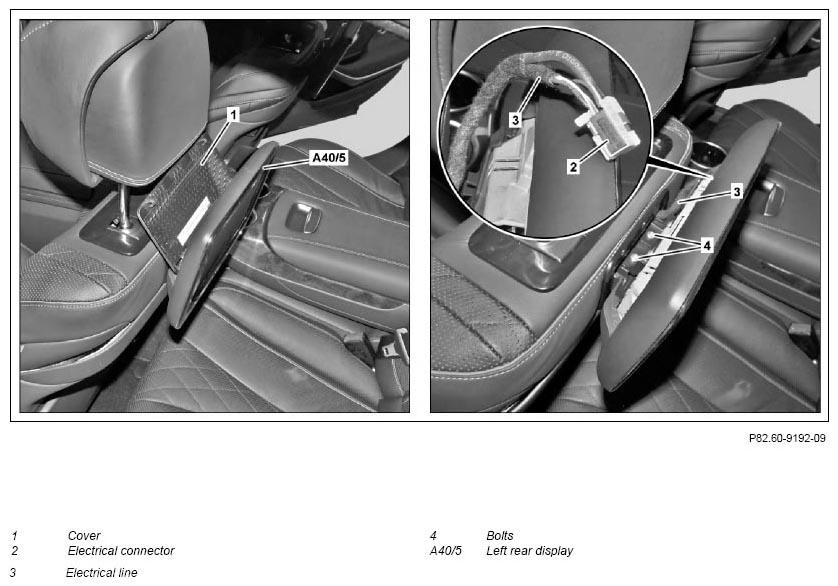

| 2 | Remove cover (1) | ||
| 3 | Disconnect electric plug (2) and remove electrical line (3) from guide at left rear display (A40/5) or right rear display (A40/6) | ||
| 4 | Remove screws/bolts (4) | ||

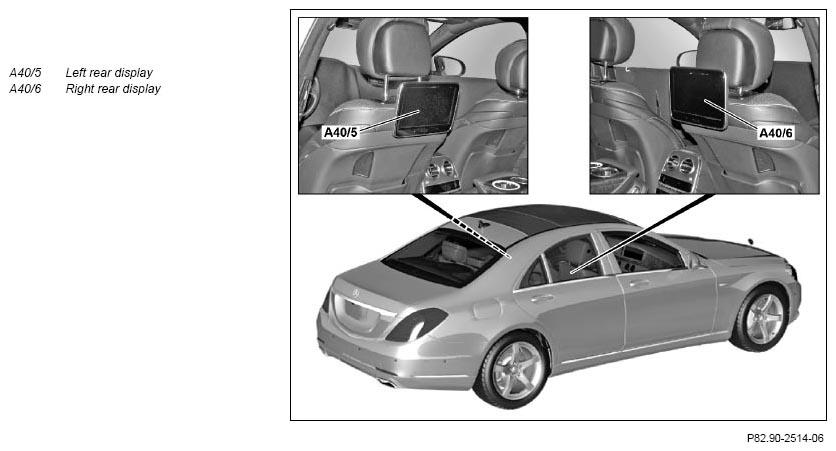

| 5 | Remove left rear display (A40/5) or right rear display (A40/6) from respective seat | ||
| 6 | Install in the reverse order |
