Remove/install antenna - AR82.70-P-8951LF

MODEL 222

Shown with CODE 413 (Panoramic glass sunroof with top sliding sunroof)

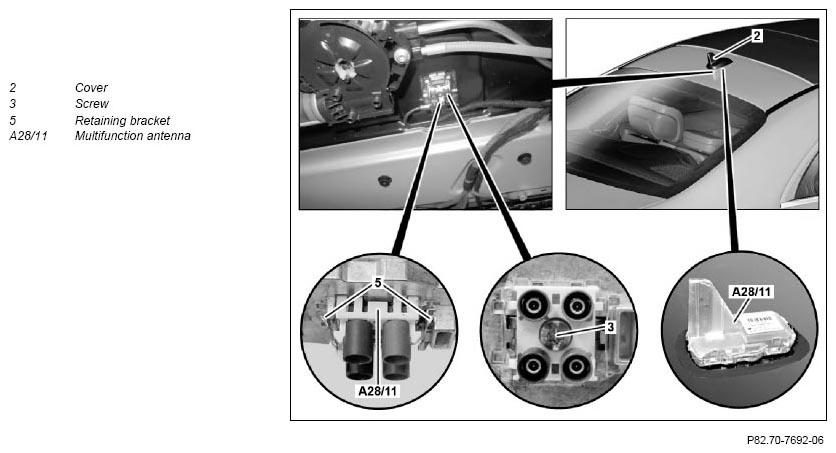

Fig 1: Antenna Remove/Install Components - Shown With Code 413

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (2) for multifunction antenna (A28/11)		AR82.70-P-8952EW
2	Remove headliner	Model 222.0/1 Do not kink headliner or bend excessively. Otherwise cracks and breaks may occur at the headliner. The headliner remains in the vehicle.	AR68.30-P-4300LF
3	Disconnect electrical connectors on the multifunction antenna (A28/11)	The number of electrical connectors at the multifunction antenna (A28/11) may vary depending on the equipment installed.
4	Remove screw/bolt (3) until retaining brackets (5) are released	Screw/bolt (3) remains at multifunction antenna (A28/11). Screw/bolt, antenna base to roof	*BA82.62-P-1001-01D
5	Remove multifunction antenna (A28/11) toward top
6	Install in the reverse order
