Remove/install amplifier for sound system - AR82.62-P-7723LF
MODEL 222
with CODE 810 (Sound system)
MODEL 222
with CODE 811 (Advanced sound system)
Shown with CODE 865 (TV tuner)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect Star Diagnosis and perform initial startup of sound system amplifier control unit (N40/3) | When replacing sound system amplifier control unit (N40/3). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||
| 3 | Remove tuner unit (A90/4) | MODEL 222 with CODE 536 (SIRIUS satellite radio) with CODE 810 (Sound system) MODEL 222 with CODE 536 (SIRIUS satellite radio) with CODE 811 (Advanced sound system) MODEL 222 with CODE 537 (Digital radio) with CODE 810 (Sound system) MODEL 222 with CODE 537 (Digital radio) with CODE 811 (Advanced sound system) MODEL 222 with CODE 810 (Sound system) with CODE 865 (TV receiver) MODEL 222 with CODE 811 (Advanced sound system) with CODE 865 (TV receiver) |
AR82.60-P-2002LF |

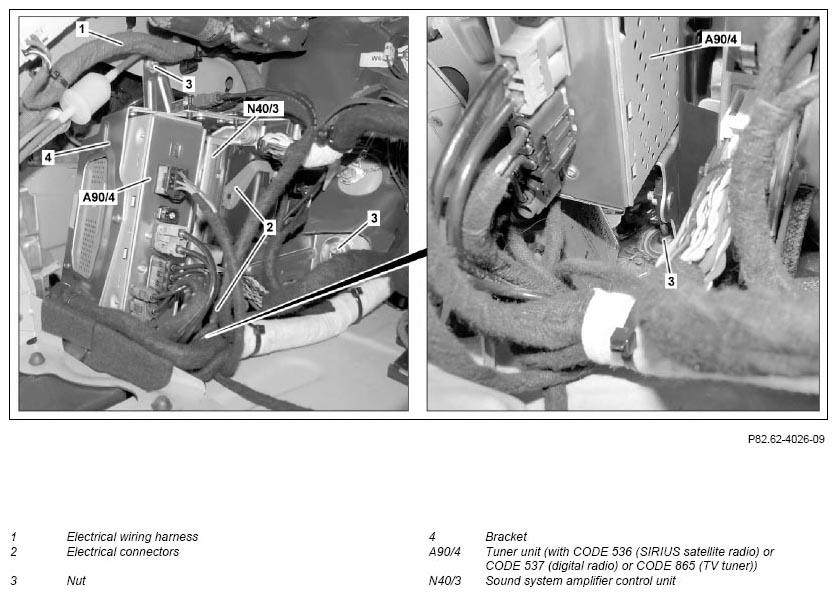

| 4 | Unfasten electrical wiring harness (1) and push to side | ||
| 5 | Unscrew nuts (3) | ||
| 6 | Remove sound system amplifier control unit (N40/3) with bracket (4) until electrical connectors (2) can be accessed | ||
| 7 | Separate electrical connectors (2) | ||

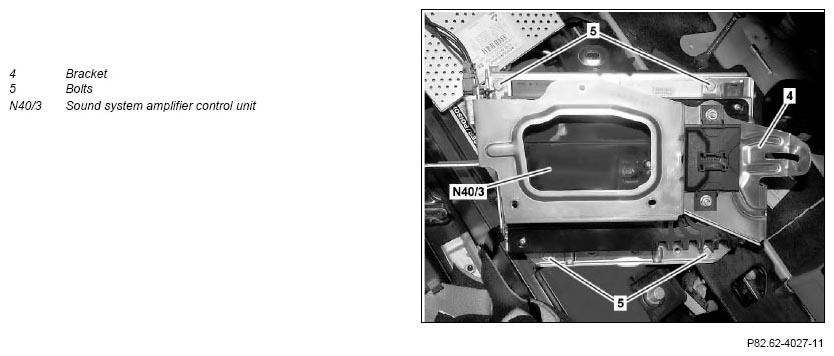

| 8 | Remove screws/bolts (5) and remove sound system amplifier control unit (N40/3) from bracket (4) | ||
| 9 | Install in the reverse order |
