Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary - AR40.20-P-0301LF

MODEL 217, 222

Fig 1: Inclinometer & Measuring Sensor
G11132510Courtesy of MERCEDES-BENZ USA

View of front axle of MODEL 222

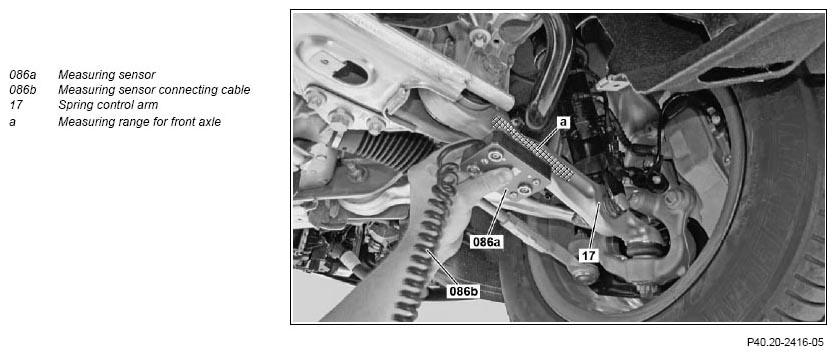

Fig 2: Checking Vehicle Level At Front Axle With Electronic Inclinometer
G11132511Courtesy of MERCEDES-BENZ USA

View of rear axle of MODEL 222

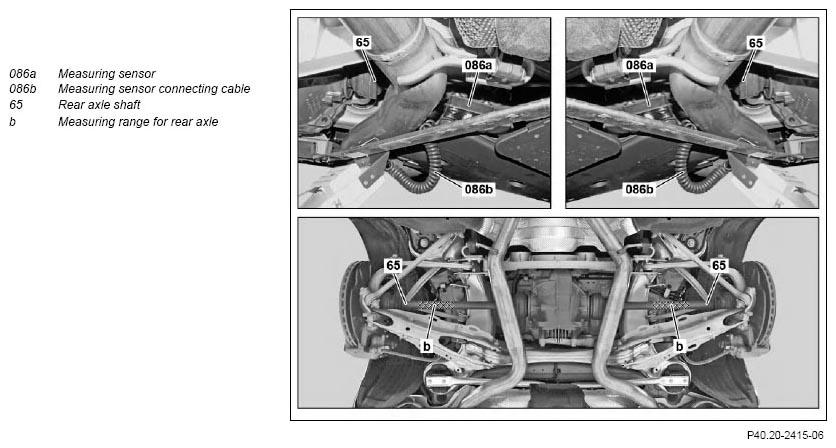

Fig 3: Checking Vehicle Level At Rear Axle With Electronic Inclinometer
G11132512Courtesy of MERCEDES-BENZ USA
INSPECT Check
1 Carry out preconditions and tests for vehicle level measurement   AR40.00-P-0202A
2 Clean front axle, rear axle measuring ranges (a, b) IMPORTANT This prevents any measuring errors.
3 Mount measuring sensor (086a) in the center on spring control arm (17) read off the vehicle level on the inclinometer (086) IMPORTANT The measurement sensor connecting cable (086b) of the measurement sensor (086a) must face towards the vehicle center.
IMPORTANT Fit measuring sensor (086a) as shown to front axle measuring range (a). Measure vehicle level at measuring point 1 (front left) and measuring point 2 (front right). Save measured values.
MODEL 217 Vehicle level - front axle		 *BE40.20-P-1001-02FA
    MODEL 222 Vehicle level - front axle *BE40.20-P-1001-02BA
4 Mount measuring sensor (086a) on the center of the rear axle shaft (65) and read off vehicle level on inclinometer (086) IMPORTANT The measurement sensor connecting cable (086b) of the measurement sensor (086a) must face towards the vehicle center.
IMPORTANT Fit measuring sensor (086a) as shown to rear axle measuring range (a). Measure vehicle level at measuring point 3 (rear left) and measuring point 4 (rear right). Save measured values.
MODEL 217 Vehicle level - rear axle		 *BE40.20-P-1001-03IA
    MODEL 222 Vehicle level - Rear axle *BE40.20-P-1001-03CA
5 Check maximum permissible difference in vehicle level between left and right side of vehicle at front axle IMPORTANT The specified test tolerance applies only when checking the vehicle level but not for calibration.
MODEL 217 Permissible difference in vehicle level between right and left side of vehicle		 *BE40.20-P-1002-02FA
    MODEL 222 Permissible difference in vehicle level between right and left side of vehicle *BE40.20-P-1002-02BA
6 Check maximum permissible difference in vehicle level between left and right side of vehicle at rear axle MODEL 217 Permissible difference in vehicle level at rear axle between right and left sides of vehicle *BE40.20-P-1002-03IA
    MODEL 222 Permissible difference in vehicle level between right and left side of vehicle *BE40.20-P-1002-03CA
  Adjust
7 Calibrate vehicle level using diagnostic system When the vehicle level is outside the test tolerance.
REFER TO SELF-DIAGNOSTIC SYSTEMS   If the vehicle level is not OK after calibration.
↓
Check mounting of level sensor for any deformation.		 AD00.00-P-2000-04B
8 Check headlamp adjustment Only if the vehicle level has been calibrated.
REFER TO MAINTENANCE   Model 217 AP82.10-P-8260S
REFER TO MAINTENANCE   Model 222 AP82.10-P-8260HA
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation MODEL 222 except 4MATIC except CODE 487 except CODE Z07 MODEL 222 with CODE 487
BE40.20-P-1001-02BA Vehicle level - front axle ∠° -3, 21 (±1, 2) +0, 95 (±1, 2)
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation MODEL 222 with 4MATIC MODEL 222 with CODE Z07
BE40.20-P-1001-02BA Vehicle level - front axle ∠° -0, 64 (±1, 2) +1, 85 (±1, 3)
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation MODEL 222 AMG except 4MATIC MODEL 222 AMG with 4MATIC
BE40.20-P-1001-02BA Vehicle level - front axle ∠° +0, 95 (±1, 2) -0, 16 (±0, 7)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 217.382/482 except code 494/487 Model 217.382/482 with code 494 except code 487
BE40.20-P-1001-02FA Vehicle level - front axle ∠° -4, 73 (±1, 2) -3, 97 (±1, 2)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 217.382/482 with code 487 Model 217.364/384/385
BE40.20-P-1001-02FA Vehicle level - front axle ∠° 0, 2 (±1, 2) -1, 39 (±1, 2)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation AMG model 217.377/379/477/479 AMG model 217.378/478 except code 494
BE40.20-P-1001-02FA Vehicle level - front axle ∠° 0, 2 (±1, 2) -2, 9 (±1, 2)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation AMG model 217.378/478 with code 494
BE40.20-P-1001-02FA Vehicle level - front axle ∠° -1, 39 (±1, 2)
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation MODEL 222 except 4MATIC, except CODE 487/Z07 MODEL 222 with CODE 487
BE40.20-P-1001-03CA Vehicle level - Rear axle ∠° -2, 40 (±0, 8) -2, 40 (±0, 8)
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation MODEL 222 with 4MATIC MODEL 222 with CODE Z07
BE40.20-P-1001-03CA Vehicle level - Rear axle ∠° -2, 40 (±0, 8) -0, 98 (±0, 8)
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation MODEL 222 AMG, except 4MATIC MODEL 222 AMG, with 4MATIC
BE40.20-P-1001-03CA Vehicle level - Rear axle ∠° -2, 40 (±0, 8) -2, 03 (±0, 8)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation Model 217.382/482 except code 494/487 Model 217.382/482 with code 494 except code 487
BE40.20-P-1001-03IA Vehicle level - rear axle ∠° -3, 36 (±0, 8) -2, 88 (±0, 8)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation Model 217.382/482 with code 487 Model 217.364/384/385
BE40.20-P-1001-03IA Vehicle level - rear axle ∠° -2, 88 (±0, 8) -2, 88 (±0, 8)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation AMG model 217.377/379/477/479 AMG model 217.378/478 except code 494
BE40.20-P-1001-03IA Vehicle level - rear axle ∠° -2, 88 (±0, 8) -3, 84 (±0, 8)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation AMG model 217.378/478 with code 494
BE40.20-P-1001-03IA Vehicle level - rear axle ∠° -2, 88 (±0, 8)
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation MODEL 222 except 4MATIC except CODE 487 except CODE Z07 MODEL 222 with CODE 487
BE40.20-P-1002-02BA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 8
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation MODEL 222 with 4MATIC MODEL 222 with CODE Z07
BE40.20-P-1002-02BA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 6 0, 8
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation MODEL 222 AMG except 4MATIC MODEL 222 AMG with 4MATIC
BE40.20-P-1002-02BA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 7
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 217.382/482 except code 494/487 Model 217.382/482 with code 494 except code 487
BE40.20-P-1002-02FA Permissible difference in vehicle level between right and left side of vehicle ∠° 1, 2 1, 2
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 217.382/482 with code 487 Model 217.364/384/385
BE40.20-P-1002-02FA Permissible difference in vehicle level between right and left side of vehicle ∠° 1, 2 1, 2
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation AMG model 217.377/379/477/479 AMG model 217.378/478 except code 494
BE40.20-P-1002-02FA Permissible difference in vehicle level between right and left side of vehicle ∠° 1, 2 1, 2
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation AMG model 217.378/478 with code 494
BE40.20-P-1002-02FA Permissible difference in vehicle level between right and left side of vehicle ∠° 1, 2
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation MODEL 222 except 4MATIC, except CODE 487/Z07 MODEL 222 with CODE 487
BE40.20-P-1002-03CA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 5 0, 5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation MODEL 222 with 4MATIC MODEL 222 with CODE Z07
BE40.20-P-1002-03CA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 5 0, 5
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation MODEL 222 AMG, except 4MATIC MODEL 222 AMG, with 4MATIC
BE40.20-P-1002-03CA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 5 0, 5
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation Model 217.382/482 except code 494/487 Model 217.382/482 with code 494 except code 487
BE40.20-P-1002-03IA Permissible difference in vehicle level at rear axle between right and left sides of vehicle ∠° 0, 8 0, 8
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation Model 217.382/482 with code 487 Model 217.364/384/385
BE40.20-P-1002-03IA Permissible difference in vehicle level at rear axle between right and left sides of vehicle ∠° 0, 8 0, 8
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation AMG model 217.377/379/477/479 AMG model 217.378/478 except code 494
BE40.20-P-1002-03IA Permissible difference in vehicle level at rear axle between right and left sides of vehicle ∠° 0, 8 0, 8
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation AMG model 217.378/478 with code 494
BE40.20-P-1002-03IA Permissible difference in vehicle level at rear axle between right and left sides of vehicle ∠° 0, 8
