Adjust rear-axle toe - AR40.20-P-0261LF
MODEL 217
MODEL 222
| Adjust | |||

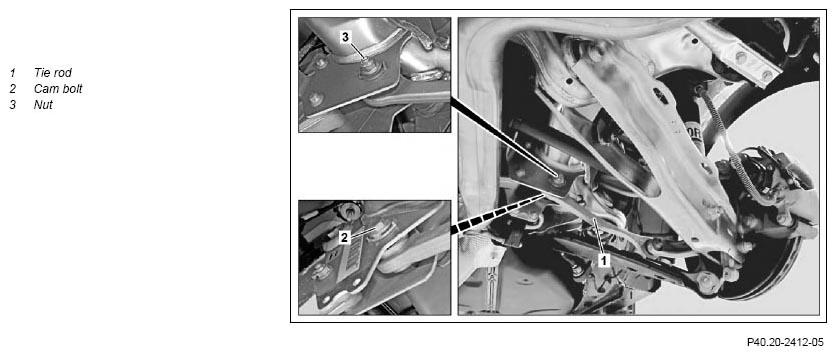

| 1 | Loosen nut (3) | ||
| 2 | Adjust toe using cam bolt (2) | Model 222.004/032/057/082/104/123/132/157/162/163/165/982 except code 487 (Active Body Control (ABC)) Model 222.004/032/057/082/104/123/132/157/162/163/165/982 with code 487 (Active Body Control (ABC)) Model 222.033/067/085/133/167/184/967/984/985 Model 222.077/177/179 Model 222.176/182/185/976 with code Z07 (Top protection) Model 222.176/182/976 except code 487 (Active Body Control (ABC)) except code Z07 (Top protection) Model 222.176/182/976 with code 487 (Active Body Control (ABC)) except code Z07 (Top protection) Model 222.178 Model 222.185 except code Z07 (Top protection) Total toe at vehicle level |
*BE40.20-P-1001-10W |
| Model 217.364/384/385 Model 217.377/379/382/477/479/482 except code 487 (Active Body Control (ABC)) except code 494 (US version) Model 217.377/379/382/477/479/482 with code 487 (Active Body Control (ABC)) Model 217.377/379/382/477/479/482 with code 494 (US version) except code 487 (Active Body Control (ABC)) Model 217.378 except code 494 (US version) Model 217.378 with code 494 (US version) Total toe at vehicle level |
*BE40.20-P-1001-10CA | ||
| Check | |||
| 3 | Determine permissible difference in rear axle toe between the right and left side of the vehicle | Model 222.004/032/057/082/104/123/132/157/162/163/165/982 except code 487 (Active Body Control (ABC)) Model 222.004/032/057/082/104/123/132/157/162/163/165/982 with code 487 (Active Body Control (ABC)) Model 222.033/067/085/133/167/184/967/984/985 Model 222.077/177/179 Model 222.176/182/185/976 with code Z07 (Top protection) Model 222.176/182/976 except code 487 (Active Body Control (ABC)) except code Z07 (Top protection) Model 222.176/182/976 with code 487 (Active Body Control (ABC)) except code Z07 (Top protection) Model 222.178 Model 222.185 except code Z07 (Top protection)Permissible difference in rear axle toe between right and left side of vehicle |
*BE40.20-P-1002-10W |
| Model 217.364/384/385 Model 217.377/379/382/477/479/482 except code 487 (Active Body Control (ABC)) except code 494 (US version) Model 217.377/379/382/477/479/482 with code 487 (Active Body Control (ABC)) Model 217.377/379/382/477/479/482 with code 494 (US version) except code 487 (Active Body Control (ABC)) Model 217.378 except code 494 (US version) Model 217.378 with code 494 (US version) Permissible difference in rear axle toe between right and left sides of vehicle If the specifications are not achieved: ↓ |
*BE40.20-P-1002-10CA | ||
| The tie rod (1) must be replaced. | AR35.20-P-0109LF | ||
| 4 | Tighten nut (3) and apply preservation agent to it | Cavity preservation, solvent-free (1 l container) | *BR00.45-Z-1003-05A |
| *BA35.20-P-1001-04L |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE TOE
| Number | Designation | Model 217.382/482 except code 494/487 | Model 217.382/482 with code 494 except code 487 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-10CA | Total toe at vehicle level | -3.84° | ∠° | - | - |
| -3.36° | ∠° | 0° 26' (±7') | - | ||
| -2.88° | ∠° | - | 0° 25' (±7') | ||
TEST AND ADJUSTMENT VALUES FOR REAR AXLE TOE
| Number | Designation | Model 217.382/482 with code 487 | Model 217.364/384/385 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-10CA | Total toe at vehicle level | -3.84° | ∠° | - | - |
| -3.36° | ∠° | - | - | ||
| -2.88° | ∠° | 0° 25' (±7') | 0° 25' (±7') | ||
TEST AND ADJUSTMENT VALUES FOR REAR AXLE TOE
| Number | Designation | AMG model 217.377/379/477/479 | AMG model 217.378/478 except code 494 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-10CA | Total toe at vehicle level | -3.84° | ∠° | - | 0° 26' (±7') |
| -3.36° | ∠° | - | - | ||
| -2.88° | ∠° | 0° 25' (±7') | - | ||
TEST AND ADJUSTMENT VALUES FOR REAR AXLE TOE
| Number | Designation | AMG model 217.378/478 with code 494 |
||
|---|---|---|---|---|
| BE40.20-P-1001-10CA | Total toe at vehicle level | -3.84° | ∠° | - |
| -3.36° | ∠° | - | ||
| -2.88° | ∠° | 0° 24' (±7') | ||
CHECK VALUES FOR REAR AXLE TOE
| Number | Designation | MODEL 222 except 4MATIC, except CODE 487/Z07 | MODEL 222 with CODE 487 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-10W | Total toe at vehicle level | -3.17° | ∠° | 0° 26' (±7') | 0° 26' (±7') |
| -2.42° | ∠° | - | - | ||
| -2.40° | ∠° | 0° 24' (±7') | 0° 24' (±7') | ||
| -2.03° | ∠° | - | - | ||
| -1.76° | ∠° | - | - | ||
| -1.64° | ∠° | - | - | ||
| -1.63° | ∠° | 0° 23' (±7') | 0° 23' (±7') | ||
| -0.98° | ∠° | - | - | ||
| -1.19° | ∠° | - | - | ||
CHECK VALUES FOR REAR AXLE TOE
| Number | Designation | MODEL 222 with 4MATIC | MODEL 222 with CODE Z07 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-10W | Total toe at vehicle level | -3.17° | ∠° | 0° 26' (±7') | - |
| -2.42° | ∠° | - | - | ||
| -2.40° | ∠° | 0° 24' (±7') | - | ||
| -2.03° | ∠° | - | - | ||
| -1.76° | ∠° | - | 0° 29' (±7') | ||
| -1.64° | ∠° | - | - | ||
| -1.63° | ∠° | 0° 23' (±7') | - | ||
| -0.98° | ∠° | - | 0° 26' (±7') | ||
| -1.19° | ∠° | - | 0° 23' (±7') | ||
CHECK VALUES FOR REAR AXLE TOE
| Number | Designation | MODEL 222 AMG, except 4MATIC | MODEL 222 AMG, with 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-10W | Total toe at vehicle level | -3.17° | ∠° | 0° 26' (±7') | - |
| -2.42° | ∠° | - | 0° 25' (±7') | ||
| -2.40° | ∠° | 0° 24' (±7') | - | ||
| -2.03° | ∠° | - | 0° 24' (±7') | ||
| -1.76° | ∠° | - | - | ||
| -1.64° | ∠° | - | 0° 24' (±7') | ||
| -1.63° | ∠° | 0° 23' (±7') | - | ||
| -0.98° | ∠° | - | - | ||
| -1.19° | ∠° | - | - | ||
TEST AND ADJUSTMENT VALUES FOR REAR AXLE TOE
| Number | Designation | Model 217.382/482 except code 494/487 | Model 217.382/482 with code 494 except code 487 | |
|---|---|---|---|---|
| BE40.20-P-1002-10CA | Permissible difference in rear axle toe between right and left sides of vehicle | ∠° | ±7' | ±7' |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE TOE
| Number | Designation | Model 217.382/482 with code 487 | Model 217.364/384/385 | |
|---|---|---|---|---|
| BE40.20-P-1002-10CA | Permissible difference in rear axle toe between right and left sides of vehicle | ∠° | ±7' | ±7' |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE TOE
| Number | Designation | AMG model 217.377/379/477/479 | AMG model 217.378/478 except code 494 | |
|---|---|---|---|---|
| BE40.20-P-1002-10CA | Permissible difference in rear axle toe between right and left sides of vehicle | ∠° | ±7' | ±7' |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE TOE
| Number | Designation | AMG model 217.378/478 with code 494 | |
|---|---|---|---|
| BE40.20-P-1002-10CA | Permissible difference in rear axle toe between right and left sides of vehicle | ∠° | ±7' |
CHECK VALUES FOR REAR AXLE TOE
| Number | Designation | MODEL 222 except 4MATIC, except CODE 487/Z07 | MODEL 222 with CODE 487 | |
|---|---|---|---|---|
| BE40.20-P-1002-10W | Permissible difference in rear axle toe between right and left side of vehicle | ∠° | ±7' | ±7' |
CHECK VALUES FOR REAR AXLE TOE
| Number | Designation | MODEL 222 with 4MATIC | MODEL 222 with CODE Z07 | |
|---|---|---|---|---|
| BE40.20-P-1002-10W | Permissible difference in rear axle toe between right and left side of vehicle | ∠° | ±7' | ±15' |
CHECK VALUES FOR REAR AXLE TOE
| Number | Designation | MODEL 222 AMG, except 4MATIC | MODEL 222 AMG, with 4MATIC | |
|---|---|---|---|---|
| BE40.20-P-1002-10W | Permissible difference in rear axle toe between right and left side of vehicle | ∠° | ±7' | ±7' |
TIE ROD
| Number | Designation | Model 217 | Model 222 | |
|---|---|---|---|---|
| BA35.20-P-1001-04L | Nut, tie rod to rear axle carrier | Nm | 80 | 80 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-05A | Cavity preservation, solvent-free (1 l container) | A 000 986 72 70 05 |
