Adjust front axle toe - AR40.20-P-0264LF

MODEL 217

MODEL 222

Fig 1: Adjusting Front Axle Toe (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 2: Adjusting Front Axle Toe (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: Adjusting Front Axle Toe (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Adjust
1	Deactivate easy entry and exit feature for steering wheel through COMAND Online in Vehicle settings menu	Depending on the version, the steering wheel and possibly also the driver's seat move to a different position when, for example, the driver door is opened or closed. The driver's seat may be damaged when the brake pedal jack is installed. Detailed procedure available in vehicle owner's manual.
2	Move front wheels to straight ahead position

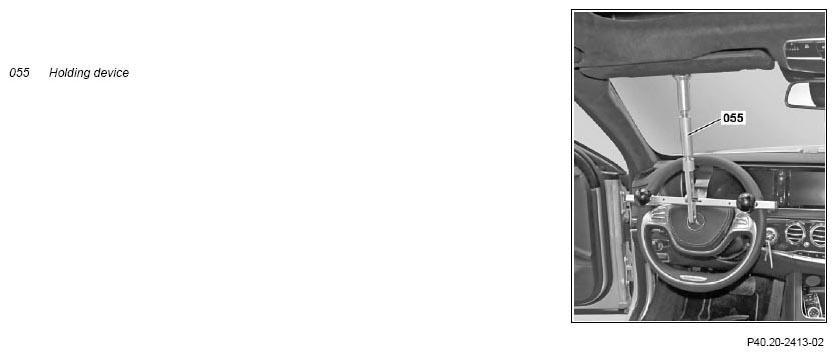

3	Fix steering wheel in center position using retainer (055); to do this, insert the retainer (055) in front of the sun visor	Protect the emblem in the steering wheel against damage. Otherwise the holding device (055) may make an indent on the emblem. Retainer device	Fig 4
	Check

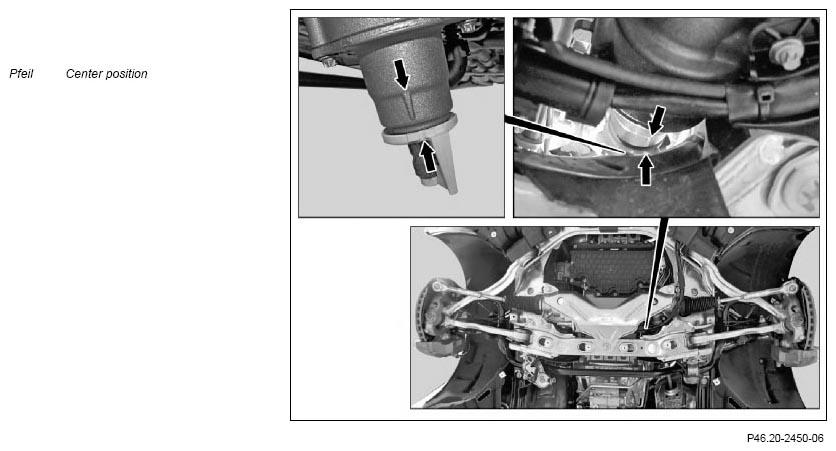

4	Check center positions (arrows) of steering gear and steering wheel	If the steering gear is not in the center position (arrows): ↓	AR46.20-P-0600-01RK
		Move steering wheel by one tooth only.	AR46.10-P-0100LF

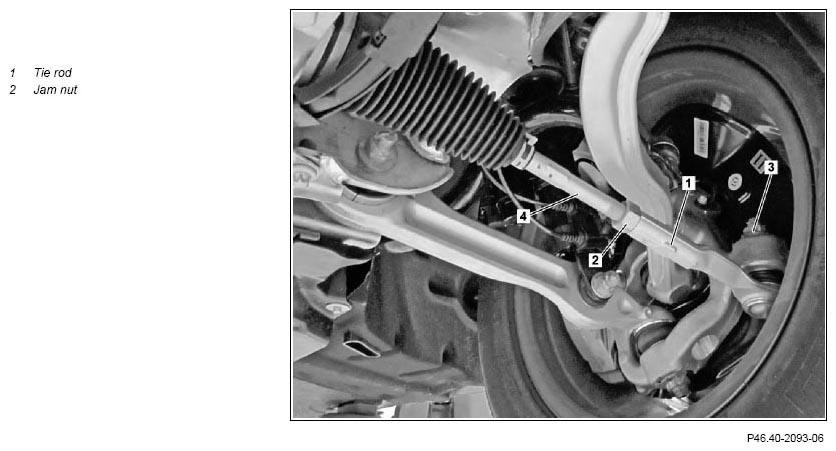

5	Release jam nuts (2) on tie rods (1)	Counterhold tie rods (1) while doing so. Otherwise the tie rods (1) will be damaged.
6	Rotate the tie rods (1) to adjust the toe	Model 222.004/032/057/082/104/123/132/157/162/163/165/982 with code 487 (Active Body Control (ABC)) Model 222.004/032/057/082/123/132/157/162/163/165/982 except code 487 (Active Body Control (ABC)) Model 222.033/085/133/167/967/985 Model 222.077/177/179 Model 222.176/182/185/976 with code Z07 (Top protection) Model 222.176/182/976 except code 487 (Active Body Control (ABC)) except code Z07 (Top protection) Model 222.176/182/976 with code 487 (Active Body Control (ABC)) except code Z07 (Top protection) Model 222.178 Model 222.185 except code Z07 (Top protection) Total front axle toe at vehicle level	*BE40.20-P-1001-07X
		Model 217.364/384/385 Model 217.377/379/382/477/479/482 except code 487 (Active Body Control (ABC)) except code 494 (US version) Model 217.377/379/382/477/479/482 with code 487 (Active Body Control (ABC)) Model 217.377/379/382/477/479/482 with code 494 (US version) except code 487 (Active Body Control (ABC)) Model 217.378 except code 494 (US version) Model 217.378 with code 494 (US version) Total front axle toe at vehicle level	*BE40.20-P-1001-07EA
7	Tighten lock nuts (2).	Counterhold tie rods (1) while doing so. Otherwise the tie rods (1) will be damaged. Jam nut, tie rod to inner tie rod	*BA46.40-P-1002-01M
8	Remove retainer (055)	Retainer device	Fig 4
	Check
9	Check boots for any twisting, align if necessary
10	Activate easy entry/exit feature for the steering wheel

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number	Designation			Model 217.382/482 except code 494/487	Model 217.382/482 with code 494 except code 487
BE40.20-P-1001-07EA	Total front axle toe at vehicle level	-4.73°	∠°	0° 14' (±10')	-
		-3.97°	∠°	-	0° 14' (±10')
		-2.89°	∠°	-	-
		-1.39°	∠°	-	-
		0.20°	∠°	-	-

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number	Designation			Model 217.382/482 with code 487	Model 217.364/384/385
BE40.20-P-1001-07EA	Total front axle toe at vehicle level	-4.73°	∠°	-	-
		-3.97°	∠°	-	-
		-2.89°	∠°	-	-
		-1.39°	∠°	-	0° 14' (±10')
		0.20°	∠°	0° 14' (±10')	-

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number	Designation			AMG model 217.377/379/477/479	AMG model 217.378/478 except code 494
BE40.20-P-1001-07EA	Total front axle toe at vehicle level	-4.73°	∠°	-	-
		-3.97°	∠°	-	-
		-2.89°	∠°	-	0° 2' (±10')
		-1.39°	∠°	-	-
		0.20°	∠°	0° 14' (±10')	-

TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number	Designation			AMG model 217.378/478 with code 494
BE40.20-P-1001-07EA	Total front axle toe at vehicle level	-4.73°	∠°	-
		-3.97°	∠°	-
		-2.89°	∠°	-
		-1.39°	∠°	0° 14' (±10')
		0.20°	∠°	-

CHECK VALUES FOR FRONT AXLE TOE

Number	Designation			MODEL 222 except 4MATIC, except CODE 487/Z07	MODEL 222 with CODE 487
BE40.20-P-1001-07X	Total front axle toe at vehicle level	-4.43°	∠°	0° 10' (±10')	-
		-3.21°	∠°	0° 10' (±10')	-
		-1.98°	∠°	0° 10' (±10')	-
		-1.85°	∠°	-	-
		-0.77°	∠°	-	-
		-0.64°	∠°	-	-
		-0.26°	∠°	-	0° 10' (±10')
		-0.16°	∠°	-	-
		+0.45°	∠°	-	-
		+0.54°	∠°	-	-
		+0.56°	∠°	-	-
		+0.95°	∠°	-	0° 10' (±10')
		+1.85°	∠°	-	-
		+2.16°	∠°	-	0° 10' (±10')
		+3.15°	∠°	-	-

CHECK VALUES FOR FRONT AXLE TOE

Number	Designation			MODEL 222 with 4MATIC	MODEL 222 with CODE Z07
BE40.20-P-1001-07X	Total front axle toe at vehicle level	-4.43°	∠°	-	-
		-3.21°	∠°	-	-
		-1.98°	∠°	-	-
		-1.85°	∠°	0° 10' (±10')	-
		-0.77°	∠°	-	-
		-0.64°	∠°	0° 10' (±10')	-
		-0.26°	∠°	-	-
		-0.16°	∠°	-	-
		+0.45°	∠°	-	-
		+0.54°	∠°	-	+0° 10' (±10')
		+0.56°	∠°	0° 10' (±10')	-
		+0.95°	∠°	-	-
		+1.85°	∠°	-	+0° 10' (±10')
		+2.16°	∠°	-	-
		+3.15°	∠°	-	+0° 10' (±10')

CHECK VALUES FOR FRONT AXLE TOE

Number	Designation			MODEL 222 AMG, except 4MATIC	MODEL 222 AMG, with 4MATIC
BE40.20-P-1001-07X	Total front axle toe at vehicle level	-4.43°	∠°	-	-
		-3.21°	∠°	-	-
		-1.98°	∠°	-	-
		-1.85°	∠°	-	-
		-0.77°	∠°	-	+0° 15' (±10')
		-0.64°	∠°	-	-
		-0.26°	∠°	+0° 10' (±10')	-
		-0.16°	∠°	-	+0° 9' (±10')
		+0.45°	∠°	-	+0° 4' (±10')
		+0.54°	∠°	-	-
		+0.56°	∠°	-	-
		+0.95°	∠°	+0° 10' (±10')	-
		+1.85°	∠°	-	-
		+2.16°	∠°	+0° 10' (±10')	-
		+3.15°	∠°	-	-

TIE ROD

Number	Designation		Model 217	Model 222
BA46.40-P-1002-01M	Jam nut, tie rod to inner tie rod	Nm	60	60

Fig 4: Identifying Retainer Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ USA
