Inspect front axle joint for play, inspect rubber boots - AP33.20-P-3353HA
MODEL 222
| Check | |||
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle using vehicle lift until the wheels are clear of the ground | ||

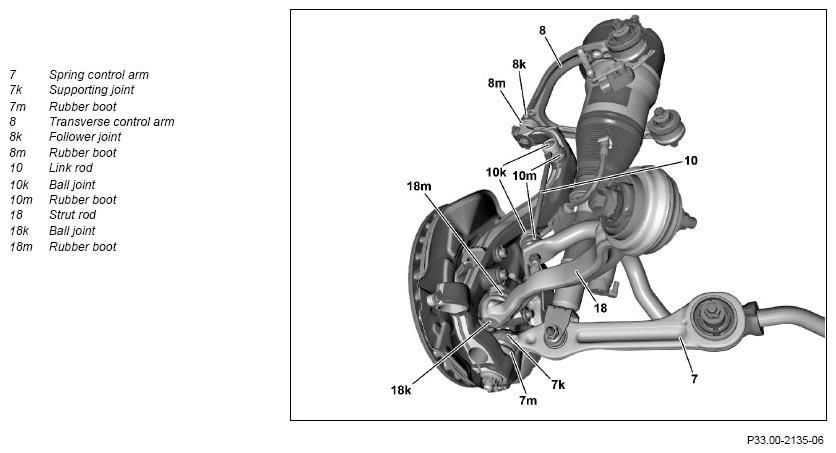

| 2 | Check rubber boots (7m) and supporting ball joints (7k) on spring control arm (7) | If there are problems: ↓ Replace spring control arm (7) subject to separate repair order. |
|
| 3 | Check rubber boots (8m) on upper ball joints (8k) of upper transverse control arm (8) | If there are problems: ↓ Replace transverse control arm (8) subject to separate repair order. |
|
| 4 | Check rubber boots (18m) and ball joints (18k) of strut rods (18) | If there are problems: ↓ Replace strut rod subject to separate repair order (18). |
|
| 5 | Check rubber boots (10m) and ball joints (10k) of link rods (10) | If there are problems: ↓ Replace link rod (10) subject to separate repair order. |
|
| 6 | Lower vehicle |
