Remove/install armrest at rear seat backrest - AR91.12-P-1745LFA

MODEL 222.0/1/9

with CODE 223 (Electrically adjustable rear bench seat)

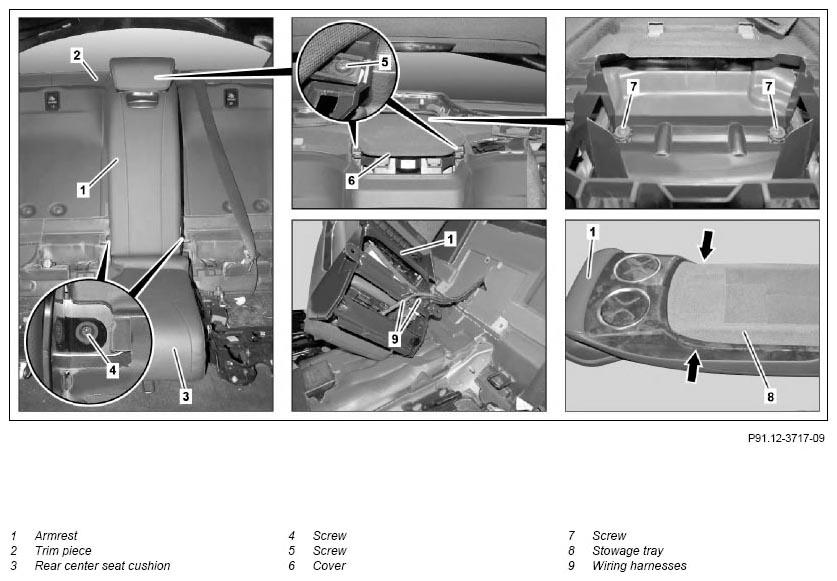

Fig 1: Armrest At Rear Seat Backrest Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove both rear backrests	MODEL 222.0/1/9 with CODE 223 (Electrically adjustable rear bench seat)	AR91.12-P-1620LFA
2	Remove trim piece (2) at rear on rear seat		AR68.30-P-1460LF
3	Fold out the armrest (1)
4	Open inside cover of the armrest (1)
5	Unclip stowage tray (8) in area of arrows using an assembly wedge, then remove and turn over	Mounting wedge	Fig 2
6	Disconnect electrical connectors from electrical wiring harnesses (9)	The number of electric wiring harnesses (9) can vary depending on the equipment installed.
7	Unfasten electrical wiring harnesses (9) from stowage tray (8) bracket
8	Remove bolts (5)
9	Remove cover (6)
10	Close inside cover of the armrest (1)
11	Fold in armrest (1)
12	Remove bolts (7)
13	Remove screws/bolts (4)
14	Unclip rear center seat cushion (3) and remove
15	Pull armrest (1) forward until the electrical wiring harnesses (9) can be taken out of the armrest (1)
16	Remove electrical wiring harnesses (9) from the armrest (1)	The number of electric wiring harnesses (9) can differ depending on the equipment installed.
17	Remove armrest (1)	Carefully remove armrest (1) from the vehicle. Otherwise components in vehicle interior or at rear doors could become damaged.
18	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
