Lift/jack up vehicle - AR00.60-P-1000LF
MODEL 217, 222
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident caused by vehicle starting off on its own when jacked up. Risk of injury caused by rotating parts when working on running engine or drive train. | Ensure that jack stands are in a safe condition. An authorized person must occupy the driver's seat. Wear closed and close-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0008-01A | |
| Lift/lower vehicle | |||
| 1 | Secure vehicle on vehicle lift | When removing major assemblies (e.g. engine, transmission, axles) | AR00.60-P-0100CW |

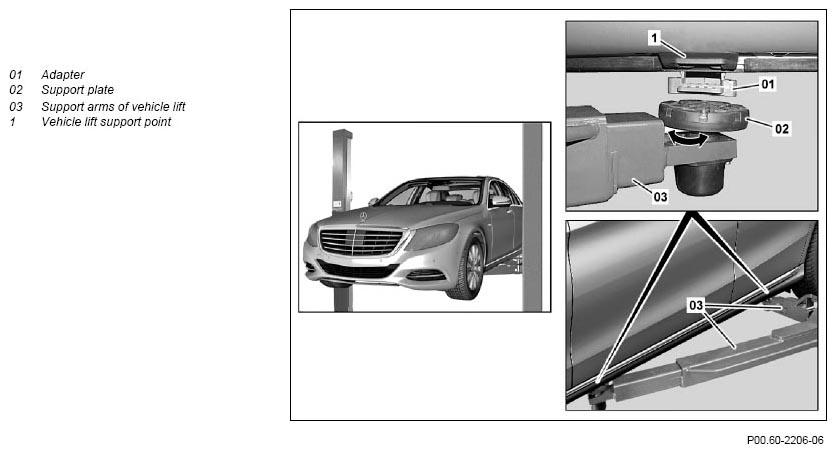

| 2 | Clip adapter (01) into vehicle lift support points (1) at longitudinal members | When removing underfloor paneling |
Fig 3 |
| 3 | Adjust support plates (02) of support arms of vehicle lift (03) to height of vehicle | ||
| 4 | Raise vehicle with vehicle lift | ||
| 6 | Lower vehicle in reverse order | ||
| Jack up/lower vehicle | |||

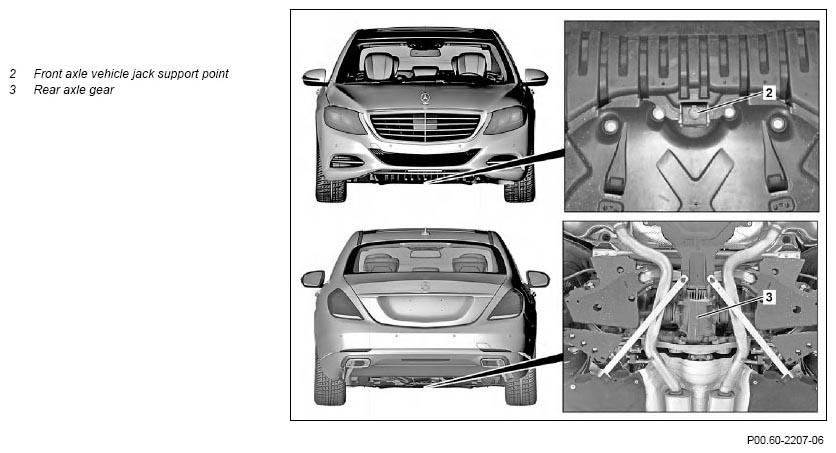

| 7 | Lift vehicle with inspection pit lift or floor jack | Only position post of inspection pit lift or floor jack at front axle vehicle jack support point (2) or at rear axle differential (3). Otherwise damage to axles, major assemblies or the body may occur. |
|
| 8 | Secure the vehicle against tilting and toppling | ||
| 9 | Lower vehicle in reverse order |
