Remove/install emergency fresh air system sensor - AR86.10-P-0153LFS
MODEL 222
with CODE Z25 (Emergency fresh air system with equipment carrier plate)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||

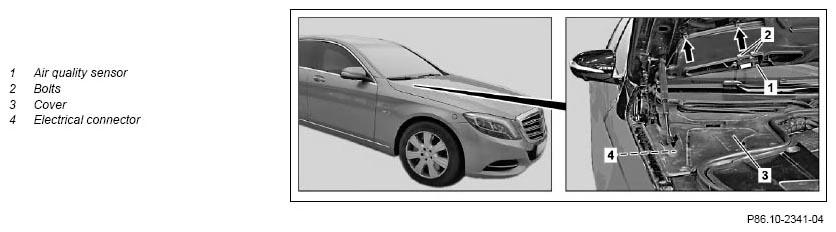

| 2 | Remove cover (3) | ||
| 3 | Disconnect electrical connection (4) | ||
| 4 | Remove screw/bolts (2) | ||
| 5 | Open cover on engine hood (arrows) | ||
| 6 | Remove air quality sensor (1) | Prevent pinching or kinks when routing electrical wiring harness for air quality sensor (1). Otherwise the electrical subharness can be damaged. |
|
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check emergency fresh-air system |
