Check extinguishing agent tank - AP86.10-P-8656A
MODEL 222
with CODE Z07 (Top protection)
with CODE Z21 (Fire extinguishing system)

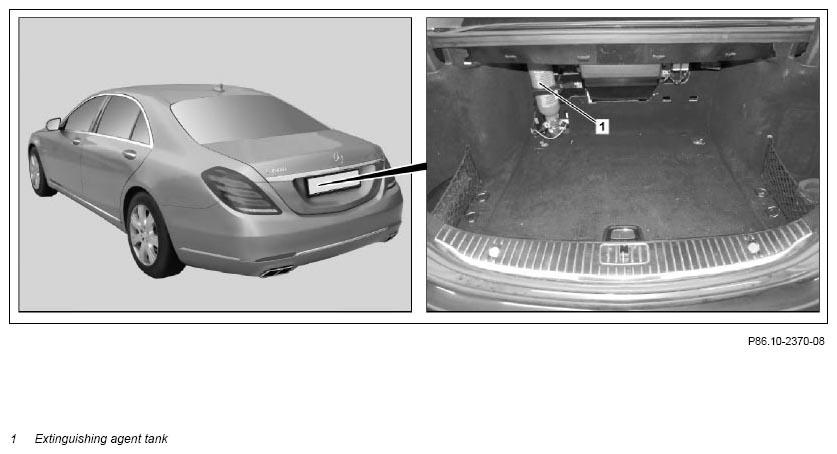

Shown on model 222.176 with code Z07 (Highest protection) with code Z21 (Fire extinguishing system)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on aerosol extinguishing agent tank | AH86.10-P-0001-02A | ||
| Notes on disposing of aerosol extinguishing agent tank | AH86.10-P-0001-05A | ||
| Remove | |||
| 1 | Remove extinguishing agent tank (1) | Model 222 with code Z07 (Top protection) with code Z21 (Fire extinguishing system) |
|
| Model 222.1 with code Z07 (Top protection) with code Z21 (Fire extinguishing system) |
AR86.10-P-0100LFS | ||
| Check | |||
| 2 | Check gross weight of extinguishing agent tank (1) | If the gross weight deviates from the printed weight by more than 50 g ↓ Replace extinguishing agent tank (1) subject to separate repair order. |
|
| 3 | Check extinguishing agent tank (1) for external damage | If complaint present ↓ Replace extinguishing agent tank (1) subject to separate repair order. |
|
| Install | |||
| 4 | Install extinguishing agent tank (1) | Model 222 with code Z07 (Top protection) with code Z21 (Fire extinguishing system) |
|
| Model 222.1 with code Z07 (Top protection) with code Z21 (Fire extinguishing system) |
AR86.10-P-0100LFS |
