Check emergency fresh air system - AP86.10-P-8654A

MODEL 222

with CODE Z07 (Top protection)

with CODE Z25 (Emergency fresh air system with equipment carrier plate)

Shown on model 222.176

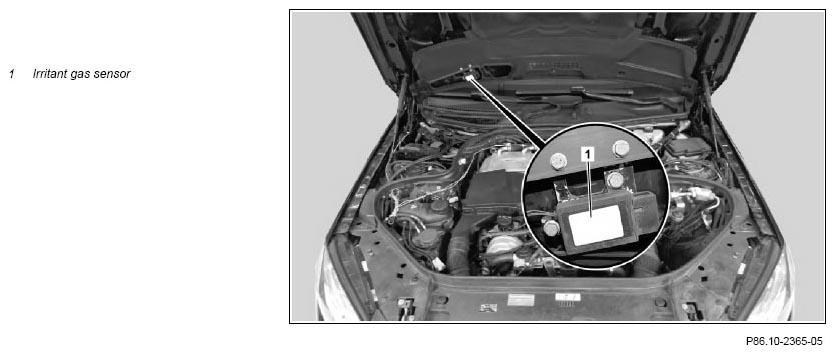

Fig 1: Identifying Irritant Gas Sensor - Shown On Model 222.176

Courtesy of MERCEDES-BENZ USA

Shown on model 222.176

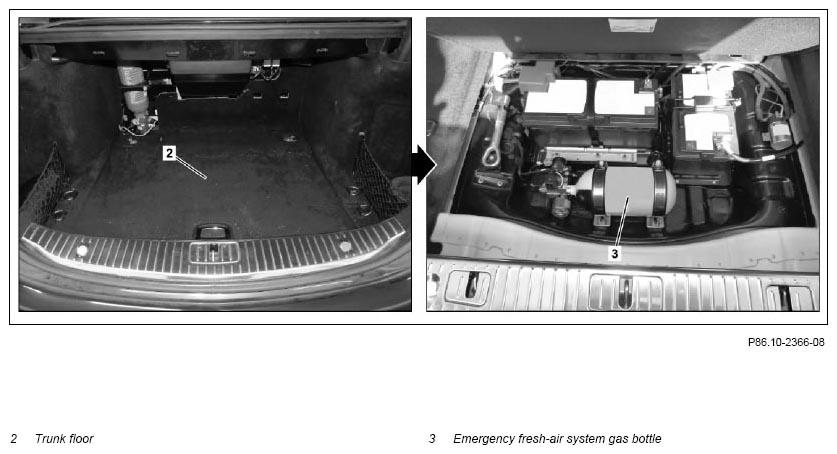

Fig 2: Identifying Truck Floor And Emergency Fresh Air System Gas Bottle - Shown On Model 222.176

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by flying parts if pressurized gas cylinders or their valves are damaged. Risk of injury  of body parts caused by "breathing gas" streaming out or by coming into contact with components near the valve. Risk of injury  of skin and body parts caused by "breathing gas" streaming out under high pressure	Work may only be done by instructed personnel. Wear protective clothing, hearing protection, safety gloves, safety glasses and face mask.	AS86.10-Z-0001-01A
	Notes on preventing damage to emergency fresh air system of special protection vehicles.		AH86.10-P-0002-01A
	Preparatory activity
1	Open engine hood and trunk lid
2	Open trunk floor (2)
	Check
3	Check irritant gas sensor (1) for correct seating, cracks, deformation and soiling	If complaint present ↓ Rectify problem subject to separate repair order.
4	Check manufacture date of emergency fresh air system gas bottle (3)	If the emergency fresh air system gas bottle (3) is older than 10 years. ↓ Replace emergency fresh air system gas bottle (3) subject to separate repair order.
5	Read off reservoir pressure on emergency fresh air system gas bottle (3)	Model 222 with code Z07 (Top protection) with code Z25 (Emergency fresh air system with equipment carrier plate) reservoir pressure If complaint present ↓ Rectify problem subject to separate repair order.	*BF86.10-P-1001-01A
6	Check visible systems, components, lines, hoses of emergency fresh air system for damage, routing, leaks, correct mounting and corrosion	If complaint present ↓ Rectify problem subject to separate repair order.
7	Carry out self-test of emergency fresh-air system	If complaint present ↓ Rectify problem subject to separate repair order.	AP86.10-P-8654-03A
	Finishing activity
8	Close trunk floor (2)
9	Close engine hood and trunk lid
