Overview of system components for gasoline injection and ignition system with direct injection - GF07.70-P-9998MMT
ENGINE 276.8 in MODEL 217, 222

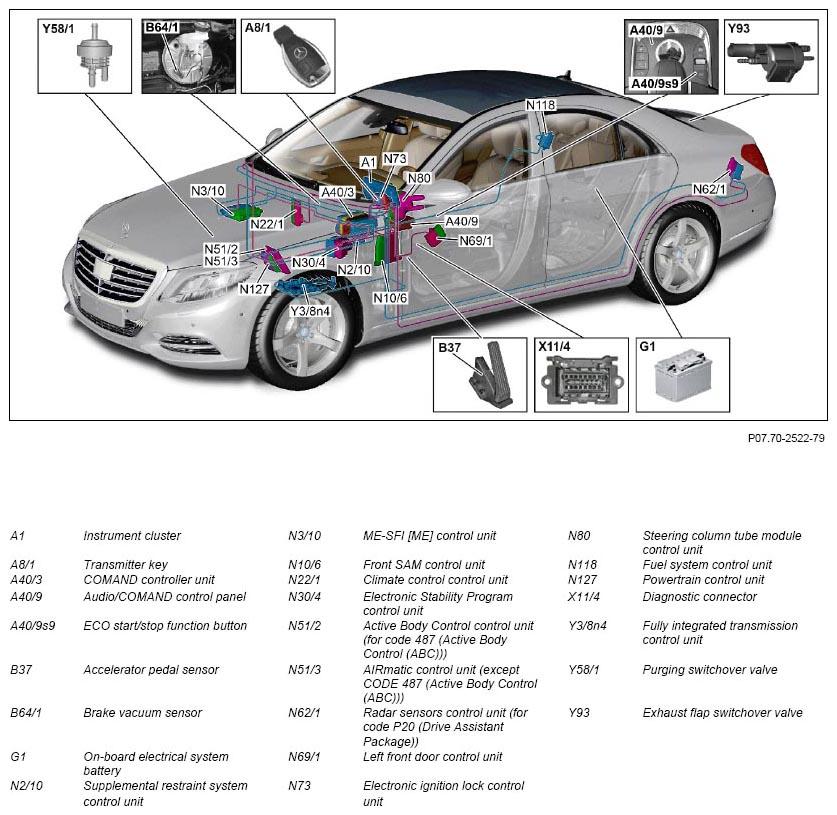

Vehicle view model 222 (except model 222.163)

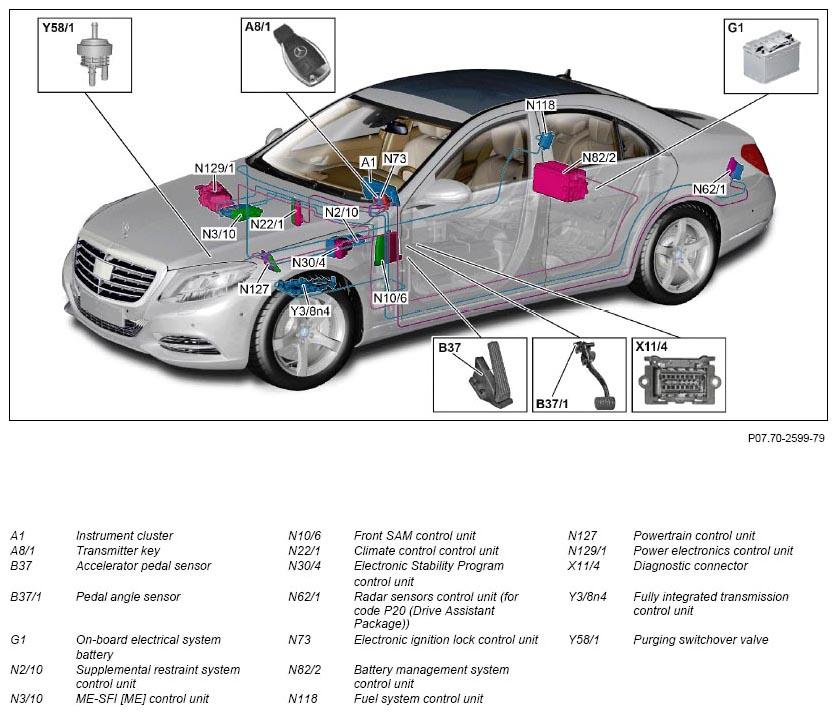

Vehicle view of model 222.163

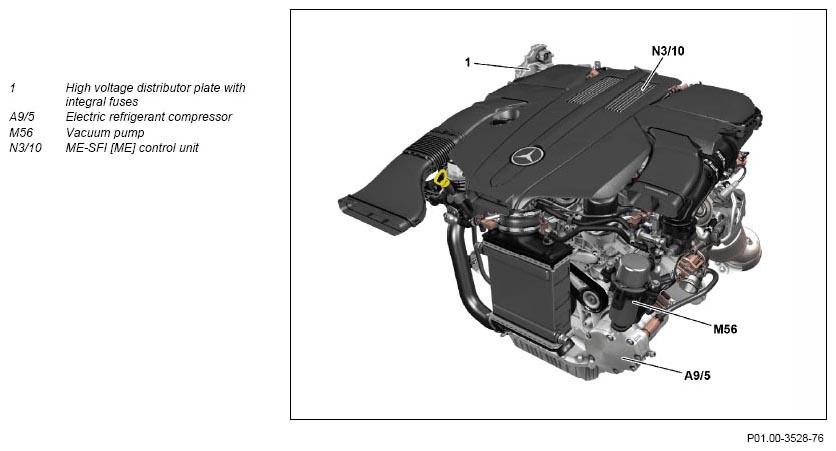

View of engine from the front left (for model 222.163)

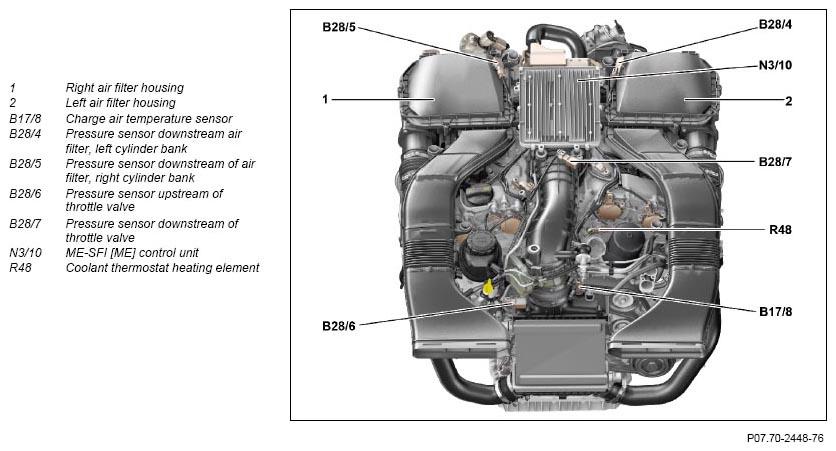

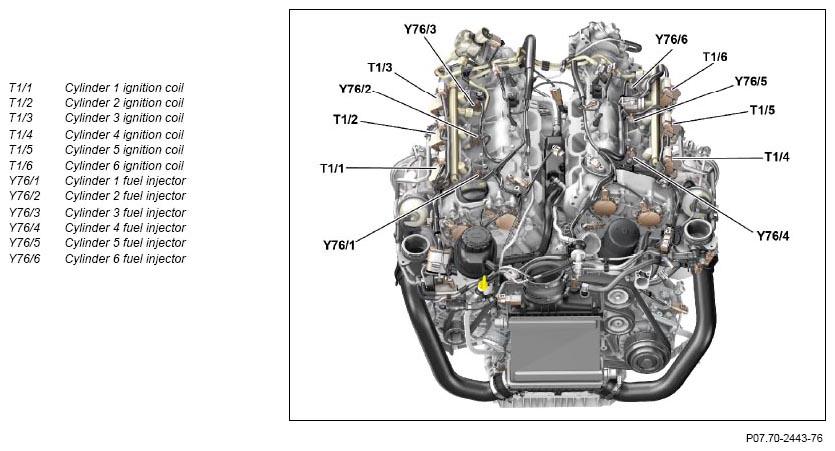

View of engine from front above (except model 222.163)

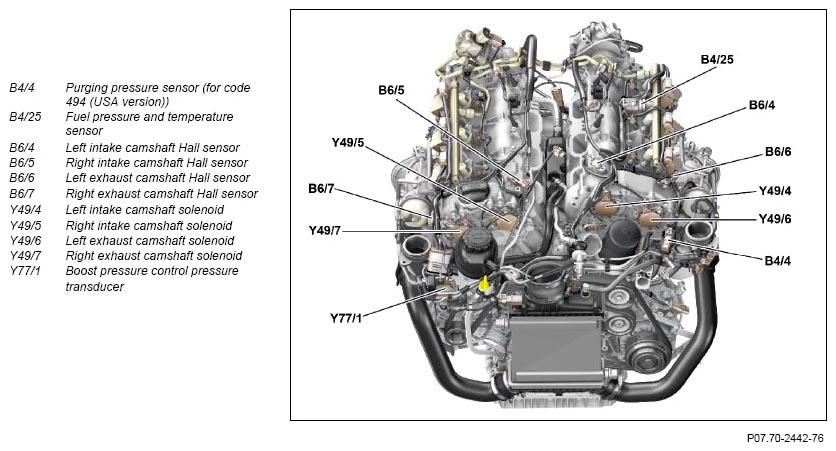

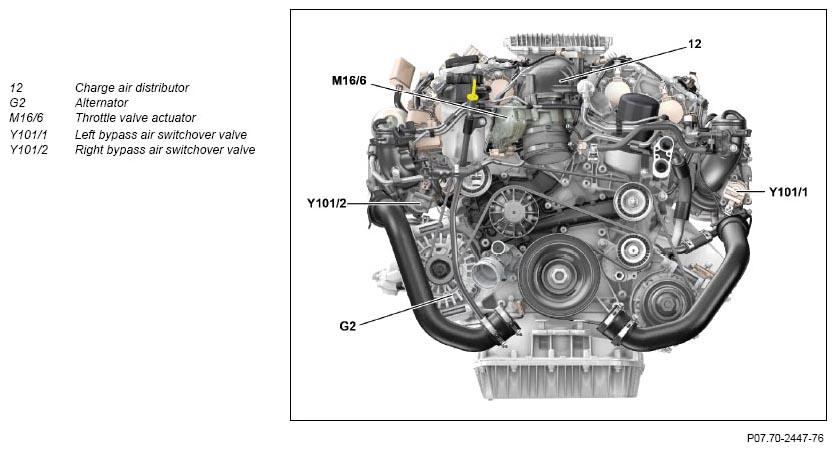

View of engine from front (except model 222.163)

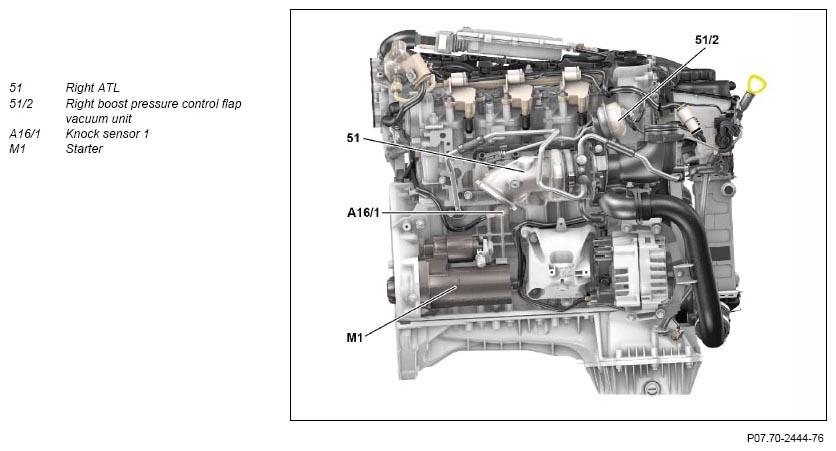

View of engine from right (except model 222.163)

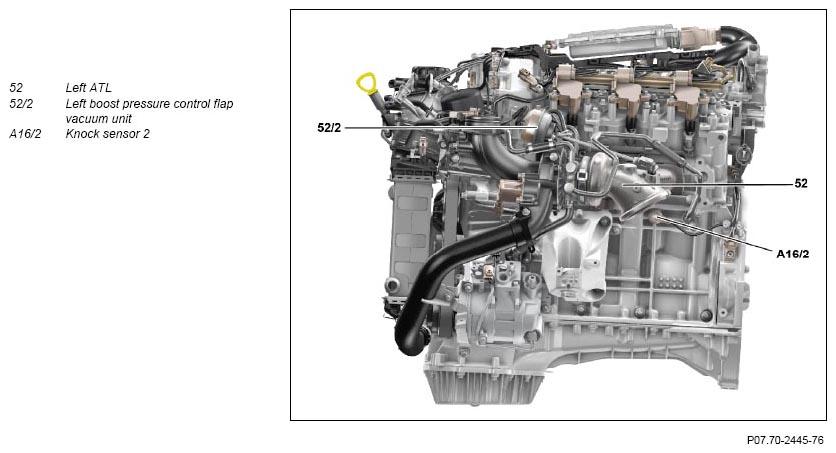

View of engine from left (except model 222.163)

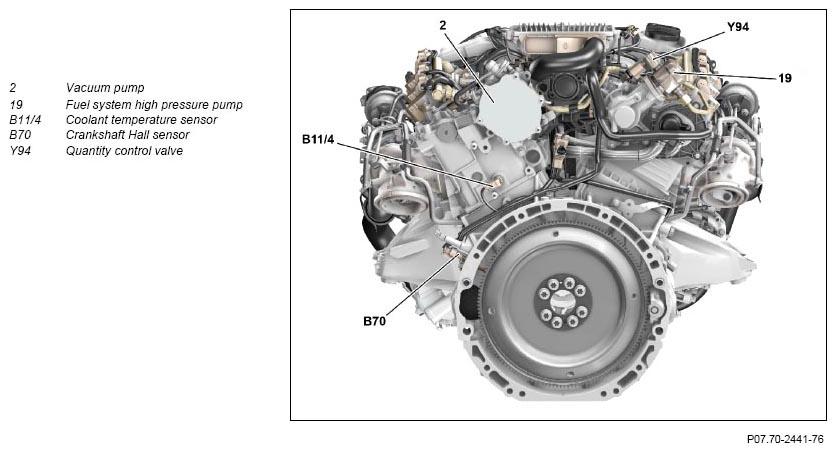

View of engine from rear (except model 222.163)

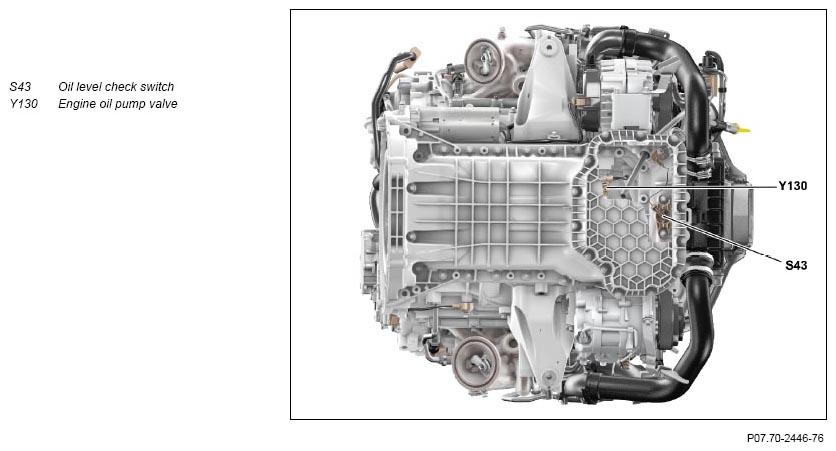

View of engine from below (except model 222.163)

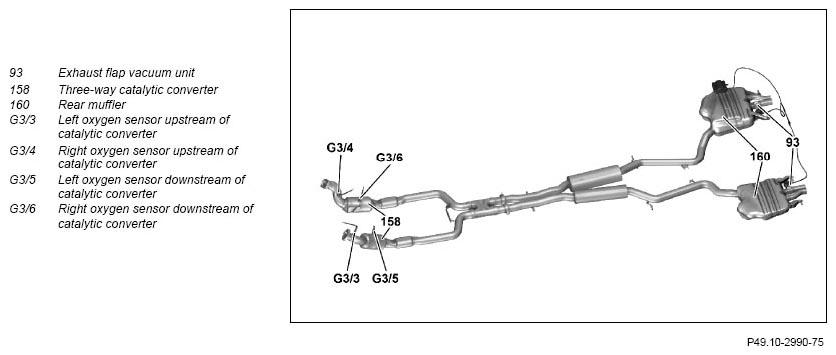

Shown: exhaust system (for model 222)

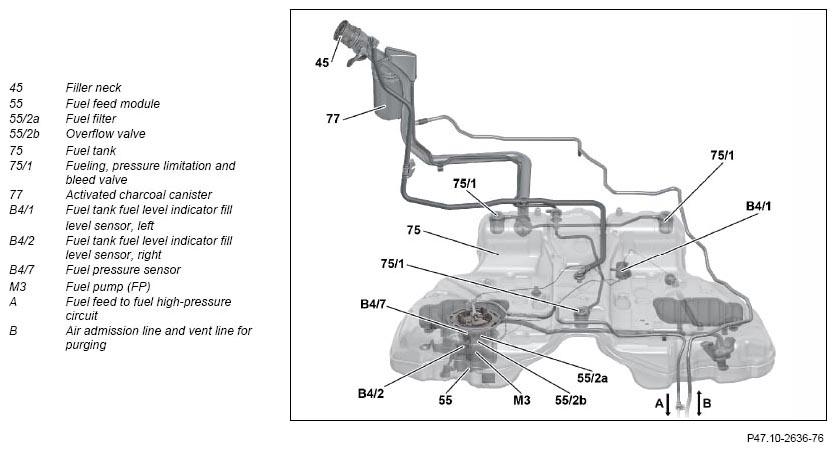

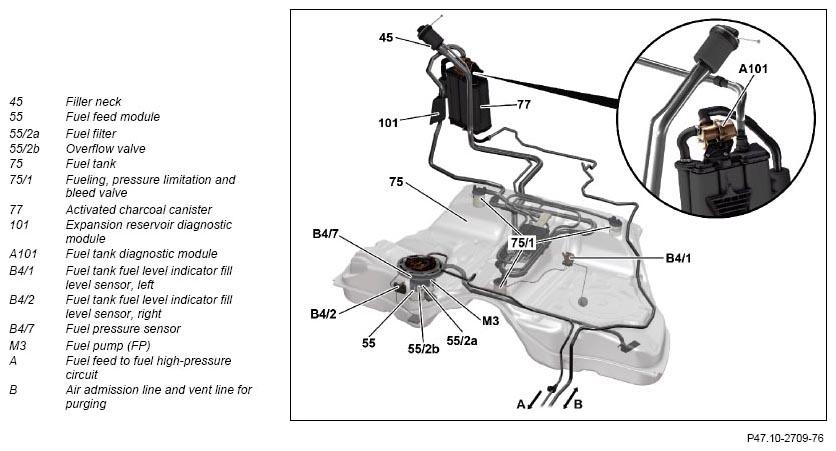

Phantom view of the fuel tank (except code 494 (USA version))

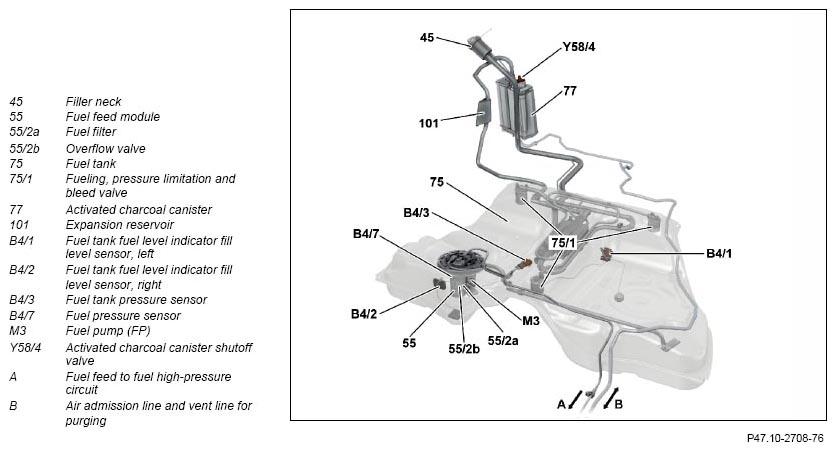

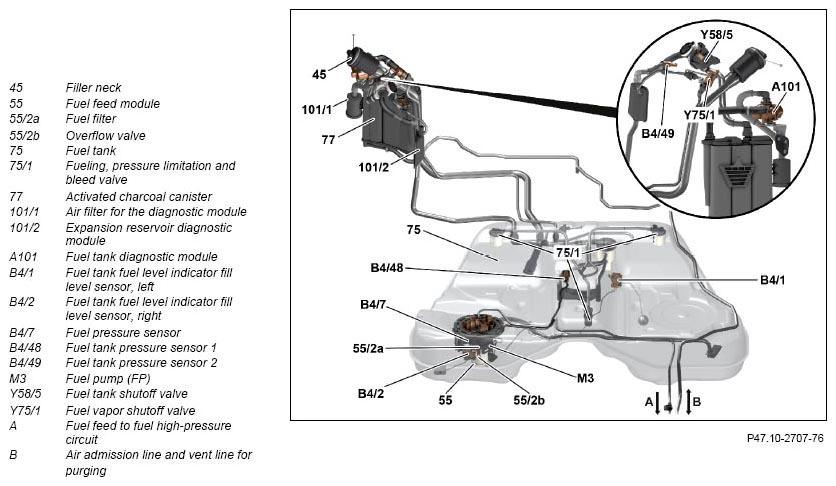

Fuel tank phantom view (for code 494 (USA version) up to model year 2016 except model 222.163)
Phantom view of fuel tank (model 222.163 with code 494 (USA version))

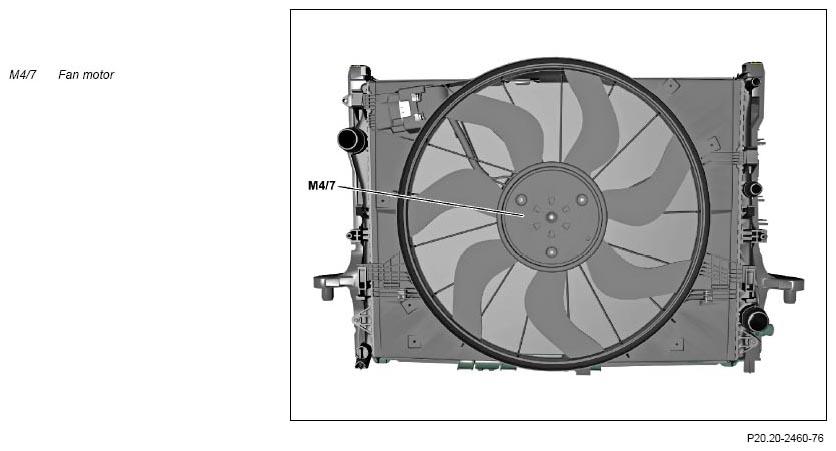

View of the radiator from the rear

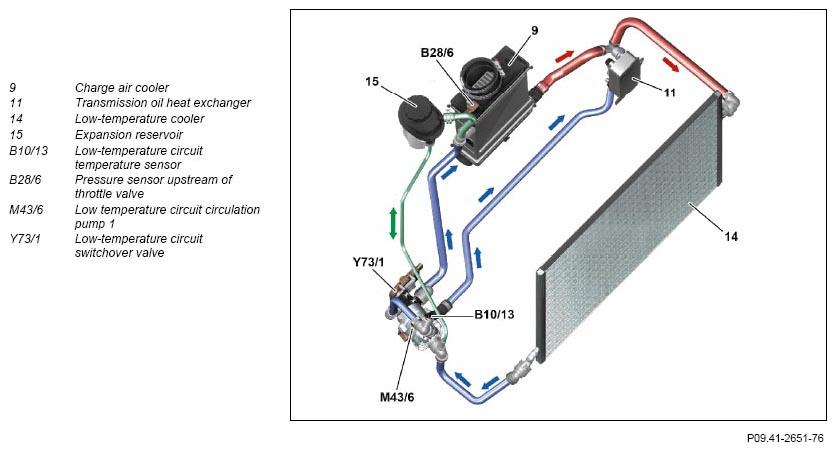

View of low-temperature circuit with charge air cooler

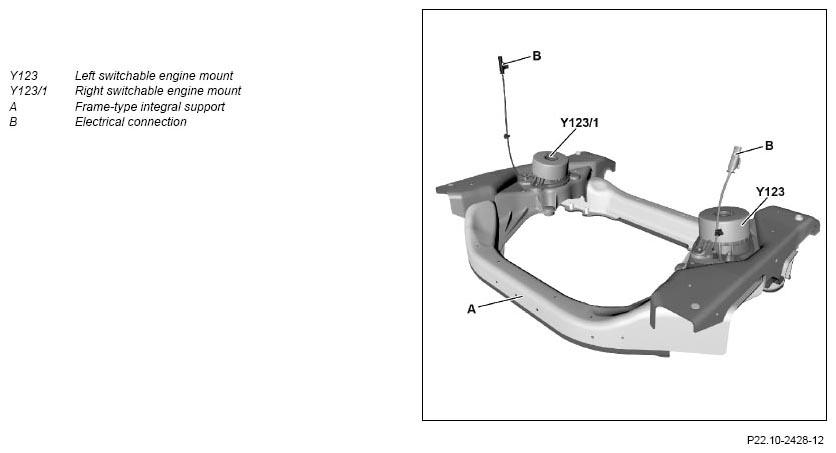

View of integral carrier

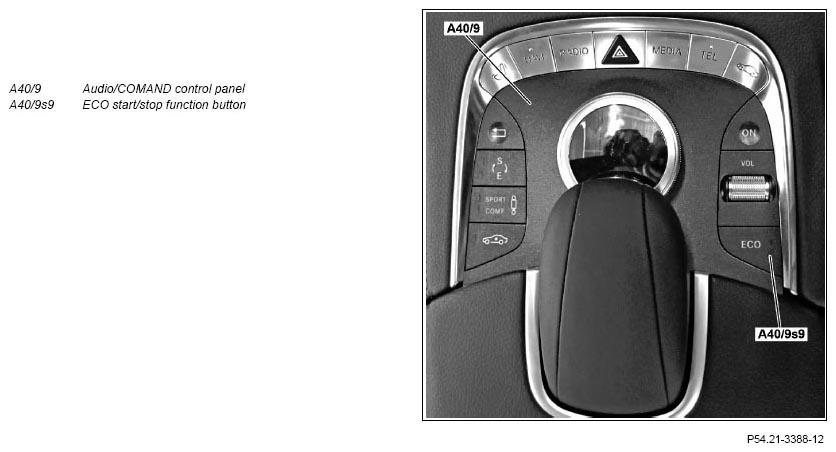

View of Audio/COMAND control panel in the center console from above (except model 222.163)

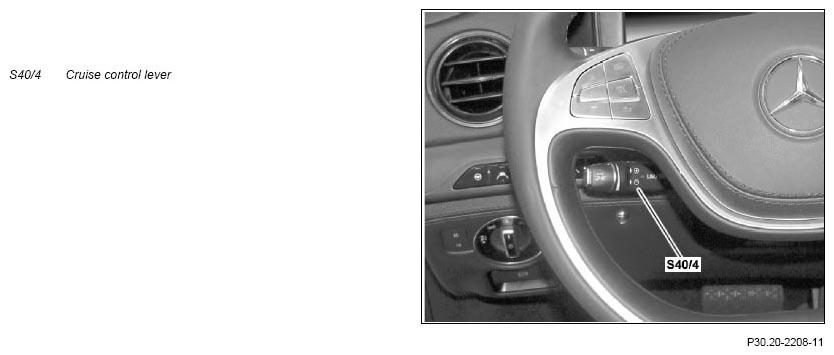

View of steering wheel

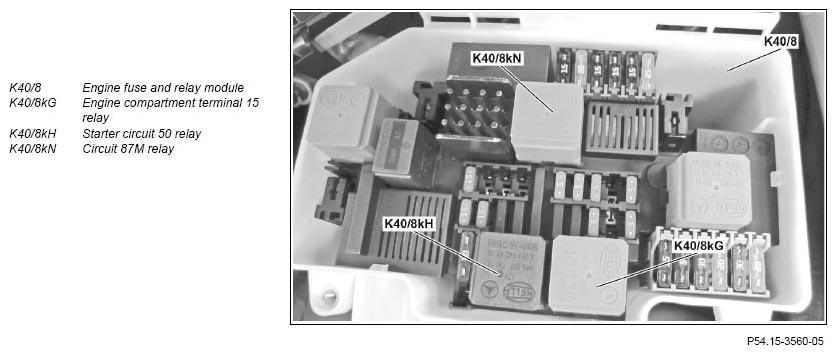

View of engine fuse and relay module in engine compartment at the rear left

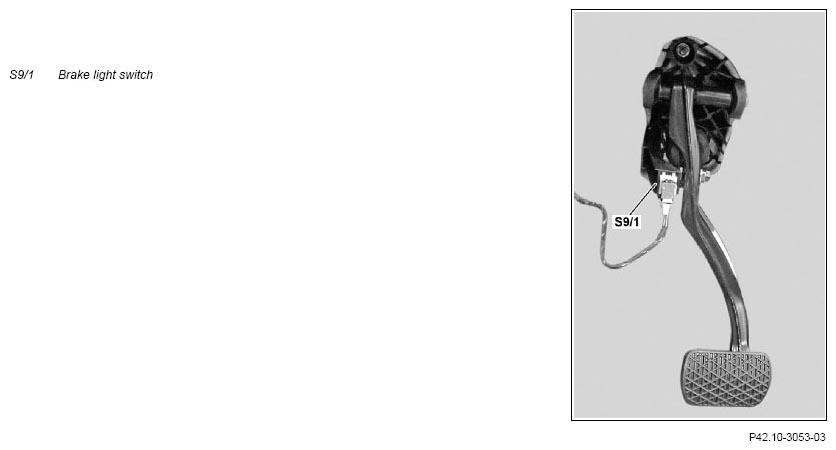

View of brake pedal (except model 222.163)

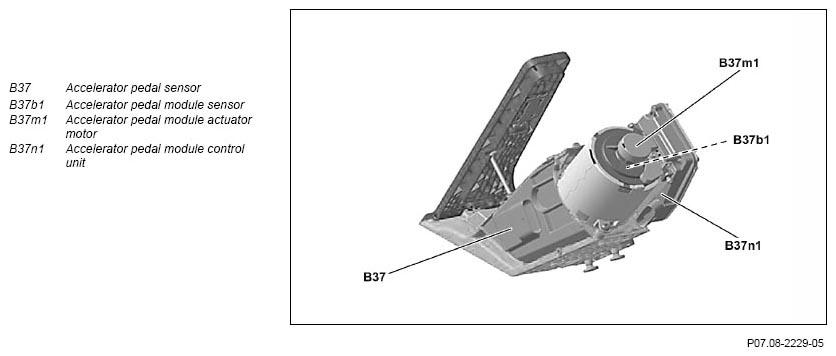

View of accelerator pedal module (for model 222.163)
| Component description for instrument cluster | A1 | GF54.30-P-6000LF | |
| Component description for COMAND controller unit | A40/3 | GF82.85-P-3136LF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501LF | |
| Accelerator pedal module control unit, component description | Engine 276.8 in model 222.163 B37n1 | GF07.08-P-2000MMK | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MMT | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Climate control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Component description for Electronic Stability Program control unit | Model 217, 222 (except 222.163) with engine 276.8 N30/4 | GF42.45-P-5119LF | |
| Model 222.163 with engine 276.8 N30/4 | GF42.45-P-5119LFH | ||
| ABC control unit, component description | Model 217, 222 with engine 276.8 with code 487 (Active Body Control (ABC)) N51/2 | GF32.50-P-4501LF | |
| AIRmatic control unit, component description | Model 217, 222 with engine 276.8 except code 487 (Active Body Control (ABC)) N51/3 | GF32.22-P-5109LF | |
| Component description for radar sensors control unit | Model 217, 222 with engine 276.8 with code P20 (Driving Assistance package) N62/1 | GF30.30-P-3301LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051LF | |
| Component description for battery management system control unit | Model 222.163 with engine 276.8 N82/2 | GF54.10-P-3012LFH | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MMK | |
| Drivetrain control unit, component description | Engine 276.8 in model 217, 222 (except 222.163) N127 | GF54.21-P-2141LF | |
| Engine 276.8 in model 222.163 N127 | GF54.21-P-2141MMK | ||
| Component description for power electronics control unit | Model 222.163 with engine 276.8 N129/1 | GF08.20-P-1001LFH | |
| Component description for fully integrated transmission control unit | Transmission 722.9 in model 217, 222 with engine 276.8 Y38n4 |
GF27.60-P-5165AHB | |
| Transmission 724.2 in model 222.163 with engine 276.8 Y38n4 |
GF27.60-P-5165LFH | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MMK |
