Remove/install low-temperature circuit expansion reservoir - AR09.41-P-0001LFA
ENGINE 276.8 in MODEL 217, 222
MODIFICATION NOTES
| 17.11.15 | Pull out low-temperature circuit expansion reservoir (4) upwards from the carrier (5). | Operation step 8 modified |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove upper engine cover | ||
| 3 | Remove right engine air intake duct | ||
| 4 | Slowly open cap (1) on low-temperature circuit expansion reservoir (4) and remove it | ||

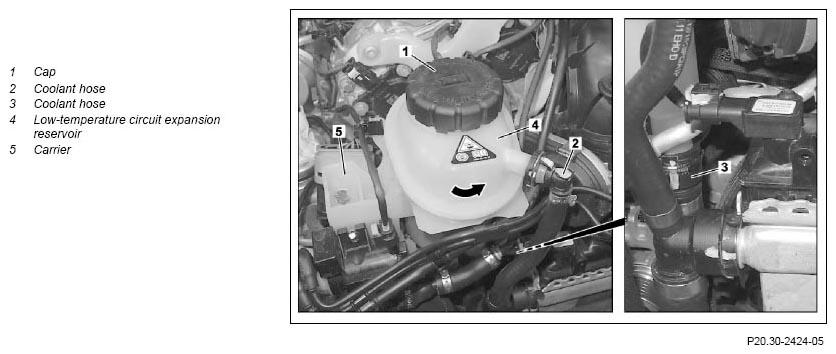

| 5 | Suction coolant out of low-temperature circuit expansion reservoir (4) | Fig 3 | |
| 6 | Detach coolant hose (2) from low-temperature circuit expansion reservoir (4) | ||
| 7 | Detach coolant hose (3) from low-temperature circuit expansion reservoir (4) | Fig 2 | |
| 8 | Pull out low-temperature circuit expansion reservoir (4) upwards from the carrier (5) | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check coolant level and correct if necessary | AR20.00-P-1142LF | |
| 11 | Check cooling system for leaktightness | AR20.00-P-1010LF | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run and check the cooling system for proper operation and for leaktightness |
