Remove/install charge air ducts - AR09.41-P-8620LFA
ENGINE 276.8 in MODEL 217, 222
Shown on engine 276.8 without code ME05 (HD 80KW-variants (INCLUDING PLUGIN))
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove right and left engine air intake duct upstream of air filter | ||
| 3 | Remove screw/bolt (4) and take out clamp | *BA09.41-P-1006-01R | |
| 4 | Remove screw/bolt (3) | ||
| 5 | Loosen clamps (2) | ||

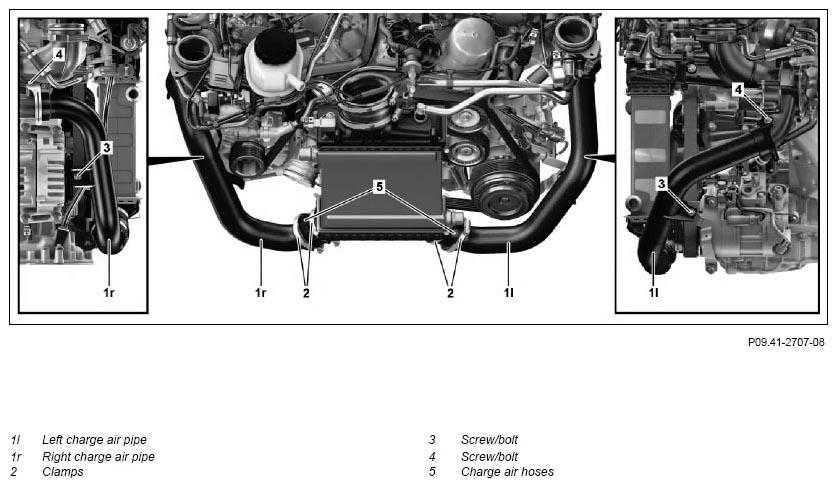

| 6 | Detach charge air pipe on the right and left (1r, 1l) from ATL and charge air cooler | Figure | |
| 7 | Remove right and left charge air pipe (1r, 1l) from engine compartment | ||
| 8 | Detach charge air hose (5) from right or left charge air pipe (1r, 1l) | When replacing the right and left charge air pipe (1r, 1l). | |
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check boots, seals and clamps for damage and replace if necessary | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.41-P-1006-01R | Screw/bolt, charge air pipe to turbocharger | Nm | 9 |
